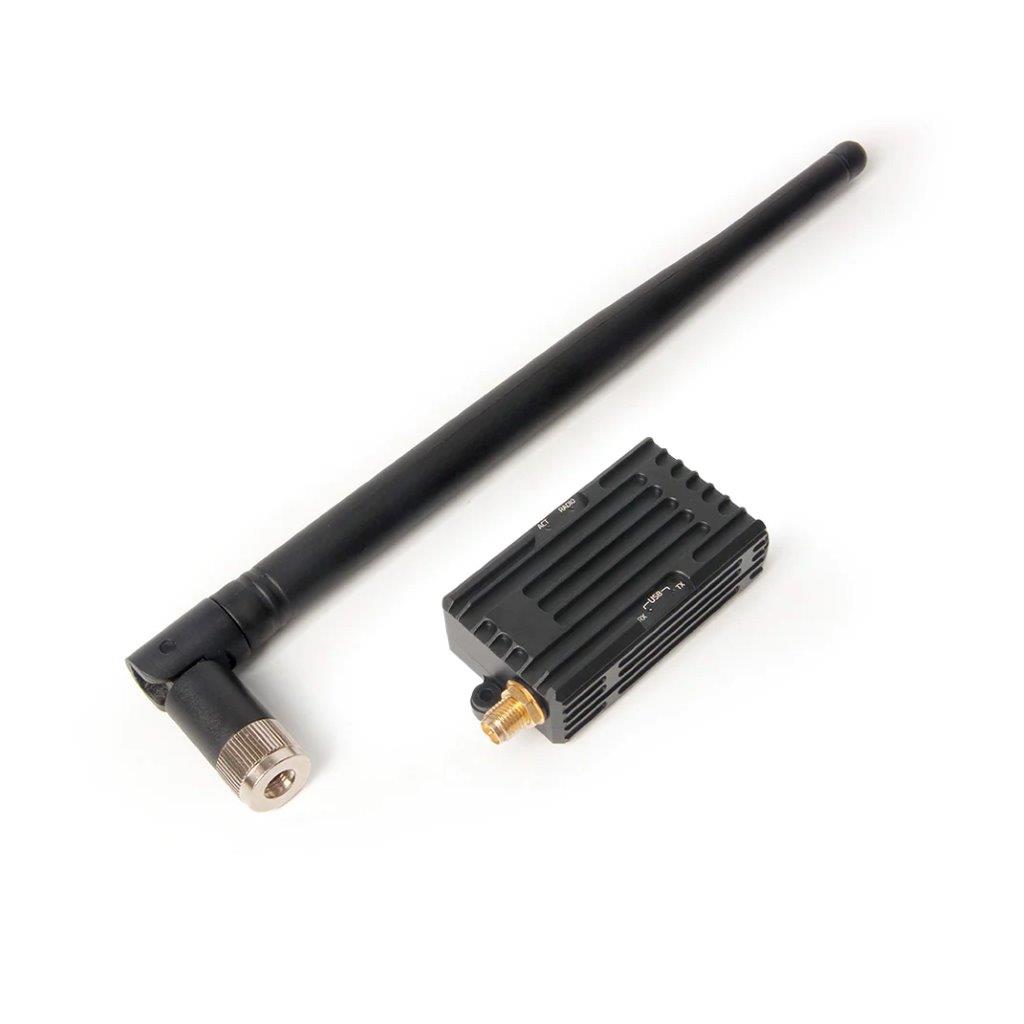

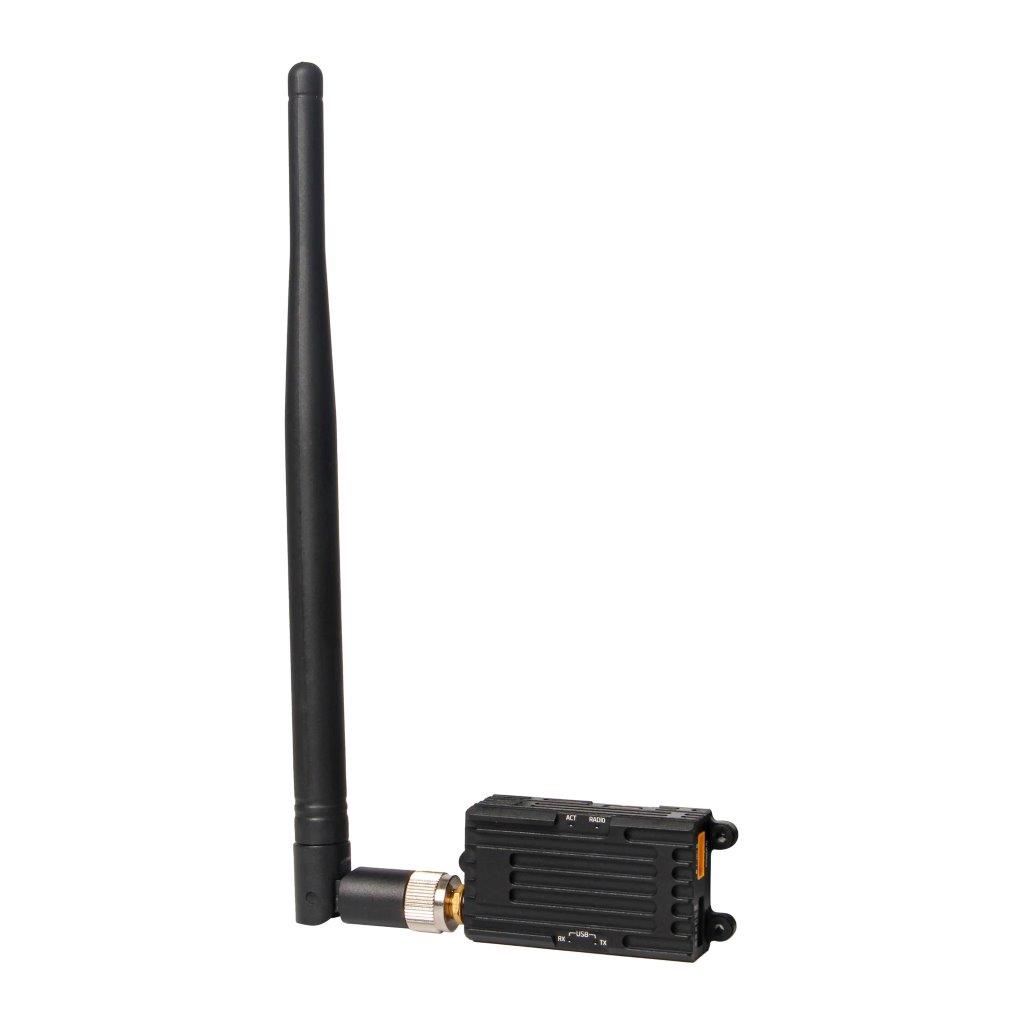

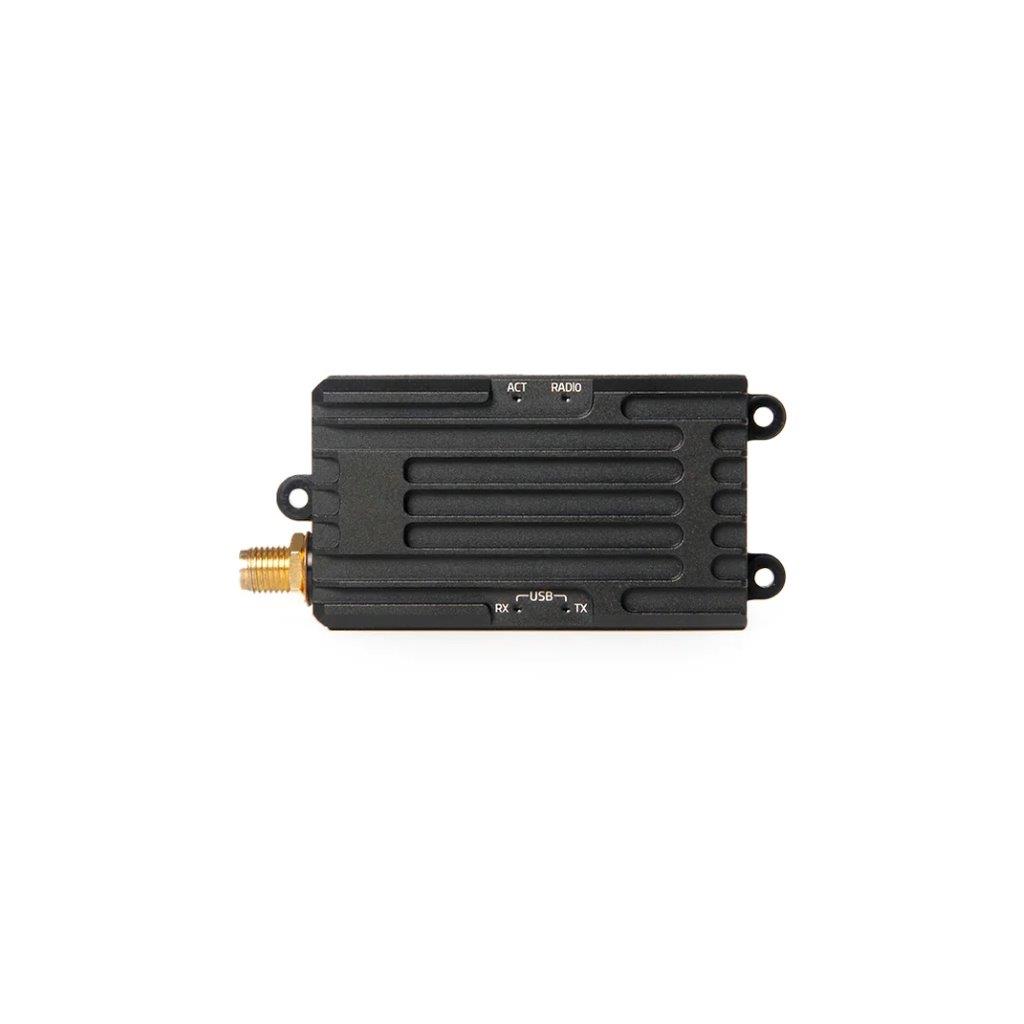

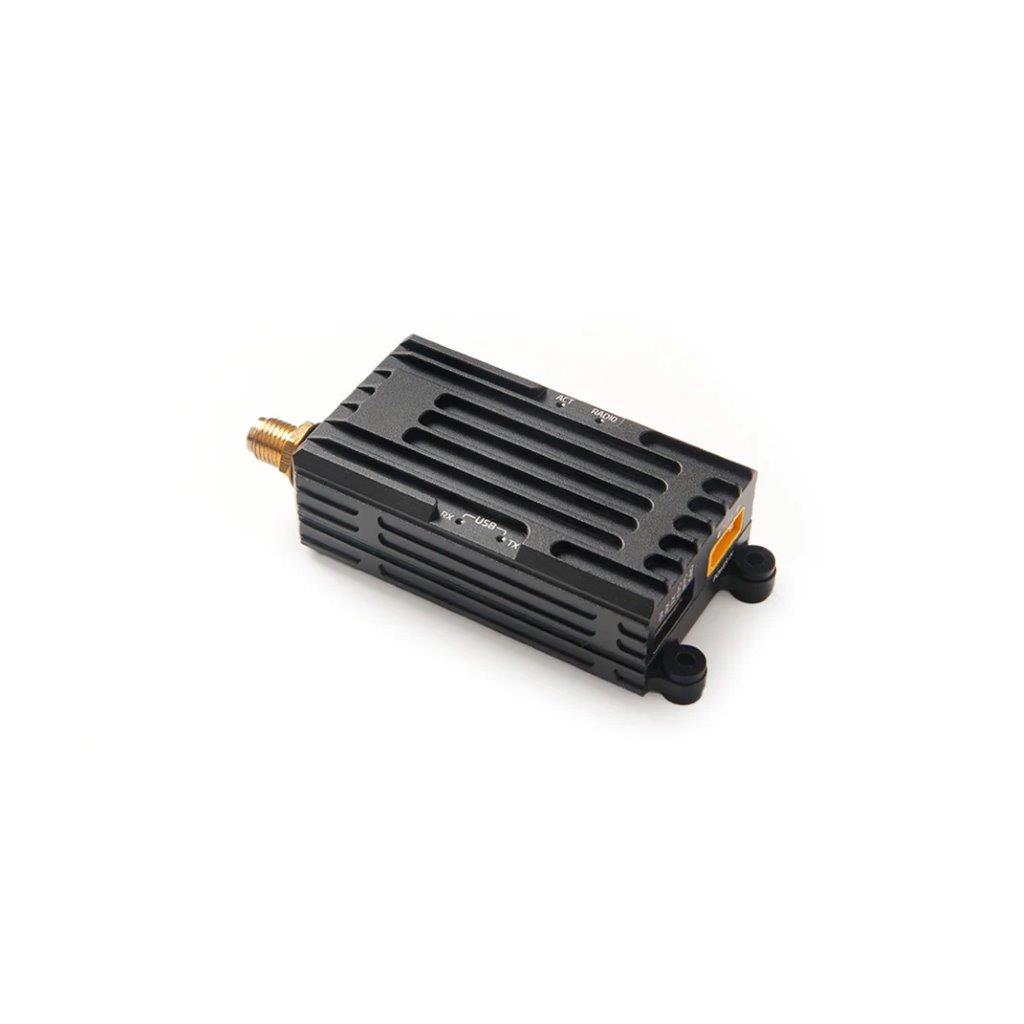

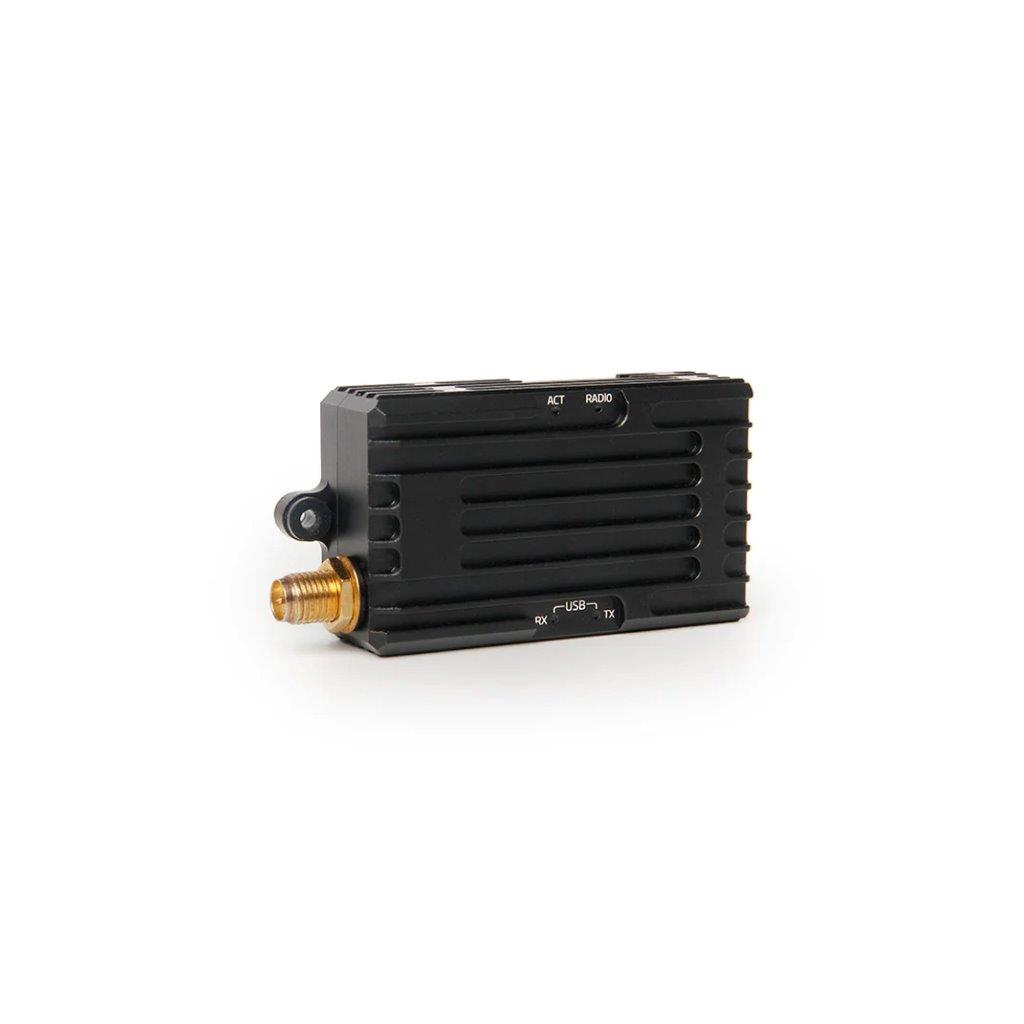

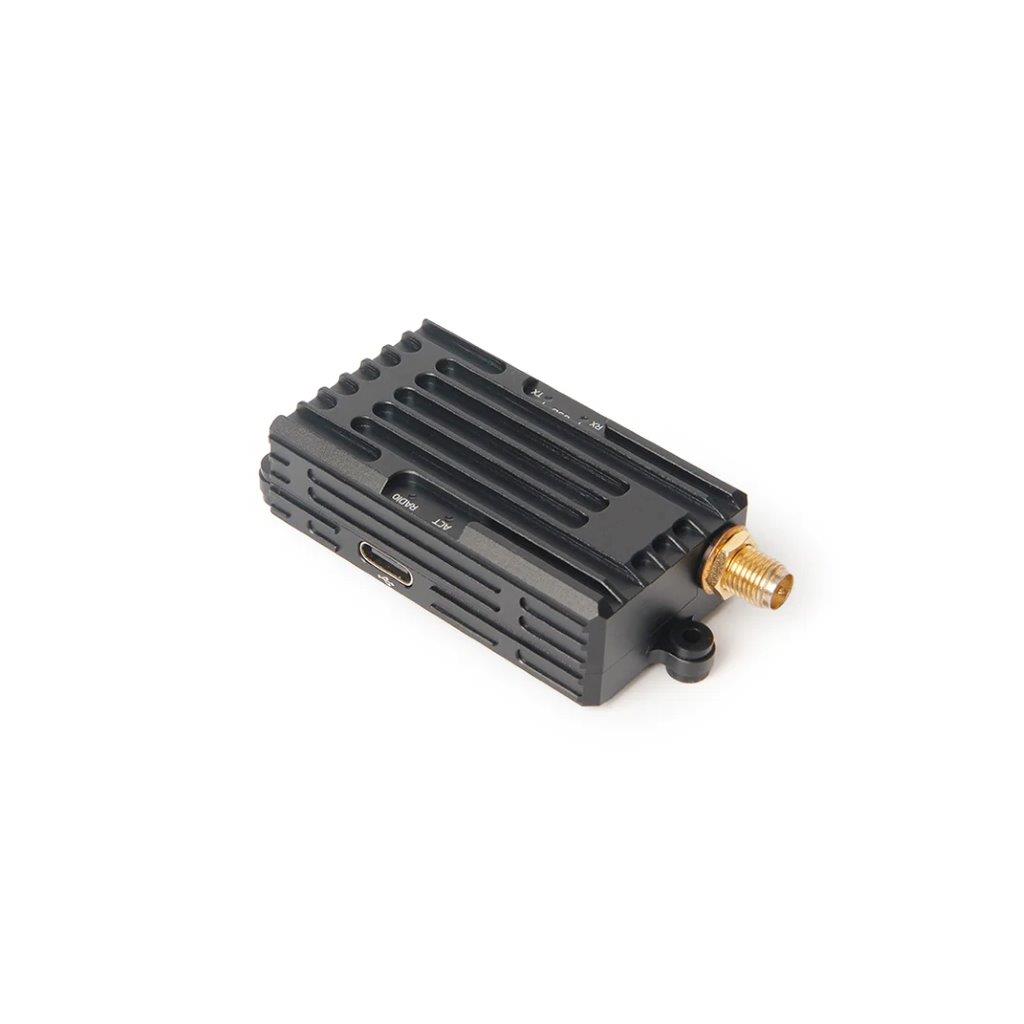

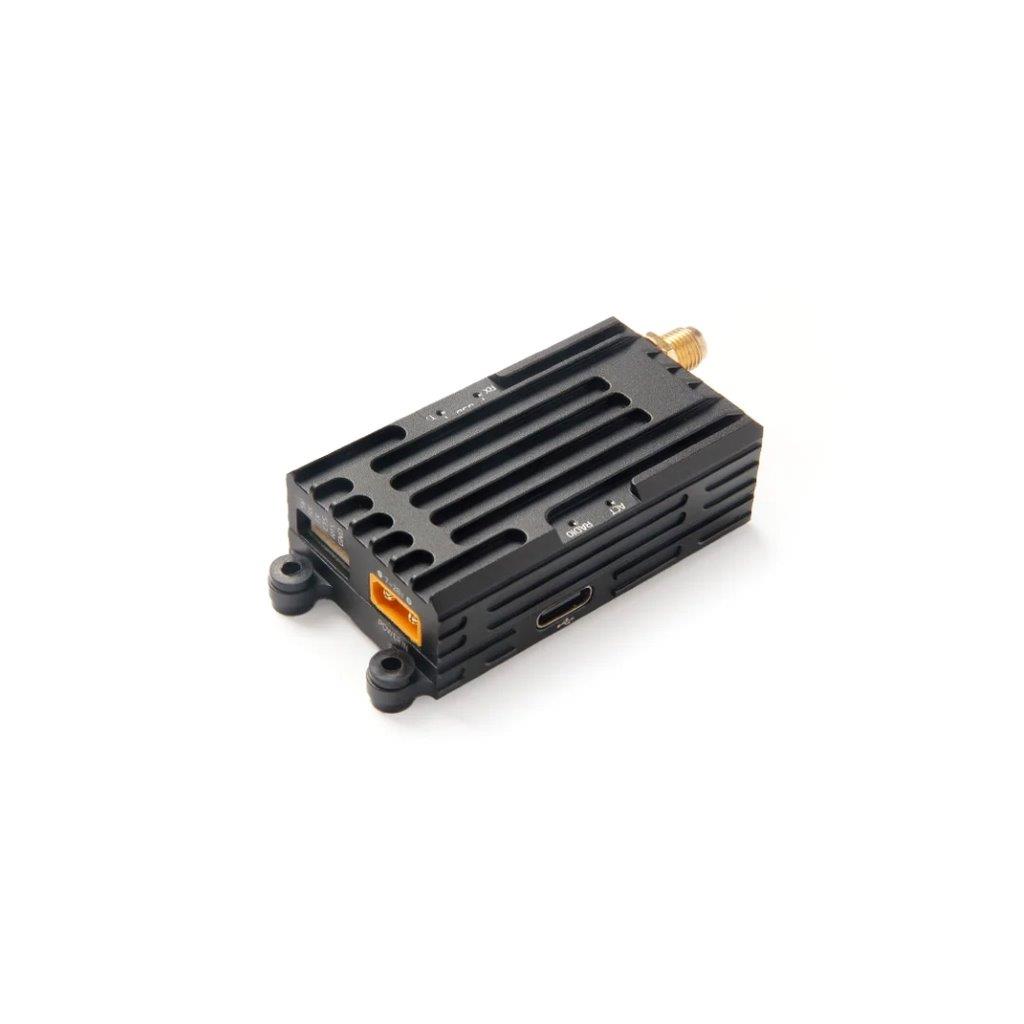

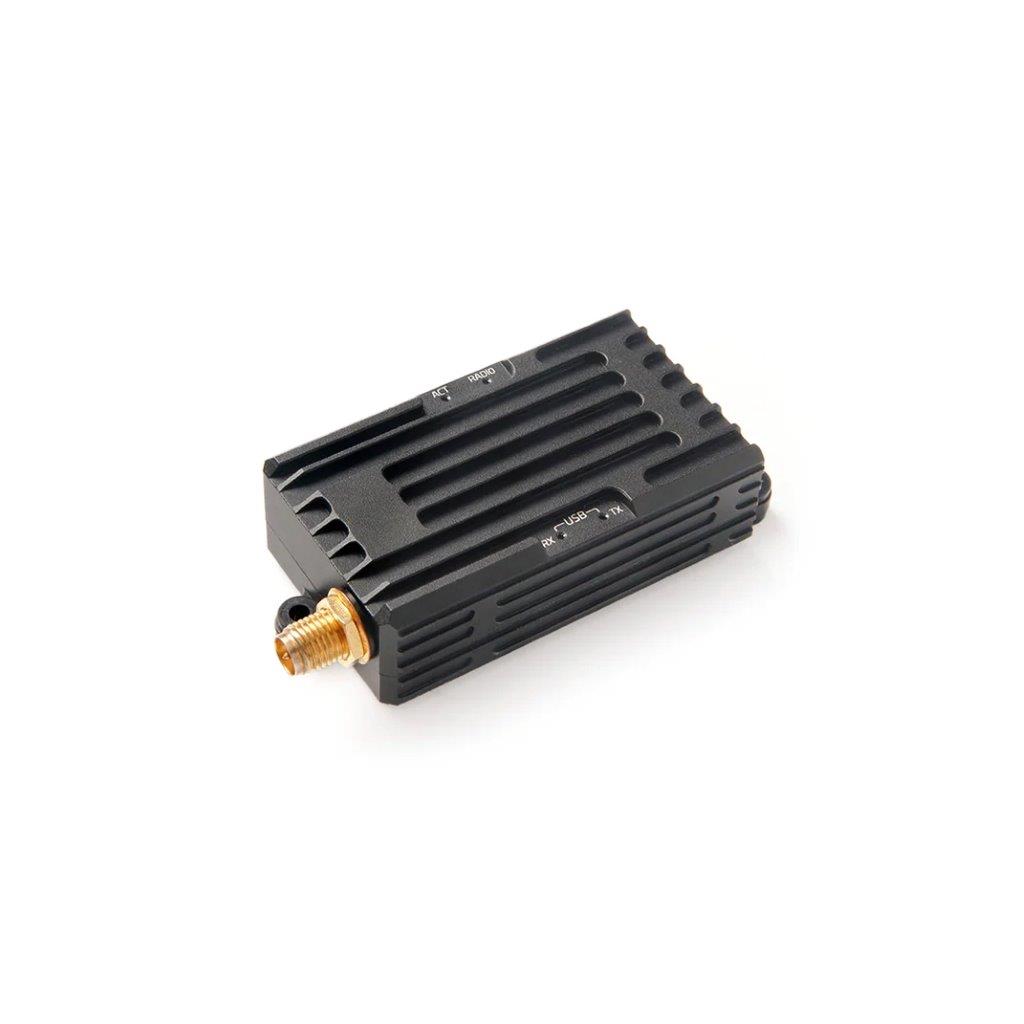

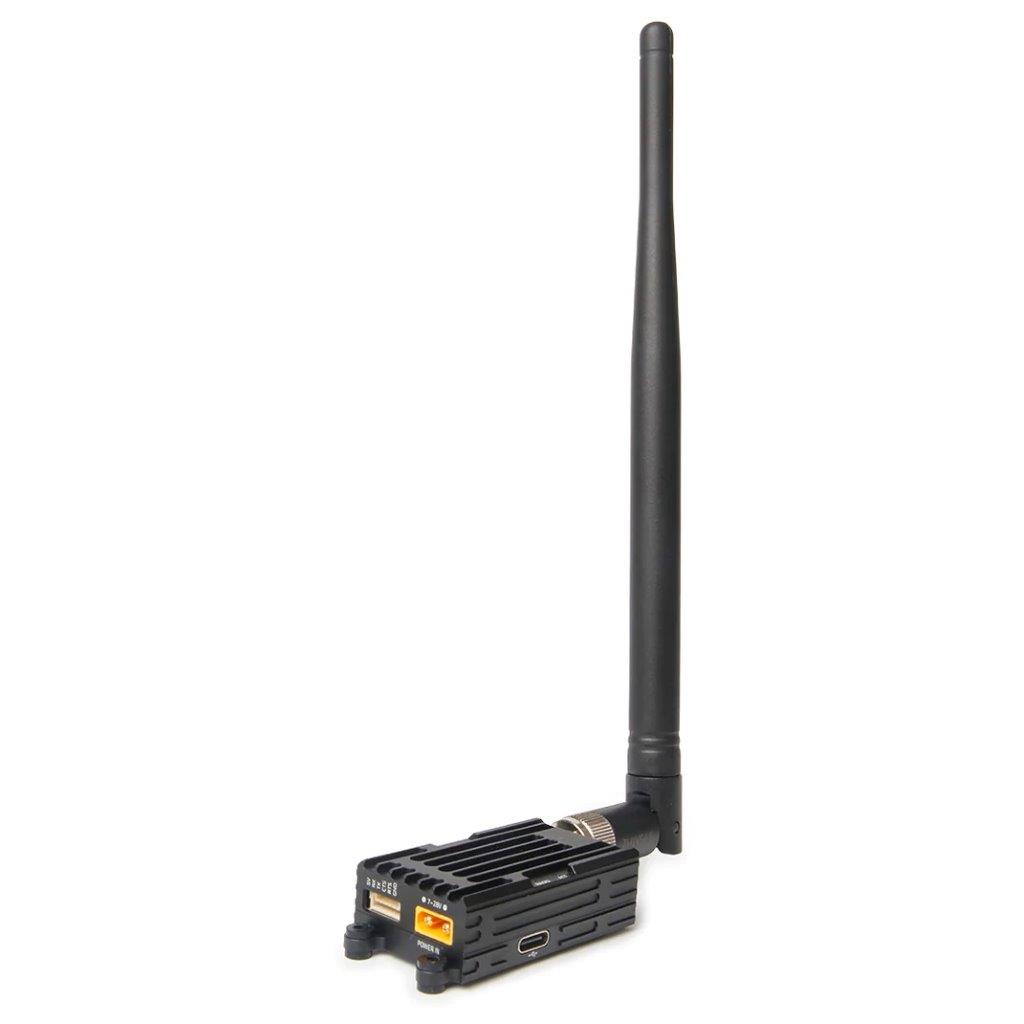

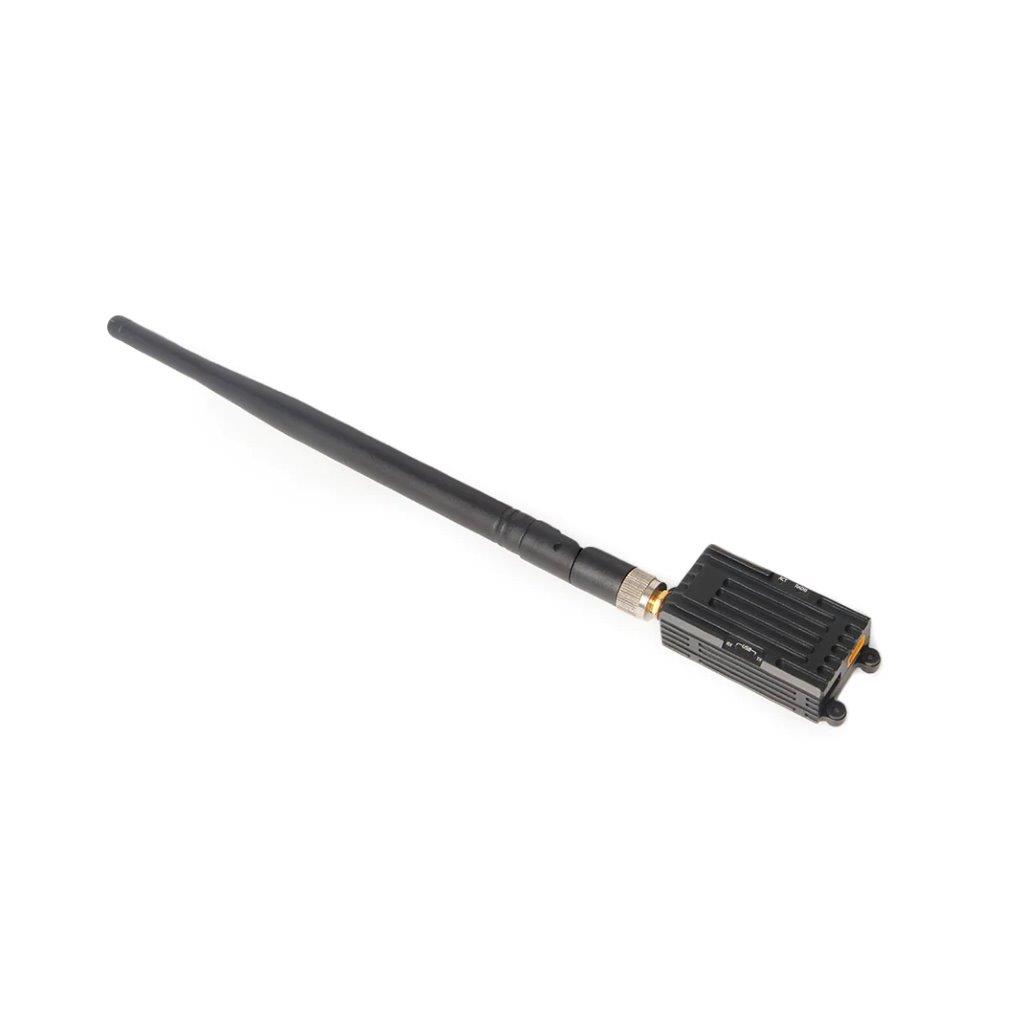

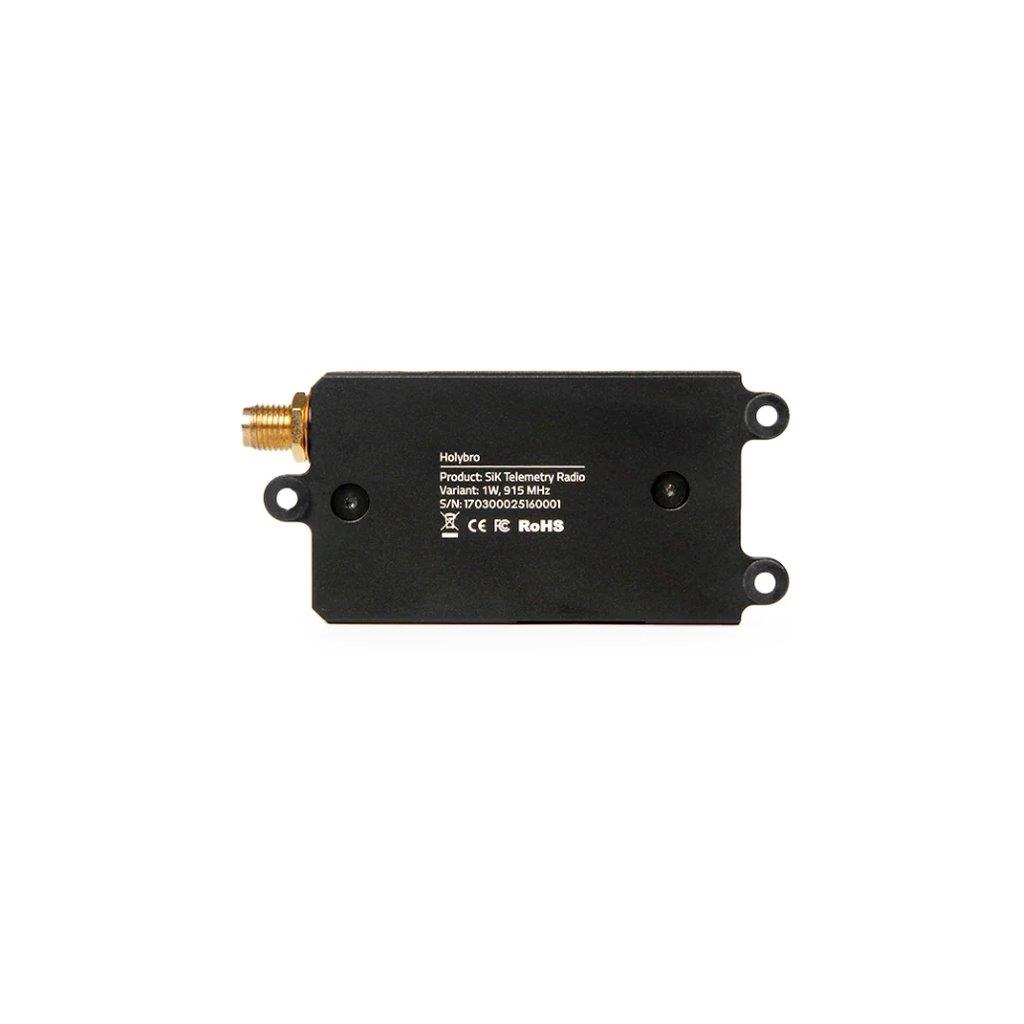

Holybro SiK Telemetry Radio - Long Range 1W 915MHz (Single)
1 555 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: 17030
Overview
This Holybro SiK Long Range Telemetry Radio is a small, light, and inexpensive open-source radio platform with an extended range compared to the standard model.
This radio is plug-and-play, ready for all Pixhawk Standard and other similar flight controllers, providing the easiest way to set up a telemetry connection between your controller and a ground station. It uses open-source firmware that has been specially designed to work well with MAVLink packets and to be integrated with the Mission Planner, Ardupilot, QGroundControl, and PX4.
Features
Open-source SIK firmware
Plug-n-play for Pixhawk Standard Flight Controllers
1W maximum RF output
The Easiest way to connect your controller and Ground Station
Interchangeable air and ground radio
6-position JST-GH connector
Specifications:
SiK Telemetry Radio 100mW / SiK Telemetry Radio 500mW / SiK Telemetry Radio Long
Range
Max RF Power: 20 dBm / 27 dBm / 30 dBm
Receive sensitivity: -121 dbm @2kbps RF Data Rate, -105 dbm @64kbps RF Data Rate
Antenna Gain: 2dBi / 5dBi
RF Data Rates: 2, 4, 8, 16, 32, 64(default), 96, 128, 192, 250 kbps
Serial Interface Data Rate: 1.2, 2.4, 4.8, 9.6, 19.2, 38.4, 57.6(default), 115.2 kbps
Frequency Band: 902MHz - 928MHz or 414MHz - 460MHz
Interference Immunity: Frequency Hopping Spread Spectrum (FHSS) Configurable duty cycle
Address Options: Network ID: 0 255
Channels: Up to 50 Frequency Hopping Channels
Supported Network Topologies: Point-to-point
Configuration Method: MissionPlanner or AT Commands
Data Framing: Standard or MAVLink protocol framing
Error correction: Corrects up to 25% of bit errors with open-source SIK firmware
Serial Data Connector & Interface: 6-pin JST-GH connector, 3.3V-TTL
USB: Micro-USB / Type-C
SMA Connector: RP-SMA female
Power Connector: NA / XT30
Operating Temperature: -40~85°C
Dimension: 28 x 53 x 10.7mm (without antenna) / 66.5 x 32 x 16.5mm (without antenna)

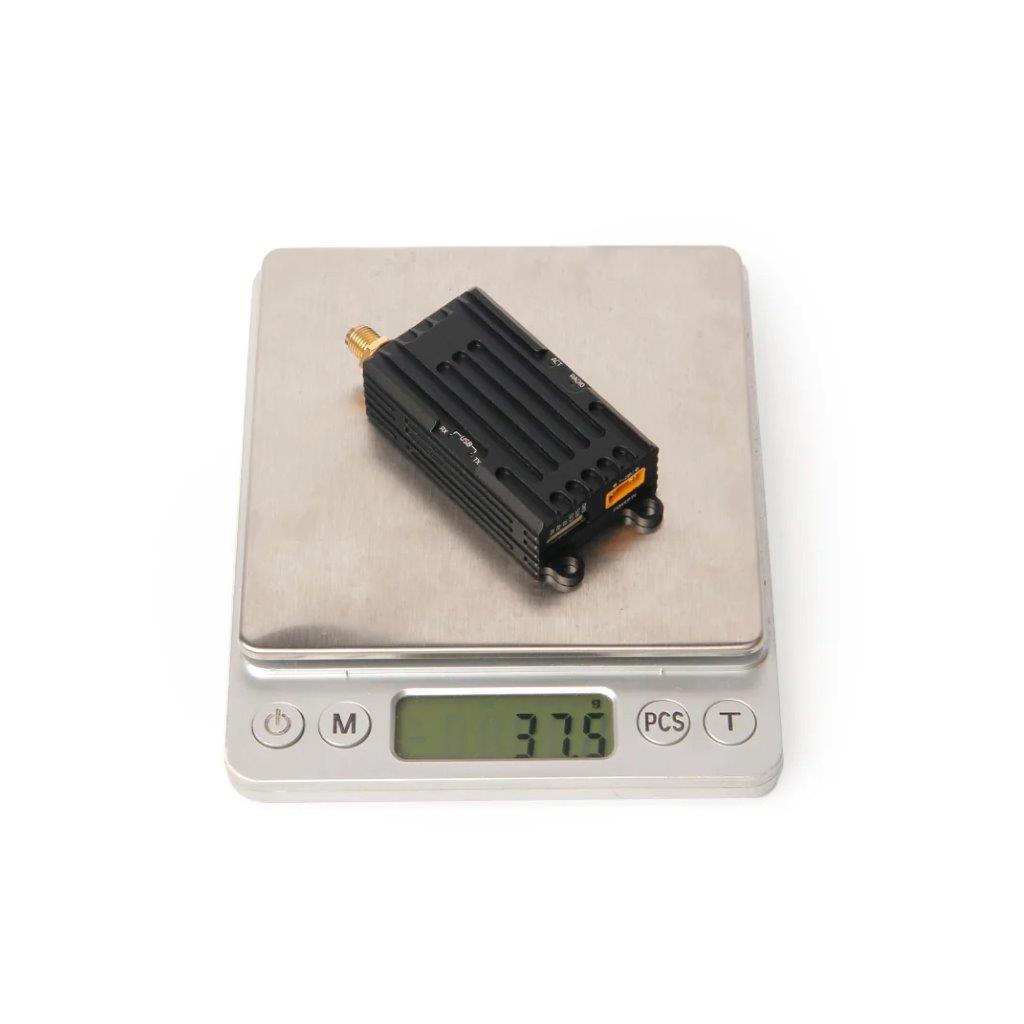

Weight: 23.5g w/ antenna / 67g w/ antenna
Input Voltage (DC): 5V / 7~28V
2-way full-duplex communication through adaptive TDM UART interface
Transparent serial link
MAVLink protocol framing
Built in FT230X/FT231 USB to BASIC UART conversion IC

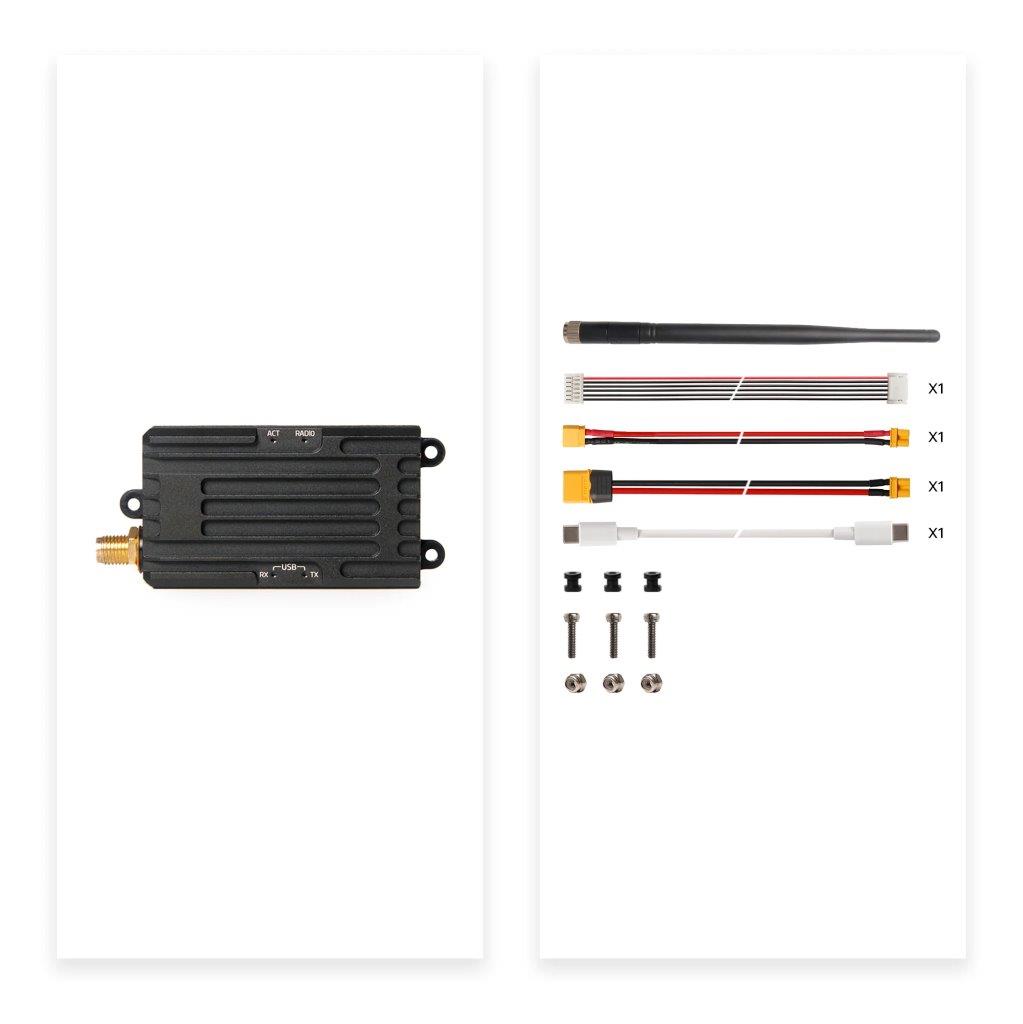

Package Included
Single 1W
o 1W Radio modules with antennas *1
o High-gain omnidirectional antenna *1
o Male Type-C to male Type-C USB cable *1
o Male XT30 to female XT30 adapter cable *1
o Male XT30 to female XT60 adapter cable *1
o JST-GH-6P to JST-GH-6P cable *1 (for Pixhawk Standard FC)
o Rubber damping grommet *3
Pair 1W
o 1W Radio modules with antennas *2
o High-gain omnidirectional antenna *2
o Male Type-C to male Type-C USB cable *1
o Male XT30 to female XT30 adapter cable *1
o Male XT30 to female XT60 adapter cable *1
o JST-GH-6P to JST-GH-6P cable *1 (for Pixhawk Standard FC)
o Rubber damping grommet *3
