Transmitter KAVAN V5 + R6L RX - blue
1 109 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: KAV16.1009

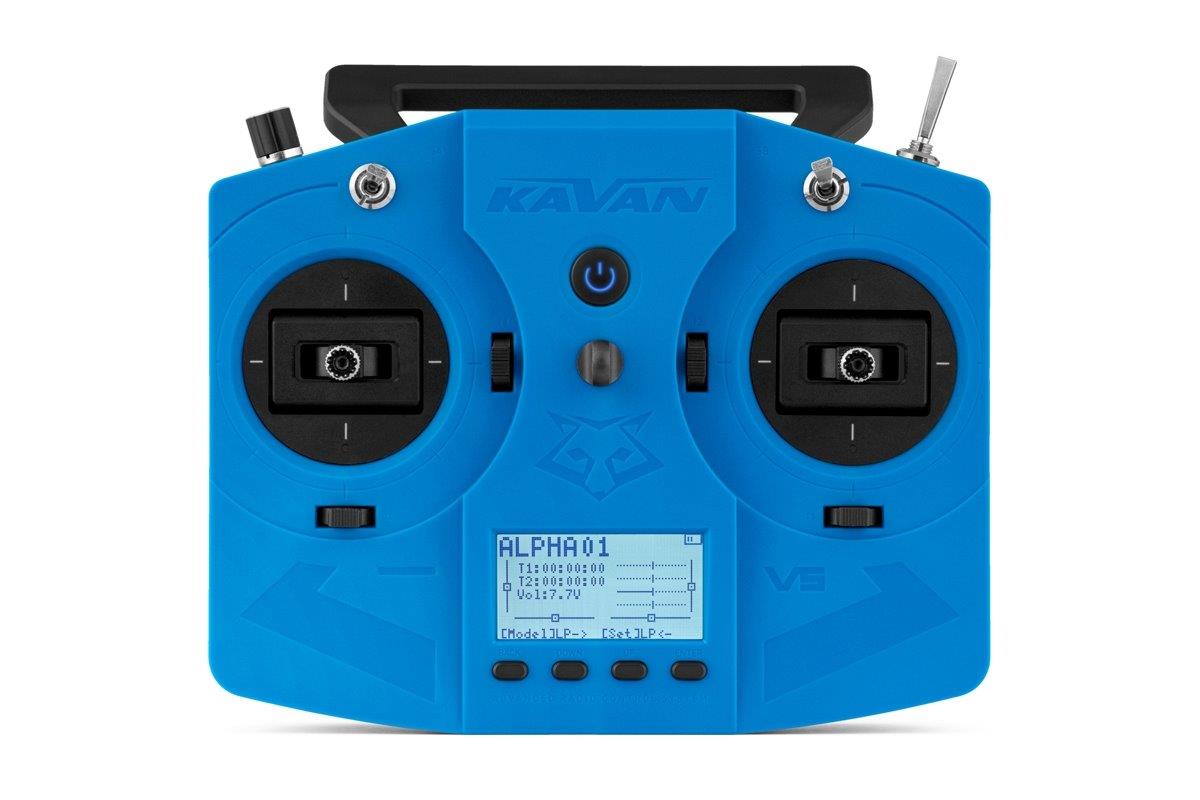

Entry-level 24-channel RC set ACCESS/ACCST. Ergonomic, robust body and precise gimbals with potentiometers. Full telemetry support, monochrome display with an intuitive user interface of the lightweight ECOS operating system.
The KAVAN V5 is an entry-level 24-channel RC set using a 2.4GHz transmission system ACCESS or ACCST with full telemetry support. It boasts a superior response time of up to 4ms and a range of up to tens of kilometres. The operating system is the all-new, lightweight and streamlined ECOS, which simplifies the operation, settings and learning curve. V5 can be paired with a wide range of KAVAN or FrSky receivers, telemetry or not, with classic PWM and serial outputs.
The V5 is a compact, lightweight, and portable radio. It is suitable for controlling a wide variety of aeroplanes as well as heli/multicopters. It can also be easily configured for boats or land models. This is enabled by a range of functions and mixes available in the ECOS operating system.

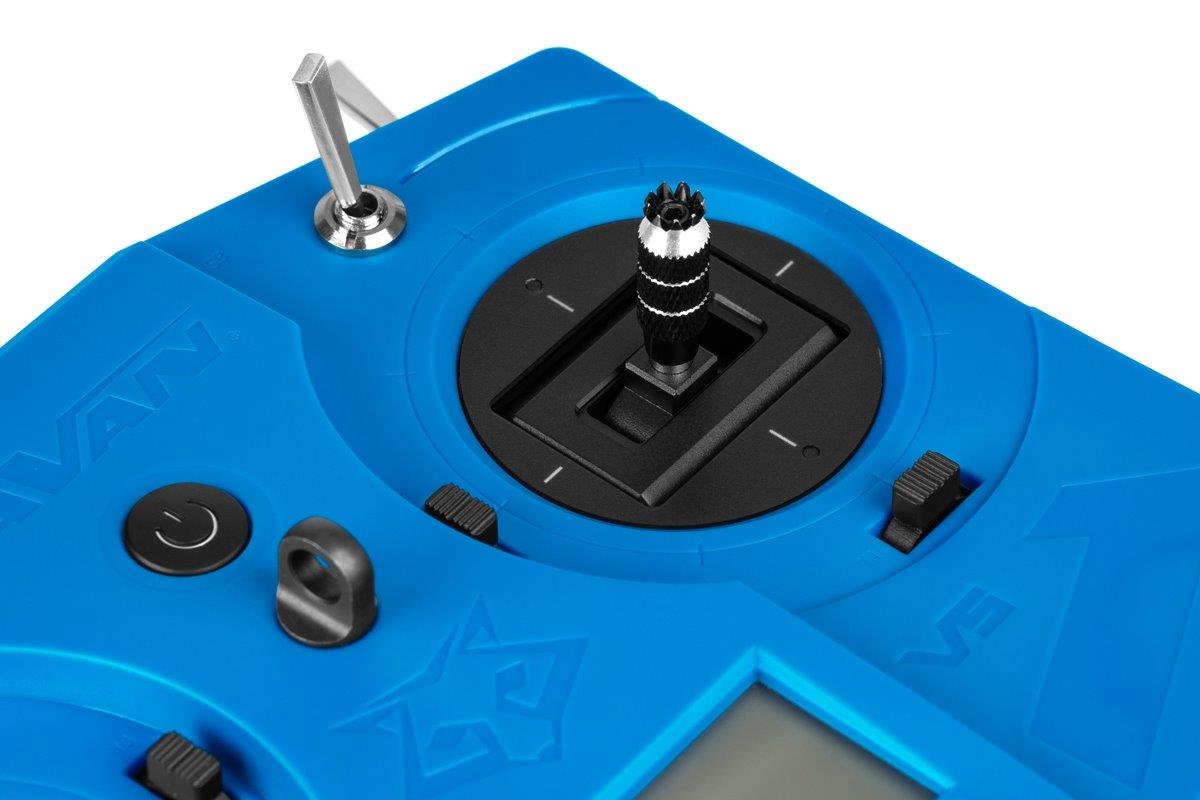

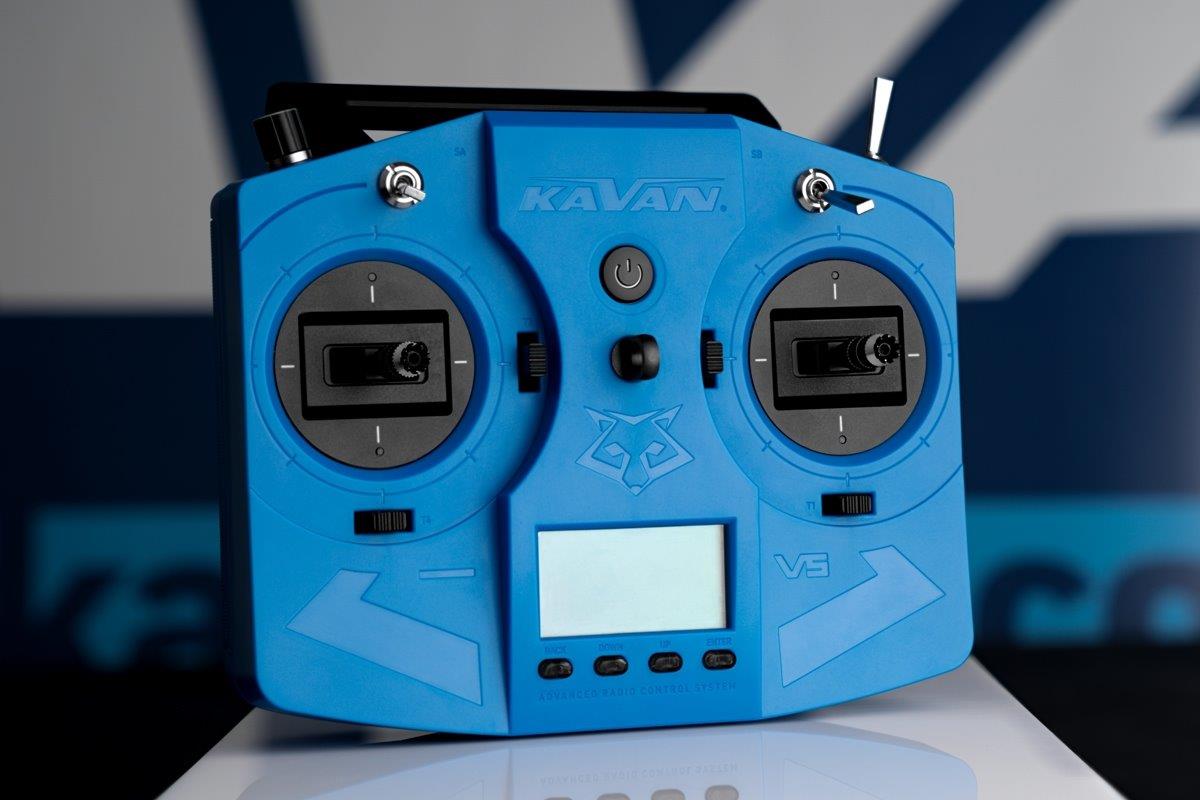

For control, it is equipped with a pair of precise gimbals with potentiometers. Additional functions are controlled via 1 three-position switch, 2 two-position switches, 1 rotary knob, 4 navigation buttons, and 4 digital trims. The layout of the controls and the body ergonomics are based on the proven and extensively tested design of the V20 and V15 transmitters.

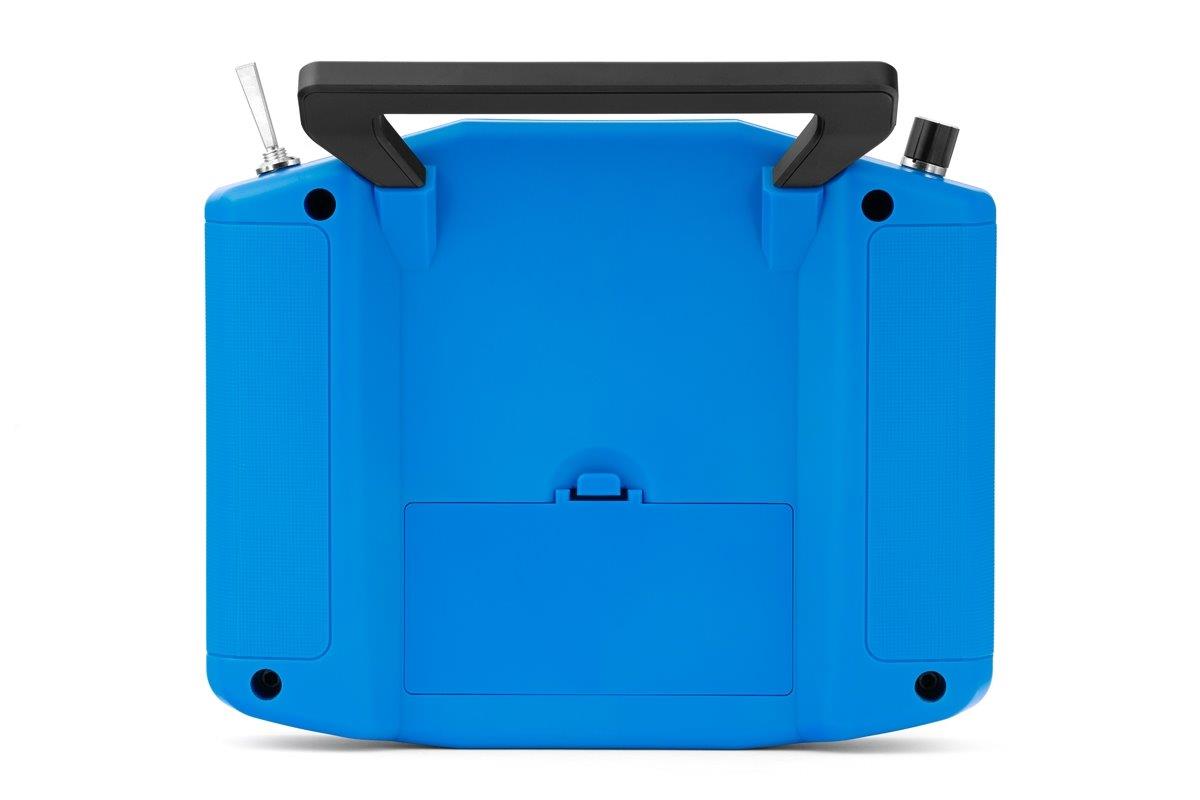

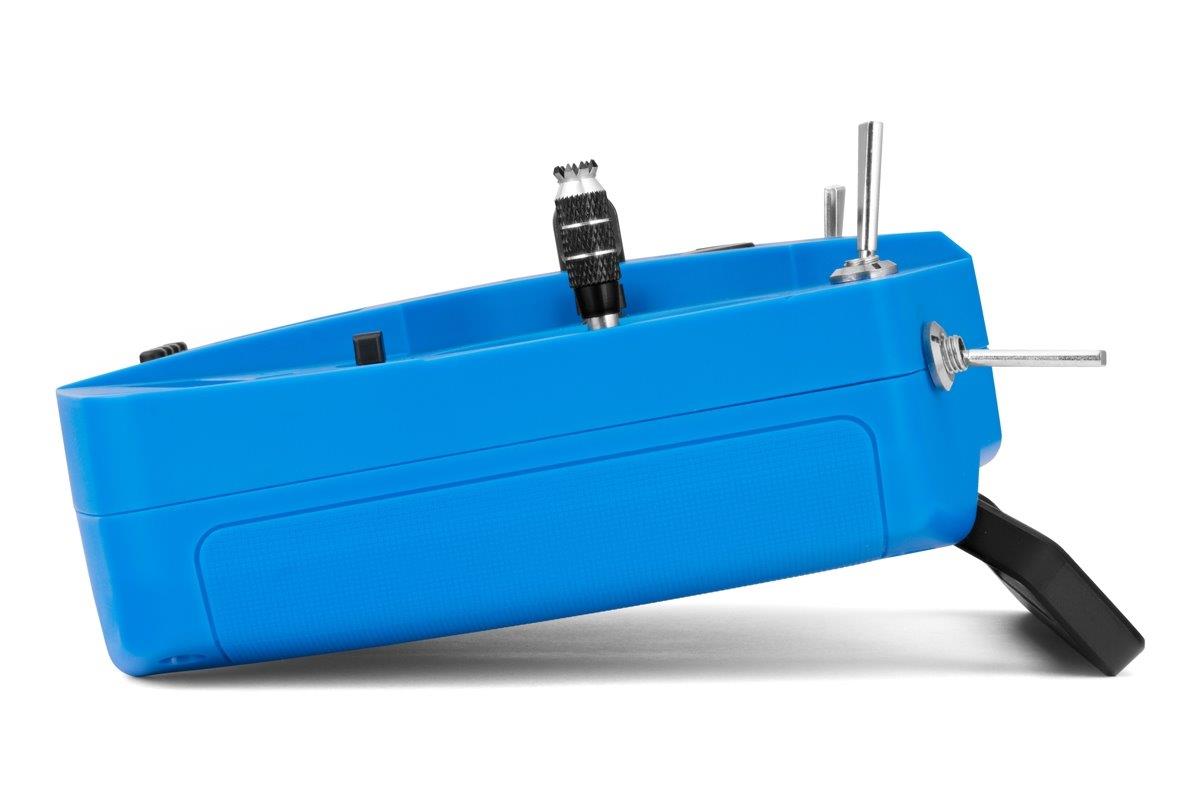

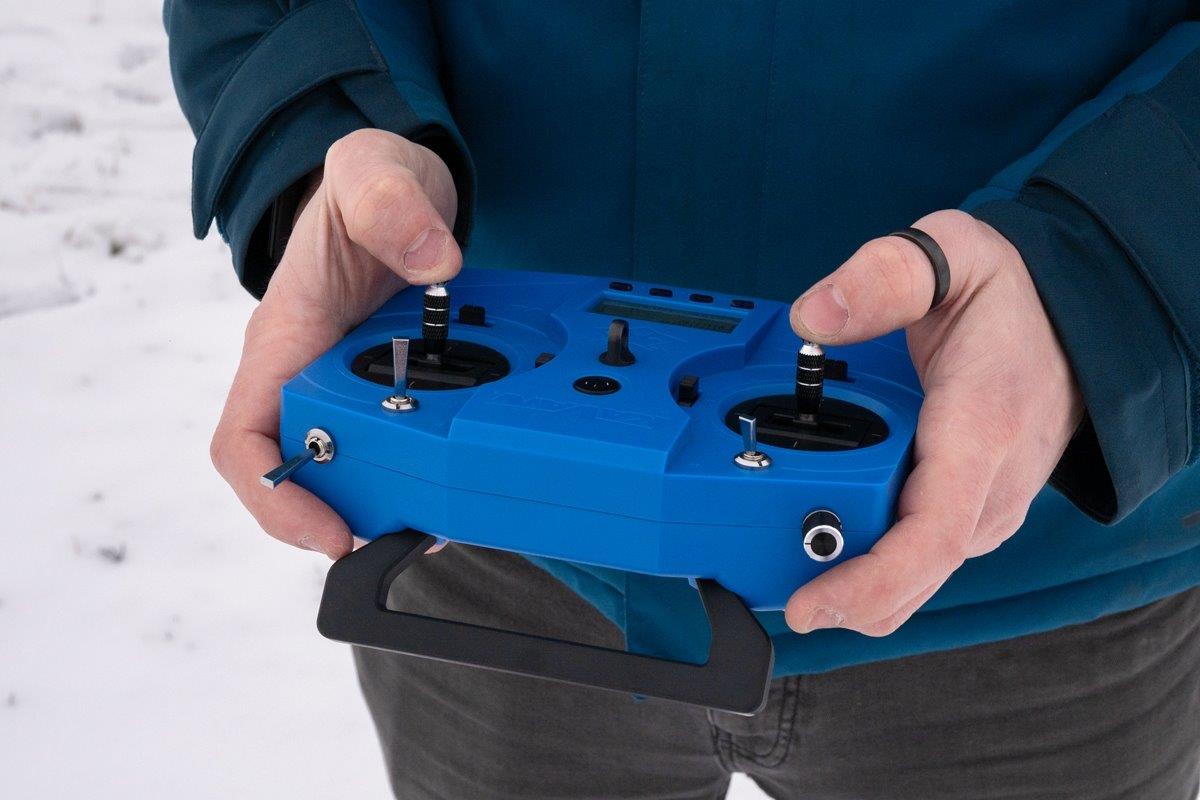

The transmitter body is robust and fits perfectly in the hand. Textured grips on the sides and rear of the body provide a firm, comfortable, and secure hold, with all controls within easy reach. Of course, the strength of the centring springs and ratcheting can be adjusted to fine-tune the mode and response according to personal preferences.

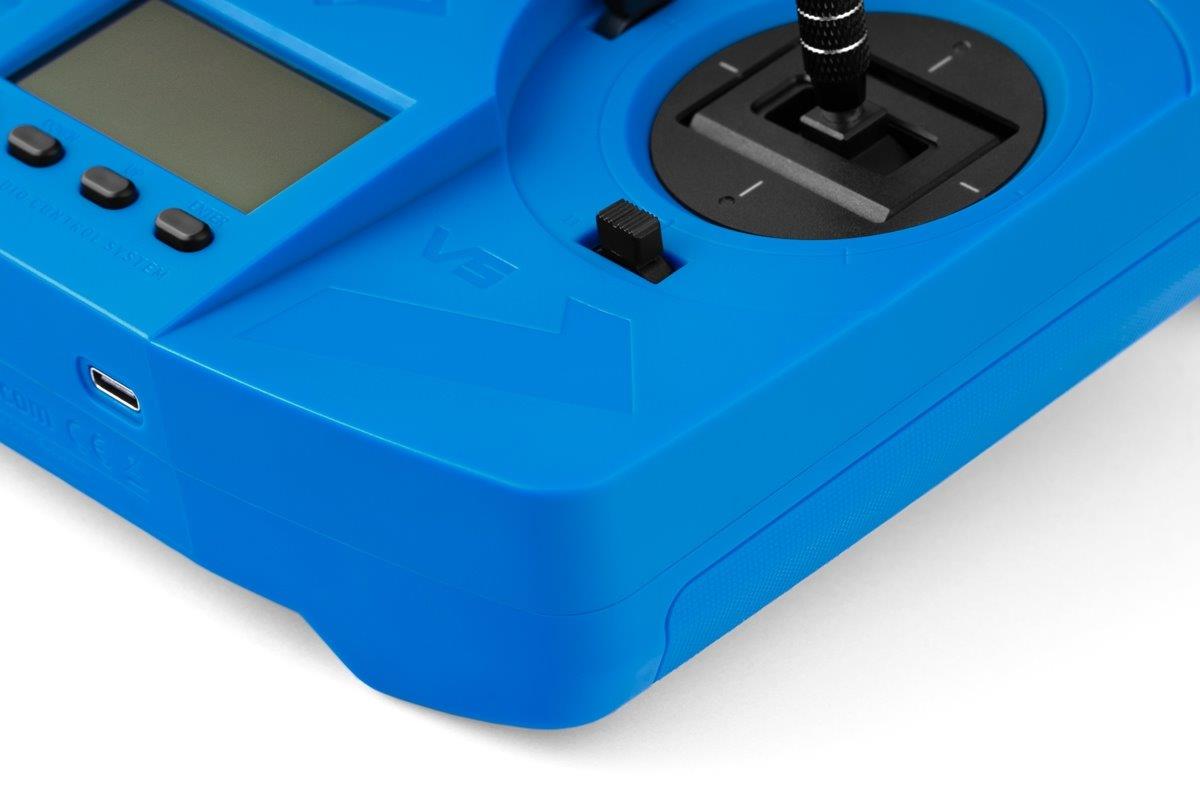

The built-in flash memory can store up to 32 models. A USB-C connector is used to access the memory and also serves for charging. Charging of the 2S Li-ion 2600 mAh battery is handled by a built-in balancer.
All KAVAN transmitters are covered by a three-year extended warranty.
Features
Up to 8 flight modes for perfect control of your model in all conditions
Full telemetry with data transfer from a wide range of sensors
Memory for up to 32 models
1 three-position switch (short)
2 two-position switches (long)

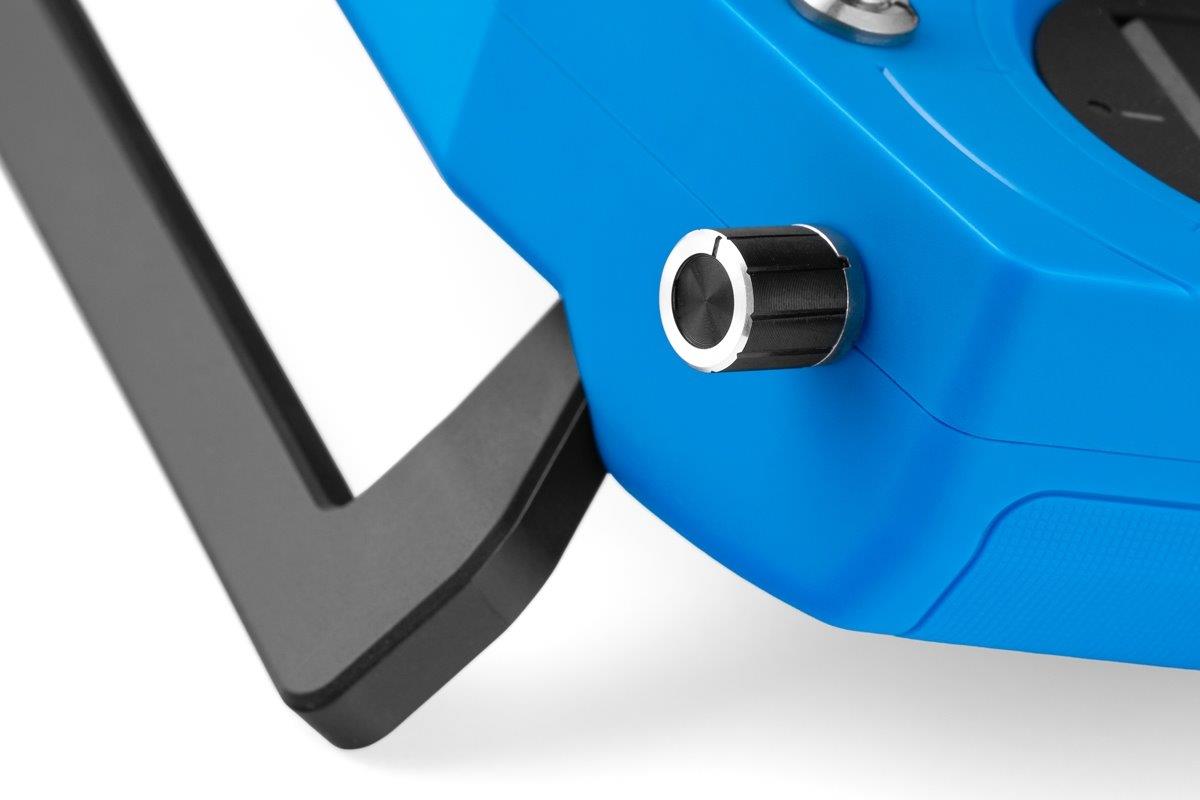

1 programmable rotary knob
4 digital trims
Precision resistance gimbals with all-CNC aluminium stick caps

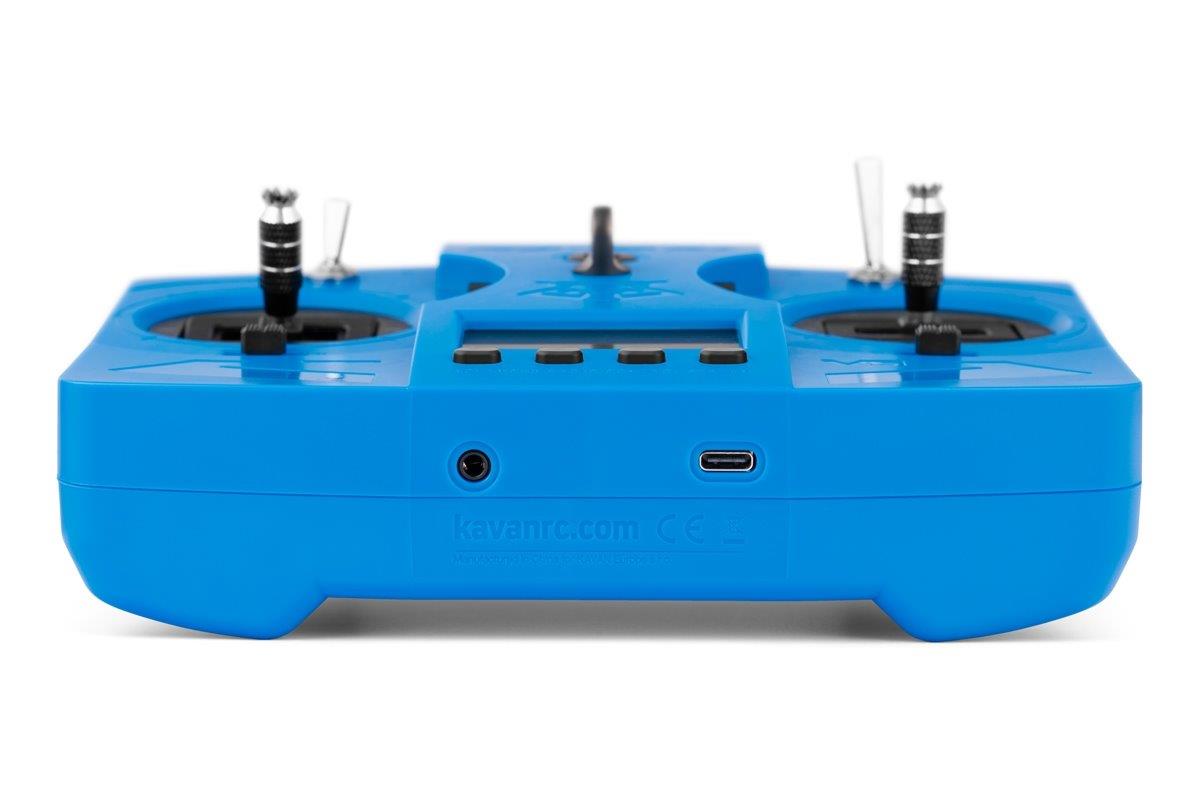

Trainer mode via cable (3.5mm port)
Model names with 7 characters
Reversing the servo operation
Setting end points
Resetting data
Fail-safe emergency rates
Rate progression setting along exponential or 17-point curves
Freely programmable mixes
Logically linked switches
Simple and intuitive user interface
Servo monitor
2 timers (stopwatch or timer)
Adjustable display backlight intensity
Calibration of gimbals
Beeper alerts
Range check
3 receiver operation mode setting (Redundancy)
Technical specifications
Transmission system: ACCESS / ACCST 2.4GHz
Antenna: Built-in 2.4GHz
Gain: 3.01 dBi
Dimensions: 185×161×91 mm (W×H×D)
Weight: 515 g (excluding battery)
Operating system: ECOS
Internal RF module: ISRM-Lite
Channels: Up to 24
Operating voltage: 6.58.4 V (2S Li-ion battery)
Battery compartment dimensions: 69.5×38.5×20 mm (W×H×D)
Operating temperature: (-10)60 °C
Operating current: 100 mA at 7.4 V
Operating frequency: 2.40152.4820 GHz
RF output power: ≤15 dBm (E.I.R.P.)
Charging current: ≤1 A ± 200 mA
USB adapter voltage: 5 V + 0.2 V
USB adapter current: ≥ 2.0 A
Display: 2.15" monochrome LCD with 128×64 px resolution

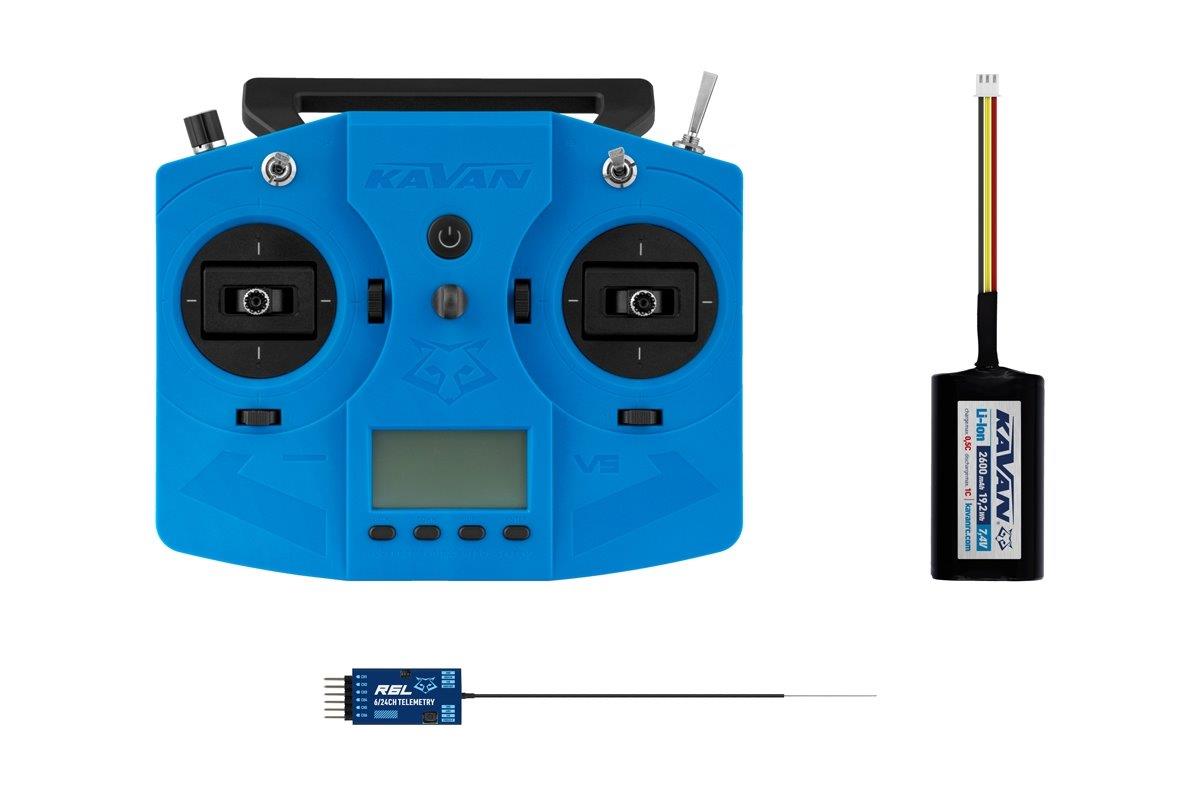

Set contents:
KAVAN V5 transmitter

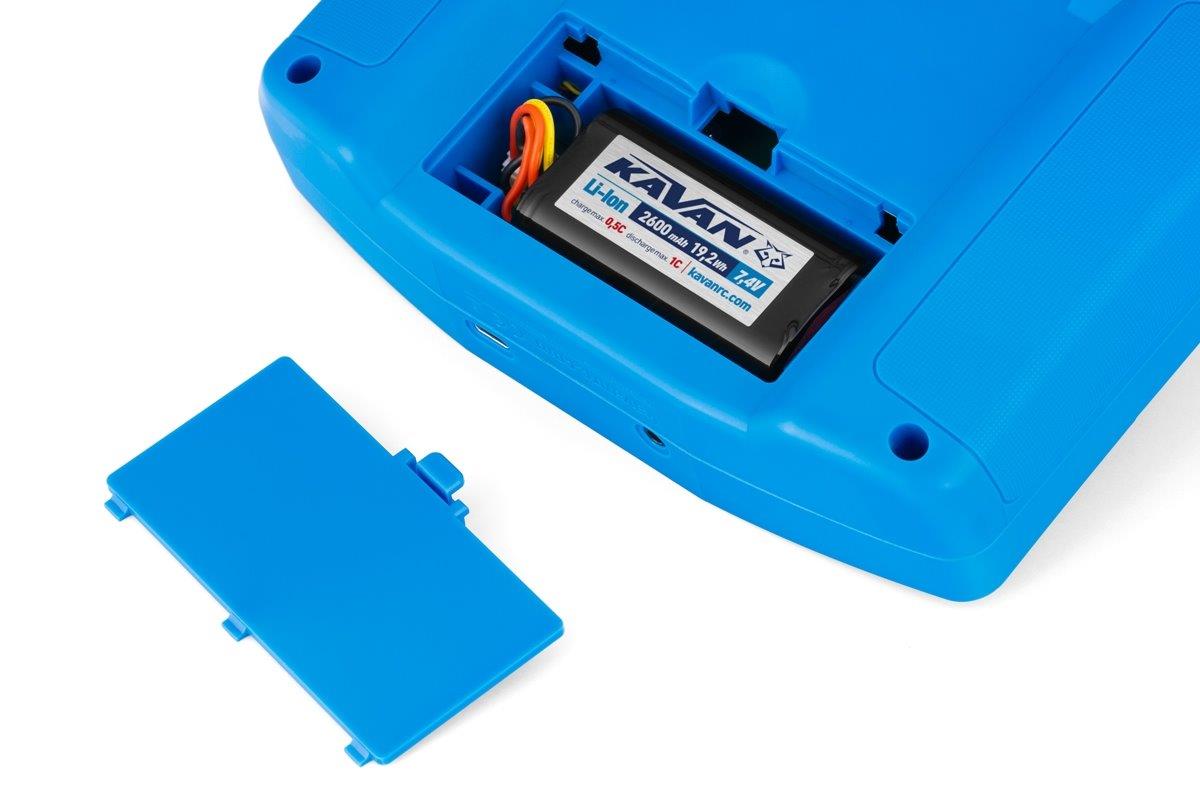

Transmitter battery 2S Li-ion 2600 mAh

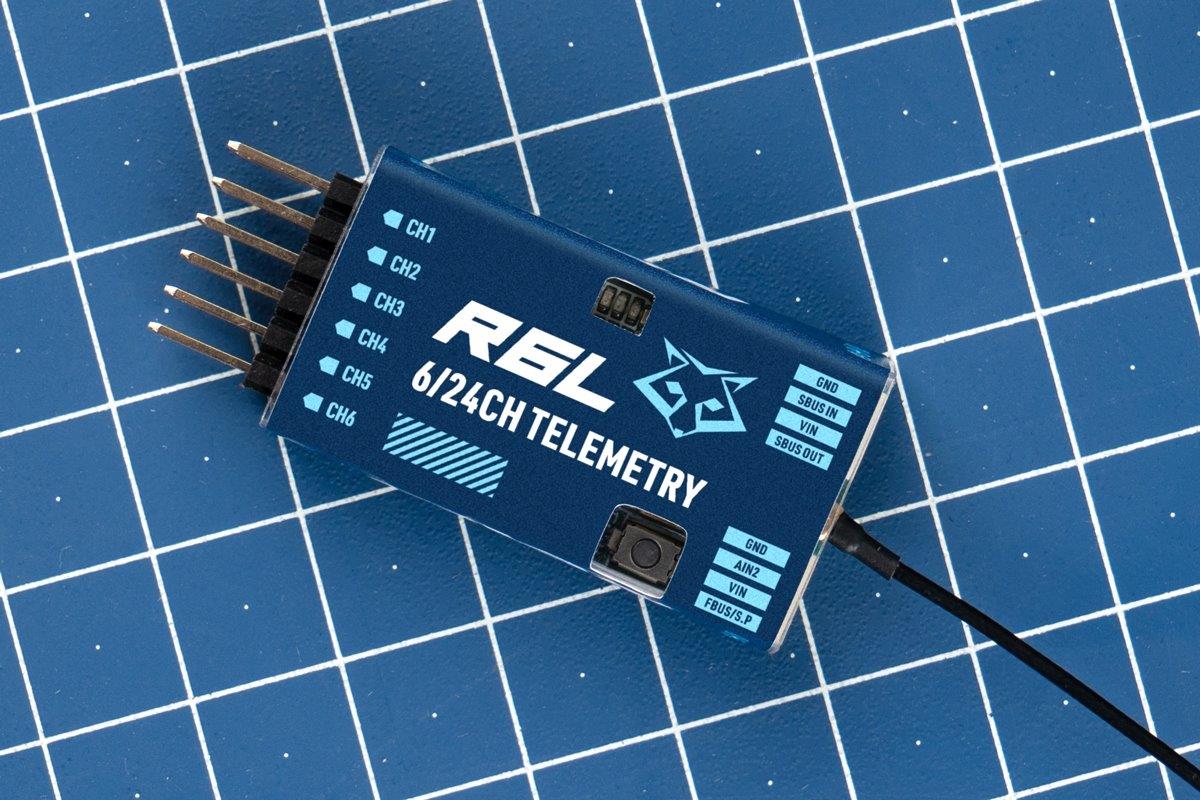

KAVAN R6L receiver
