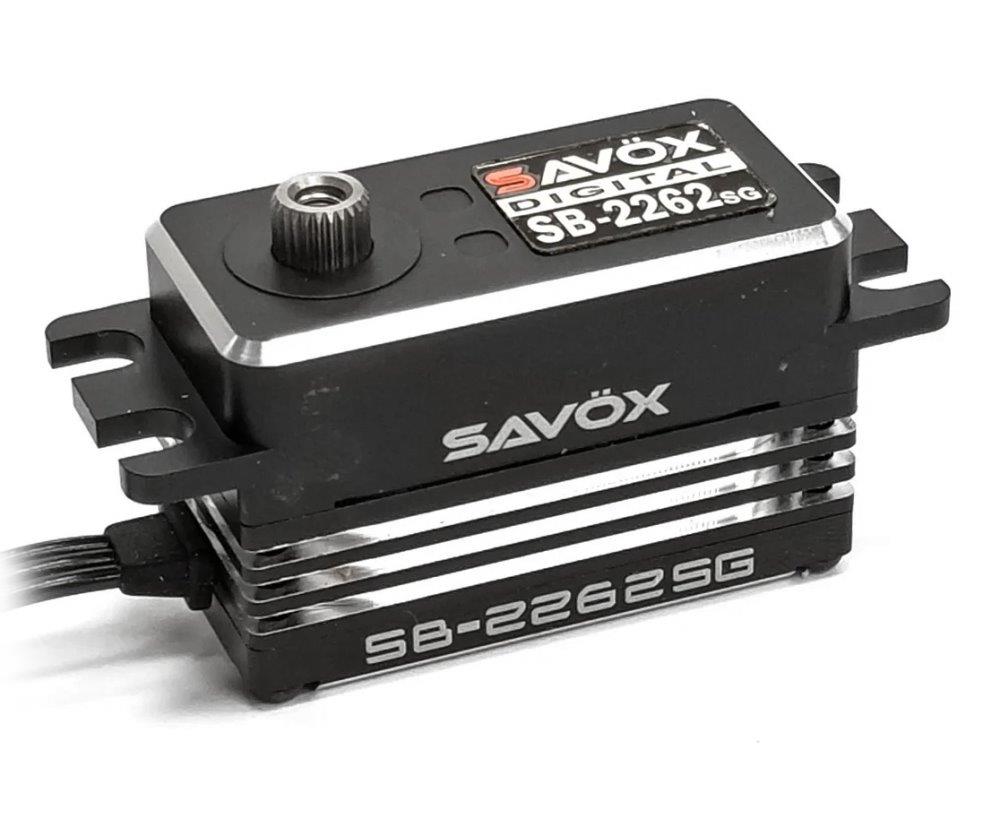

SAVÖX SB-2262SG Servo 23Kg 0,08s HV Alu Brushless Ståldrev Lågt
1 485 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: SAVSB2262SG
SAVÖX SB2262SG - Monster Torque Low Profile Steel Gear Servo 0.08s/25kg @ 7.4V
The powerful "Monster" performance series servos from Savox utilize an all aluminum case, and unique brushless motor and controller technology to boost power up to 35% over previous generation servos.
Features:
Full Aluminum Case
2 Precision Ball Bearings

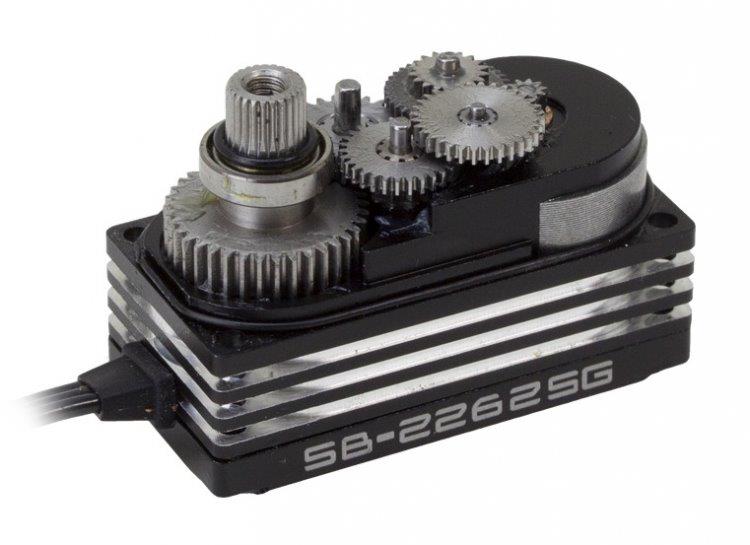

Metal Gears
Specifications:
Torque @ 6.0v: 18kg
Speed @ 6.0v: 0.10s/60°
Torque @ 7.4v: 25kg/cm
Speed @ 7.4v: 0.08s/60°
Torque @ 8.4v: 32kg/cm
Speed @ 8.4v: 0.065s/60°

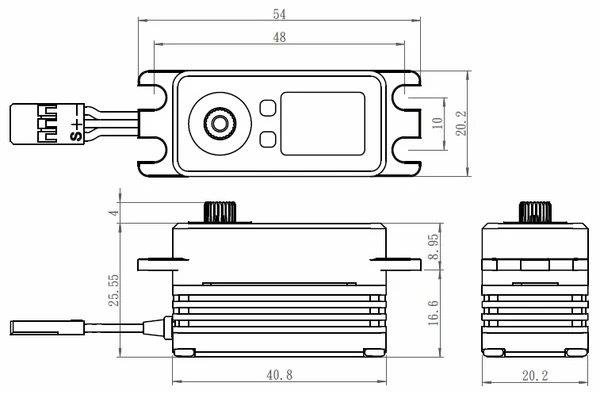

Dimensions L x W x H: 40.8 x 20.2 x 25.75mm
Weight: 62g
Technical Details:
Operating Temperature: 14° - 122°F (-10° - 50°C)
Running Current (no load): 180mA @6.0V, 200mA @7.4V, 220mA @8.4V
Stall Current (at locked): 4500mA @6.0V, 5600mA @7.4V, 6300mA @8.4V
Idle Current: 5mA @6.0V, 5mA @7.4V, 5mA @8.4V
Wire Length: 300 +/- 5mm
Output Gear Spline: 25 Tooth
Bearings: 2BB
Operating Travel: 90° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 800 → 2200 µ second
Maximum Travel: Appx 130° (900 → 2100 µ second)
Refresh Rate: 333 Hz
Motor Type: Brushless
Längd: 40,8 mm
Bredd: 20,2 mm
Höjd: 25,75 mm
Vikt: 62 g
Max Drivspänning: 8,4 V
Hastighet vid 6,0V: 0,10 sek/60°
Hastighet vid 7,2/7,4V: 0,08 sek/60°
Styrka vid 6,0V: 18 kg/cm
Styrka vid 7,2/7,4V: 25 kg/cm
Egenskaper: Aluminiumhus , Borstlös motor , Digitalt , Dubbla Kullager , HV , Ståldrev
Levereras med: Armar , Servogummin, fästskruvar & servook
