SAVÖX SB-3262SG Servo 28Kg 0,08s HV Alu Brushless Ståldrev Lågprofil
1 267,50 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: SAV-SB3262SG
SAVÖX SAV-SB3262SG - SB-3262SG Servo 28Kg 0.08s HV Alu Brushless Steelgears Low Profile
Monster Line
The pinnacle of Team Savox engineering - the Monster Line features our most advanced servos, built for drivers, pilots, and racers who demand the absolute best in torque, speed, and durability. With high-voltage brushless motors, steel gears, and optimized internals, Monster Line servos dominate in everything from 1/8 racing to high-load surface builds and heavy-duty off-road. Its performance without compromise.
SB-3262SG Lightweight Brushless
Introducing the SB-3262SG a lightweight servo with a next-gen brushless motor that delivers more torque with less weight. Ideal for weight-conscious racers who need fast response and high output.
Specs:
Line: MONSTER LINE
Application: CAR / BOAT / AIRPLANE
Servo Size: Low Profile
Operating Voltage: 6.0V-8.4V
Speed @6.0V: 0.1s/60°
Torque @6.0V: 22kg/cm
Speed @7.4V: 0.08s/60°
Torque @7.4V: 28kg/cm
Speed @8.4V: 0.065s/60°
Torque @8.4V: 35kg/cm
Amplifier Type: Digital Controller
Motor Type: Patented Lightweight Brushless
Case Type: Aluminium
Protection: Water Resistant

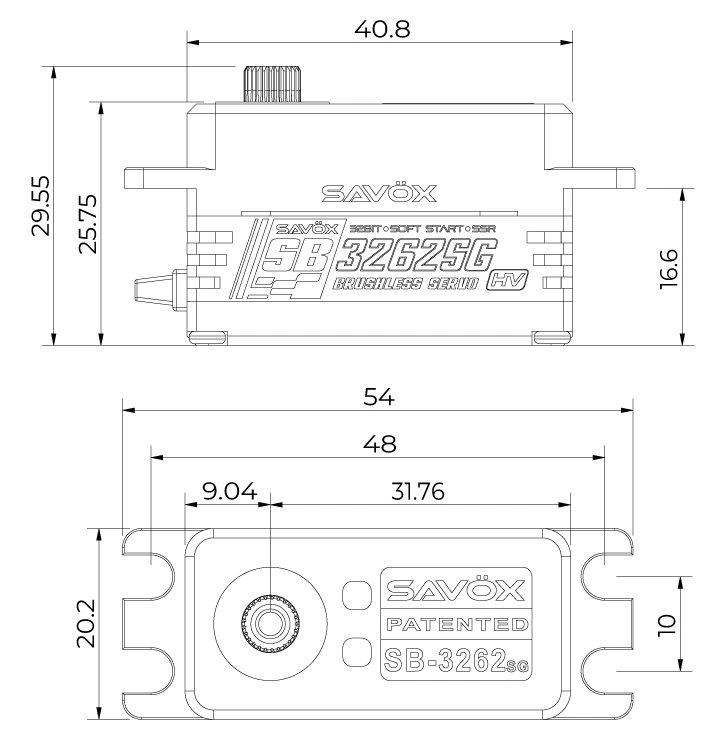

Dimensions: L40.8xW20.2xH25.4mm
Weight: 53g
Gear Type: Specialized Steel
Compatibility: Sanwa SUR & SSR, Futaba UR & SR
PCB Board: 32-bit
Horn Gear Spline: 25T (Φ6)
Rotating Direction: Clockwise (when 1000→2000μsec)
Max Travel: ~130° (when 900→2100μsec)
Operating Travel: 90° (when 1000→2000μsec)
Neutral Position: 1500μsec
Bearing: 2x Ball Bearings
Potentiometer: VR
Cable Diameter: 22AWG
Cable Length: 300±5mm
Connector: JR
Stall Current @6.0V: 4500mA
Operating Current @6.0V: 200mA
Stall Current @7.4V: 5600mA
Operating Current @7.4V: 220mA
Stall Current @8.4V: 6300mA
Operating Current @8.4V: 250mA
Idle Current: 5mA
Dead Band Width: 3-5μsec
Frequency Range: 50-360Hz
Control System: Pulse Width Modification
Operating Temperature: -10°C to 50°C
Ursprungsland: TW
Servolängd: 40,8 mm
Servobredd: 20,2 mm
Servohöjd: 25,4 mm
Servovikt: 53 g
Servotyp: Lågprofil
Max Drivspänning: 8,4 V
Hastighet vid 6,0V: 0,1 sek/60°
Hastighet vid 7,2/7,4V: 0,08 sek/60°
Styrka vid 6,0V: 22 kg/cm
Styrka vid 7,2/7,4V: 28 kg/cm
Egenskaper: Aluminiumhus , Borstlös motor , Digitalt , Dubbla Kullager , HV , SSR , Ståldrev , Stänk/Dammskyddad , Super Response , Ultra Response
Levereras med: Servogummin, fästskruvar & servook
