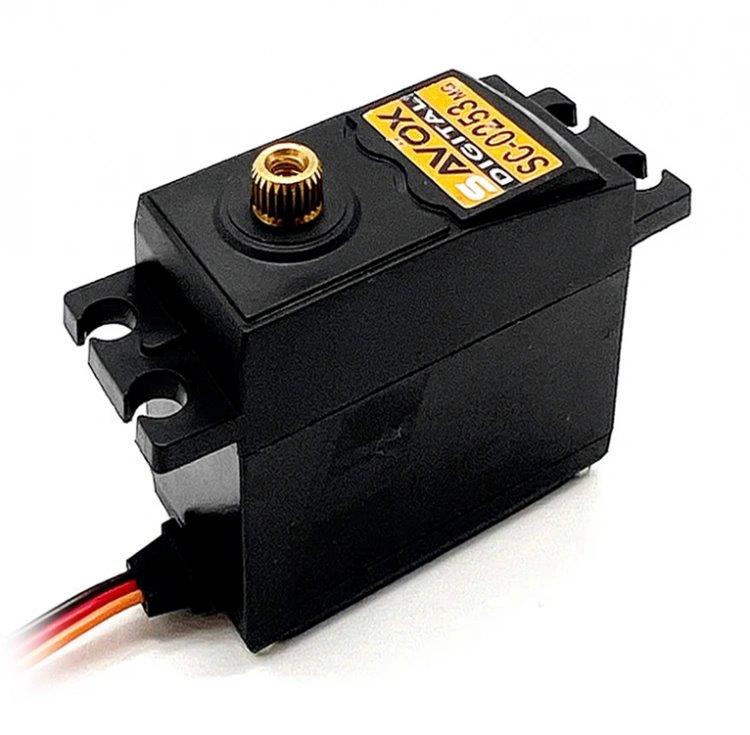

SAVÖX SC-0253MG Servo 6Kg 0,15s Metal Gear
313,75 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: SAVSC0253MGPLUS
SAVÖX SC-0253MGPLUS - Metal-Geared Digital Standard Servo
The SC-0253MG Plus is a budget friendly, digital standard servo with metal gears and a bearing support for those wanting more than what a standard servo offers.
Features:
Soft Start
SSR compatible
DC motor
Strong metal gear train for added durability
Ideal for 1/10 cars and planes
Great replacement for standard servos with plastic gearing
Specifications:
Torque @ 4.8V: 4kg/cm
Torque @ 6V: 6kg/cm
Speed @ 4.8V: 0.17sec/60°
Speed @ 6V: 0.15sec/60°
Dimensions L x W x H: 40.7x20x37mm
Weight: 59g
Technical Details:
Operating Temperature: -10° to 50°C
Running Current (no load): 220mA @4.8V, 240mA @6.0V
Stall Current (at locked): 800mA @4.8 V, 1000mA @6.0V
Idle Current: 5mA @4.8V, 5mA @6.0V
Wire Length: 250 ± 5mm
Output Gear Spline: 25 Tooth
Bearings: 2BB
Operating Travel: 120° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 800 → 2200 µ second
Maximum Travel: Appx 164° (800 → 2200 µ second)
Refresh Rate: 240 Hz
Motor Type: Brushed
Längd: 40,7 mm
Bredd: 20,0 mm
Höjd: 37,0 mm
Vikt: 59 g
Max Drivspänning: 6,0 V
Hastighet vid 4,8V: 0,17 sek/60°
Hastighet vid 6,0V: 0,15 sek/60°
Styrka vid 4,8V: 4,0 kg/cm
Styrka vid 6,0V: 6,0 kg/cm
Egenskaper: Digitalt , Dubbla Kullager , Metalldrev
The SC-0253MG Plus is a budget friendly, digital standard servo with metal gears and a bearing support for those wanting more than what a standard servo offers.
Features:
Soft Start
SSR compatible
DC motor
Strong metal gear train for added durability
Ideal for 1/10 cars and planes
Great replacement for standard servos with plastic gearing
Specifications:
Torque @ 4.8V: 4kg/cm
Torque @ 6V: 6kg/cm
Speed @ 4.8V: 0.17sec/60°
Speed @ 6V: 0.15sec/60°
Dimensions L x W x H: 40.7x20x37mm
Weight: 59g
Technical Details:
Operating Temperature: -10° to 50°C
Running Current (no load): 220mA @4.8V, 240mA @6.0V
Stall Current (at locked): 800mA @4.8 V, 1000mA @6.0V
Idle Current: 5mA @4.8V, 5mA @6.0V
Wire Length: 250 ± 5mm
Output Gear Spline: 25 Tooth
Bearings: 2BB
Operating Travel: 120° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 800 → 2200 µ second
Maximum Travel: Appx 164° (800 → 2200 µ second)
Refresh Rate: 240 Hz
Motor Type: Brushed
Längd: 40,7 mm
Bredd: 20,0 mm
Höjd: 37,0 mm
Vikt: 59 g
Max Drivspänning: 6,0 V
Hastighet vid 4,8V: 0,17 sek/60°
Hastighet vid 6,0V: 0,15 sek/60°
Styrka vid 4,8V: 4,0 kg/cm
Styrka vid 6,0V: 6,0 kg/cm
Egenskaper: Digitalt , Dubbla Kullager , Metalldrev
