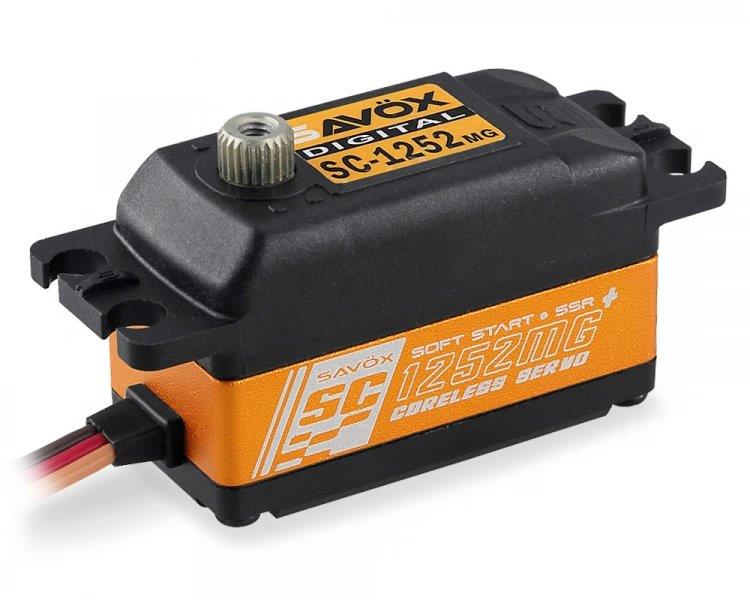

SAVÖX SC-1252MG Plus Servo 7Kg 0,07s Alu Coreless Metal Gear Low

SAVÖX SC-1252MG Plus - Metal-Geared High-Speed Digital Low-Profile Servo V2
The SC-1252MG+ is a high speed, low profile servo which combines leading edge technology with super high 12 bit (4096) resolution. Ideal for 1/10 on-road cars where space is limited and speed is desired.

Features:

• Metal gear train ensures durability under harsh situations
• Ideal for 1/10 on road vehicles
• Aluminum case provides cooler operating temperatures
• New: SSR compatible
• New: Soft Start

Specifications:

• Voltage range: 4.8-6.6V
• Torque @ 4.8V: 4.5kg/62.5oz-in
• Torque @ 6V: 7kg/97.2oz-in
• Speed @ 4.8V: 0.08 sec/60 deg
• Speed @ 6V: 0.07 sec/60 deg

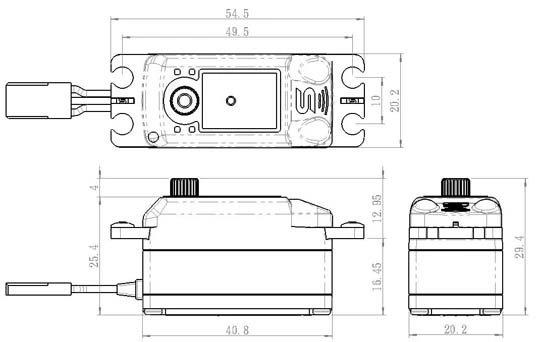

• Dimensions L x W x H: 40.8 x 20.2 x 25.4mm
• Weight: 44.5g

Technical Details:

• Operating Temperature: -10° to 50°C
• Running Current (no load): 150mA @4.8V, 180mA @6.0V
• Stall Current (at locked): 2000mA @4.8V, 3000mA @6.0V
• Idle Current: 5mA @4.8V, 5mA @6.0V
• Wire Length: 300 +/- 5mm
• Output Gear Spline: 25 Tooth
• Bearings: 2BB
• Operating Travel: 90° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 950 → 2050 µ second
• Maximum Travel: Appx 160° (700 → 2300 µ second)
• Refresh Rate: 240 Hz
• Motor Type: Coreless
