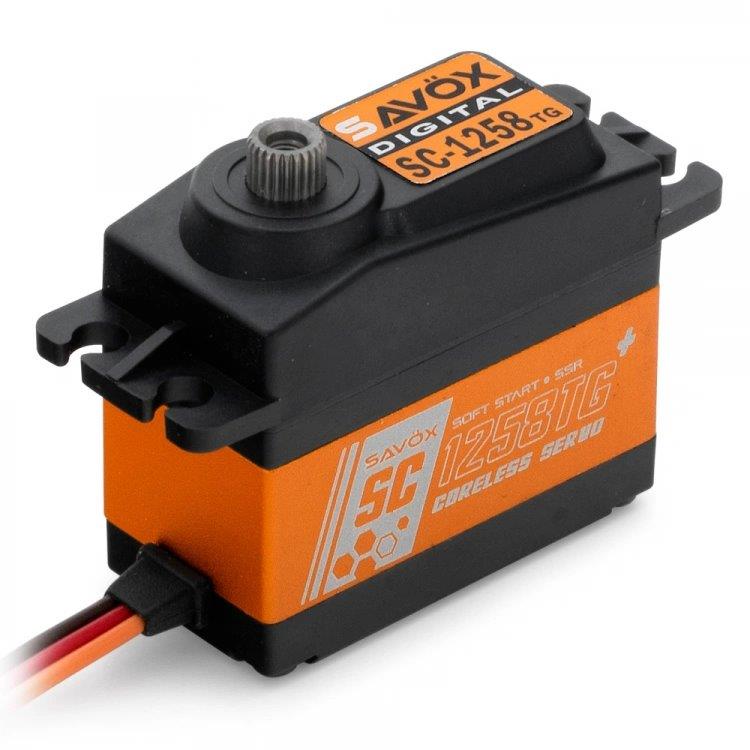

SAVÖX SC-1258TG Plus Servo 12Kg 0,08s Alu Coreless Titanium Gear

SAVÖX SC-1258TGPLUS - Titanium-Geared High-Speed Digital Standard-Sized Servo
Newly updated Savöx SC-1258TG Plus high speed standard size servo which combines leading edge technology with super high 12-bit (4096) resolution for smooth operation.

Features:

• Softstart Function
• Sanwa SSR compatible
• Coreless motor
• Extremely strong titanium gears ensure long-life, durability and light weight
• Ideal for CCPM on 600 and 700 class heli & steering servo on 1/10 scale buggies
• Aluminum middle case allows for cooler operating temperatures

Specifications:

• Torque @ 6V: 12kg/cm
• Speed @ 6V: 0.08 sec/60 deg

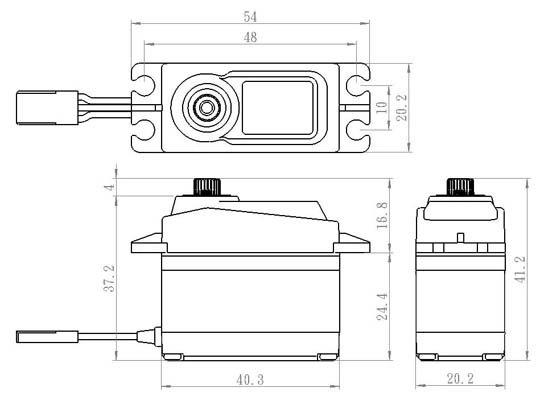

• Dimensions L x W x H: 40.3 x 20.2 x 37.2mm
• Weight: 64g

Technical Details:

• Operating Temperature: -10° to 50°C
• Running Current (no load): 100mA @4.8V, 120mA @6.0V
• Stall Current (at locked): 4000mA @4.8V, 5000mA @6.0V
• Idle Current: 5mA @4.8V, 5mA @6.0V
• Wire Length: 250 +/- 5mm
• Output Gear Spline: 25 Tooth
• Bearings: 2BB
• Operating Travel: 100° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 800 → 2200 µ second
• Maximum Travel: Appx 130° (900 → 2100 µ second)
• Refresh Rate: 333 Hz
• Motor Type: Coreless

Längd: 40,3 mm
Bredd: 20,2 mm
Höjd: 37,2 mm
Vikt: 64 g
Max Drivspänning: 6,0 V
Hastighet vid 4,8V: 0,10 sek/60°
Hastighet vid 6,0V: 0,08 sek/60°
Styrka vid 4,8V: 9,6 kg/cm
Styrka vid 6,0V: 12,0 kg/cm
Egenskaper: Coreless Motor , Digitalt , Dubbla Kullager , Metalldrev , Soft Start , SSR
