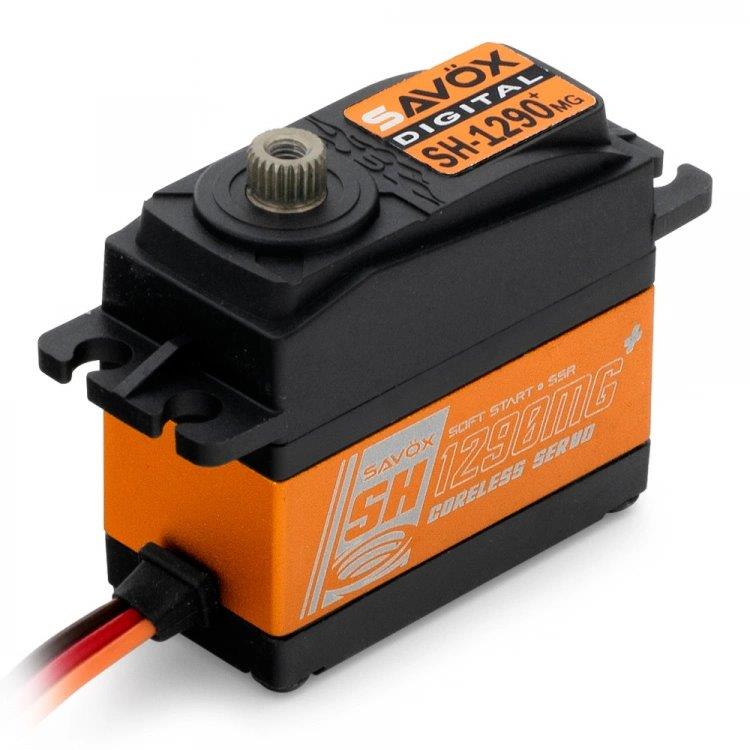

SAVÖX SH-1290MG Plus Servo 5Kg 0,05s Alu Coreless Metal Gear

SAVÖX SH-1290MGPLUS - Metal-Geared Super-Fast Standard-Sized Servo
The Savox SH-1290MG Plus is a super-speed, metal-gear, digital servo that is extremely fast.

Features:

• Soft Start
• SSR compatible
• Coreless motor
• Metal gear train ensures durability and longevity
• Extremely fast for quick response
• Aluminum middle case allows for cooler operating temperatures
• Ideal as a rudder servo on 500, 600, and 700 class helicopters
• Dual ball bearing support

Specifications:

• Torque @4.8V: 4kg/cm
• Torque @6V: 5kg/cm
• Speed @4.8V: 0.06 sec/60 deg
• Speed @6V: 0.05 sec/60 deg

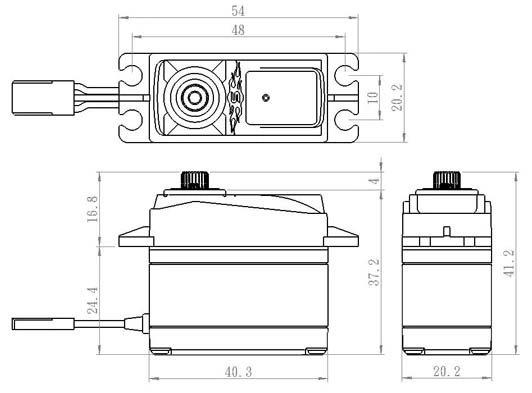

• Dimensions L x W x H: 40.3 x 20.2 x 37.2mm
• Weight: 56.4g

Technical Details:

• Operating Temperature: -10° to 50°C
• Running Current (no load): 200mA @4.8V, 250mA @6.0V
• Stall Current (at locked): 2400mA @4.8V, 3000mA @6.0V
• Idle Current: 5mA @4.8V, 5mA @6.0V
• Wire Length: 300 ± 5mm
• Output Gear Spline: 25 Tooth
• Bearings: 2BB
• Operating Travel: 100° (1000 → 2000 µ second)
• Neutral Position: 1520 µ second
• Pulse Width Range: 800 → 2200 µ second
• Maximum Travel: Appx 154° (800 → 2200 µ second)
• Refresh Rate: 333 Hz
• Motor Type: Coreless

Längd: 40,3 mm
Bredd: 20,2 mm
Höjd: 37,2 mm
Vikt: 56,4 g
Max Drivspänning: 6 V
Hastighet vid 4,8V: 0,06 sek/60°
Hastighet vid 6,0V: 0,05 sek/60°
Styrka vid 4,8V: 4 kg/cm
Styrka vid 6,0V: 5 kg/cm
Egenskaper: Coreless Motor , Digitalt , Dubbla Kullager , Metalldrev , Soft Start , SSR

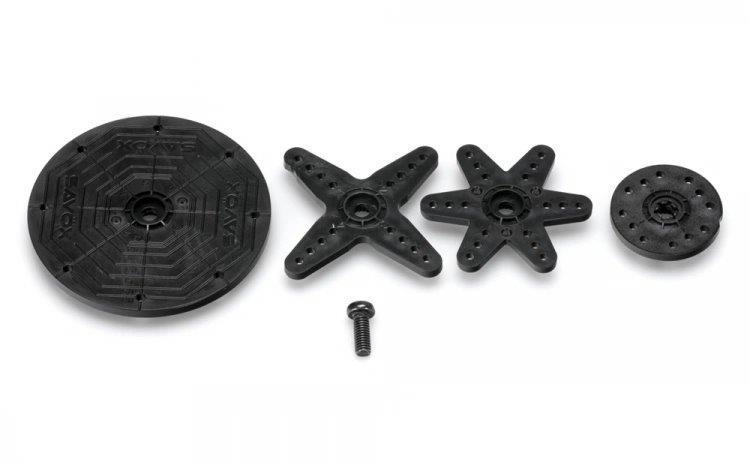

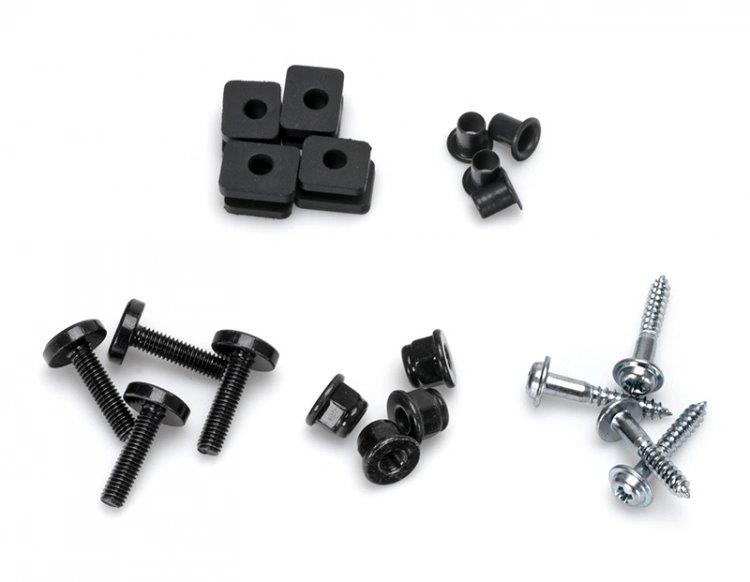

Levereras med: Servogummin, fästskruvar & servook
