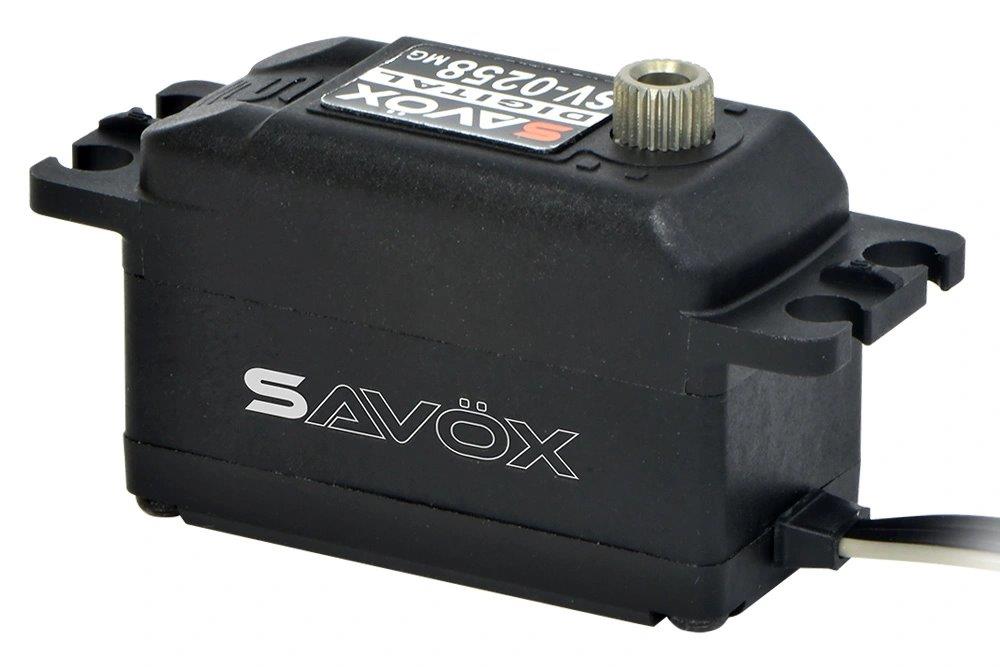

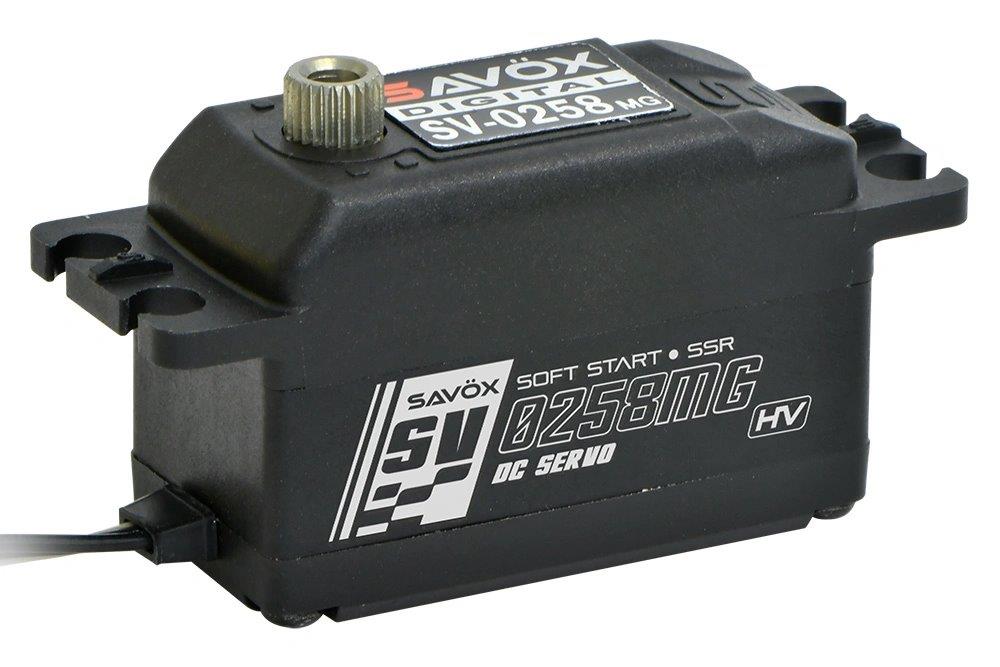

SAVÖX SV-0258MG Servo 8Kg 0,11s HV Metalldrev Lågprofil
313,75 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: SAV-SV0258MG
SAVÖX SAV-SV0258MG - SV-0258MG Low Profile Servo 8Kg 0.11s HV Hybrid Gears
Protection and Precision for Entry-Level RC
The SV-0258MG is engineered to work seamlessly with entry-level ESCs in RTR kits, limiting current draw to just 1.5A to prevent shutdowns and ensure uninterrupted driving. Its low-profile composite case saves space, while hybrid gears and digital electronics provide consistent, precise steering control.
It's ideal for RTR and 1/10 touring cars where both protection and performance matter.

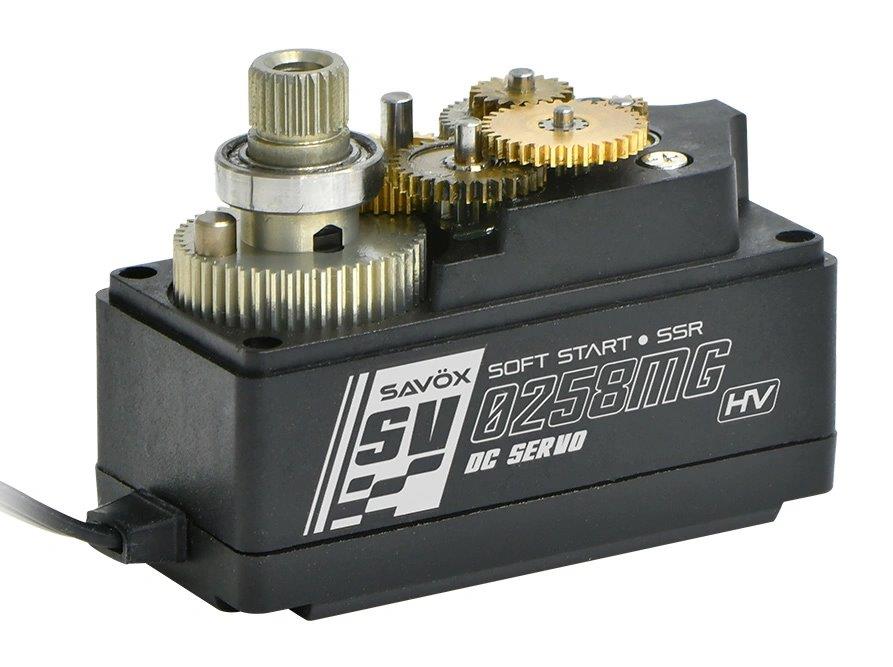

Hybrid Metal/Composite Gears
Provides a balance of durability and weight savings for everyday and beginner use.
Low-Profile Compact Size

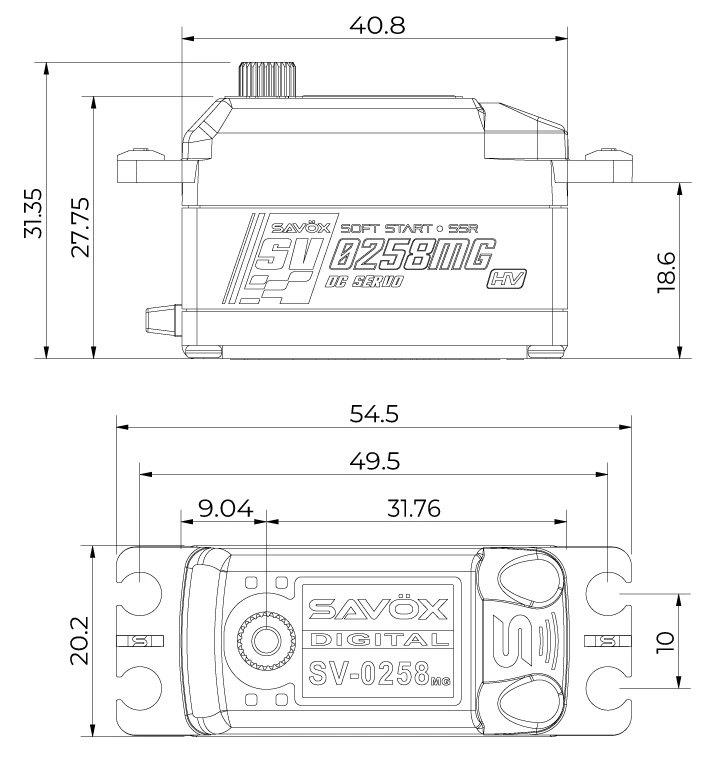

Measures only 40.8×20.2×27.75mm, making it a perfect fit for 1/10 touring cars and other compact builds.
Digital Precision Control
Equipped with a 10-bit digital PCB and VR potentiometer for smooth, accurate steering response.
Specs:
Line: BLACK EDITION
Application: CAR
Servo Size: Low Profile
Operating Voltage: 6V-7.4V
Speed @6.0V: 0.13s/60°
Torque @6.0V: 6.5kg/cm
Speed @7.4V: 0.11s/60°
Torque @7.4V: 8.0kg/cm
Amplifier Type: Digital Controller
Motor Type: DC
Case Type: Composite
Protection: Dust Resistant
Dimensions: L40.8xW20.2xH27.7 mm
Weight: 36g
Gear Type: Hybrid (Metal/Composite)
Compatibility: Sanwa SSR
PCB Board: 10-bit
Horn Gear Spline: 25T (Φ6)
Rotating Direction: Clockwise (when 1000→2000μsec)
Max Travel: ~140° (when 800→2200μsec)
Operating Travel: 90° (when 1000→2000μsec)
Neutral Position: 1500μsec
Bearing: 2x Ball Bearings
Potentiometer: VR
Cable Diameter: 26AWG
Cable Length: 250±5mm
Connector: JR
Stall Current @6.0V: 1500mA
Operating Current @6.0V: 150mA
Stall Current @7.4V: 1800mA
Operating Current @7.4V: 180mA
Idle Current: 6mA
Dead Band Width: 3-5μsec
Frequency Range: 50-360Hz
Control System: Pulse Width Modification
Operating Temperature: -10°C to 50°C
Ursprungsland: TW
Servolängd: 40,8 mm
Servobredd: 20,2 mm
Servohöjd: 27,7 mm
Servovikt: 36 g
Servotyp: Lågprofil
Max Drivspänning: 7,4 V
Hastighet vid 6,0V: 0,13 sek/60°
Hastighet vid 7,2/7,4V: 0,11 sek/60°
Styrka vid 6,0V: 6,5 kg/cm
Styrka vid 7,2/7,4V: 8 kg/cm
Egenskaper: Dubbla Kullager , HV , Soft Start , SSR
Levereras med: Servogummin, fästskruvar & servook
