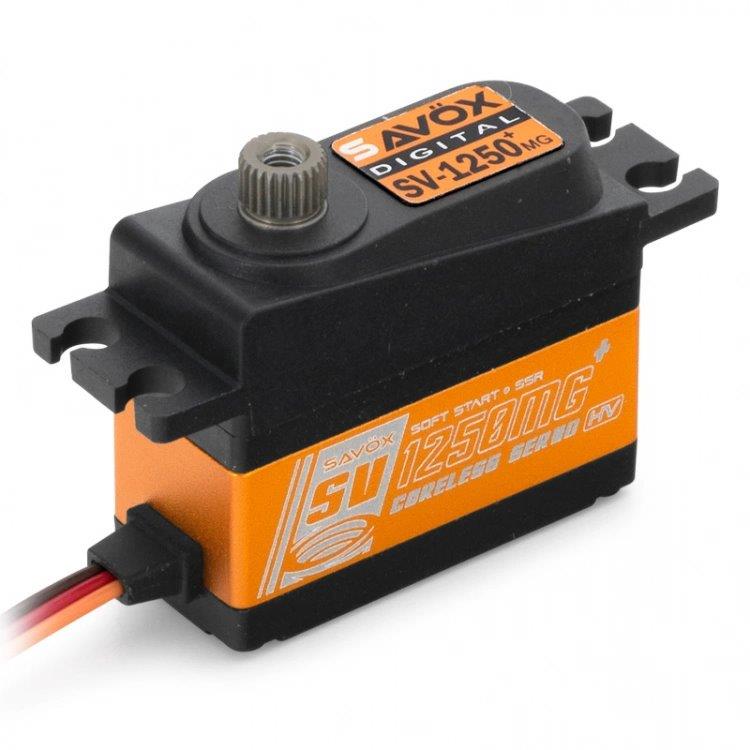

SAVÖX SV-1250MG Plus Servo 8,0Kg 0,095s HV Alu Coreless Metal Gear Mini

SAVÖX SV-1250MGPLUS - Metal-Geared High Voltage Mini Servo
The SV-1250MG Plus mini-sized, metal-geared, digital servo is extremely powerful for it's size and capbable of operating on higher voltages than most mini/micro servos compared to other brands.

Features:

• New: Soft Start
• High Voltage
• Metal gear train provide durability against heavy use
• Aluminum middle case allows for cooler operating temperatures
• Ideal where torque is needed in a small mounting space

Specifications:

• Torque @6V: 4.6kg/cm
• Torque @7.4V: 8kg/cm
• Torque @8.4V: 10kg/cm
• Speed @6V: 0.11 sec/60 deg
• Speed @7.4V: 0.095 sec/60 deg
• Speed @8.4V: 0.085 sec/60 deg
• Dimensions L x W x H: 35.0 x 15.0 x 29.2mm
• Weight: 29.6g

Technical Details:

• Operating Temperature: -10° to 50°C
• Running Current (no load): 100mA @6.0V, 120mA @7.4V
• Stall Current (at locked): 1600mA @6.0V, 2000mA @7.4V
• Idle Current: 6mA @4.8V, 6mA @6.0V
• Wire Length: 250 ± 5mm
• Output Gear Spline: 25 Tooth
• Bearings: 2BB
• Operating Travel: 110° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 800 → 2200 µ second
• Maximum Travel: Appx 154° (800 → 2200 µ second)
• Refresh Rate: 333 Hz
• Motor Type: Coreless

Längd: 35 mm
Bredd: 15 mm
Höjd: 29,2 mm
Vikt: 29,6 g
Max Drivspänning: 8,4 V
Hastighet vid 6,0V: 0,11 sek/60°
Hastighet vid 7,2/7,4V: 0,095 sek/60°
Styrka vid 6,0V: 4,6 kg/cm
Styrka vid 7,2/7,4V: 8 kg/cm
Egenskaper: Coreless Motor , Digitalt , Dubbla Kullager , HV , Metalldrev , Soft Start , SSR

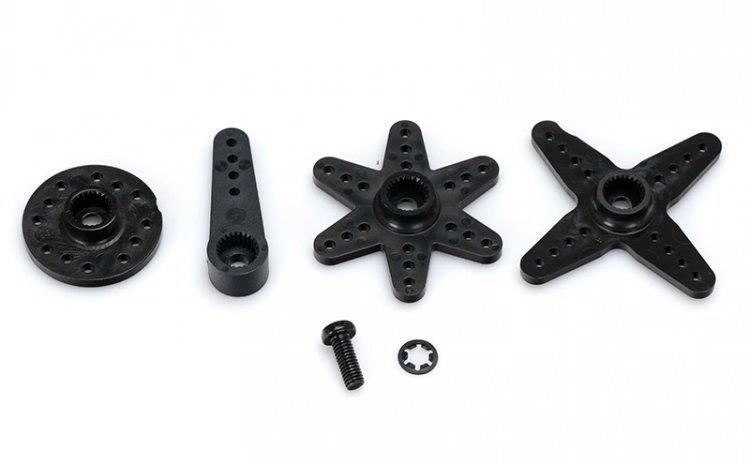

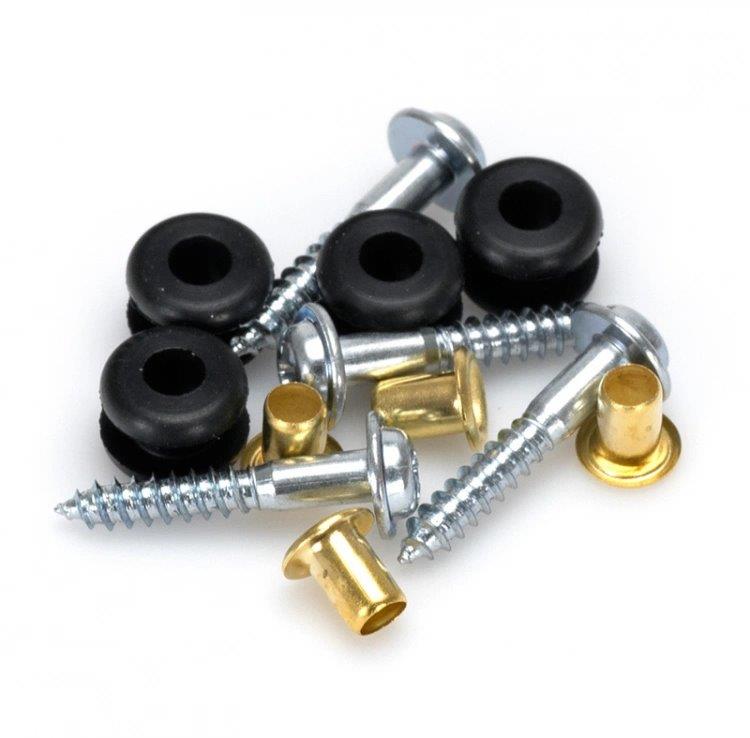

Levereras med: Servogummin, fästskruvar & servook
