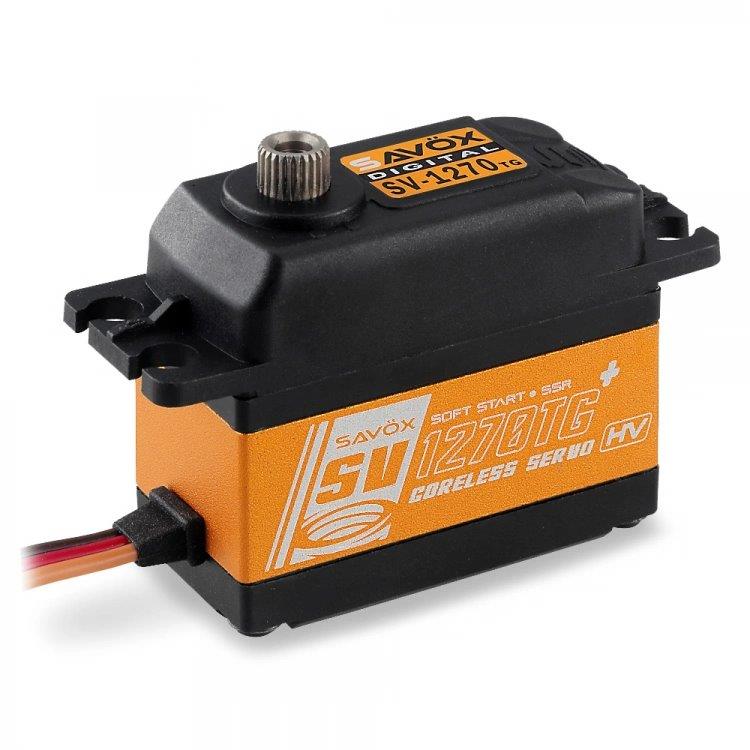

SAVÖX SV-1270TG Plus Servo 45kg 0.10s HV Alu Coreless Titanium Gear

SAVÖX SV-1270TGPLUS - Monster Torque Titanium-Geared Standard-Sized Servo - PLUS/V2
This is the new updated Savox SV-1270TG+ Digital High Voltage "Monster Torque" Titanium Gear Servo. Built to handle extreme requirements - this servo delivers!

Features:

• NEW! Softstart Function
• NEW! Sanwa SSR compatible
• High Voltage

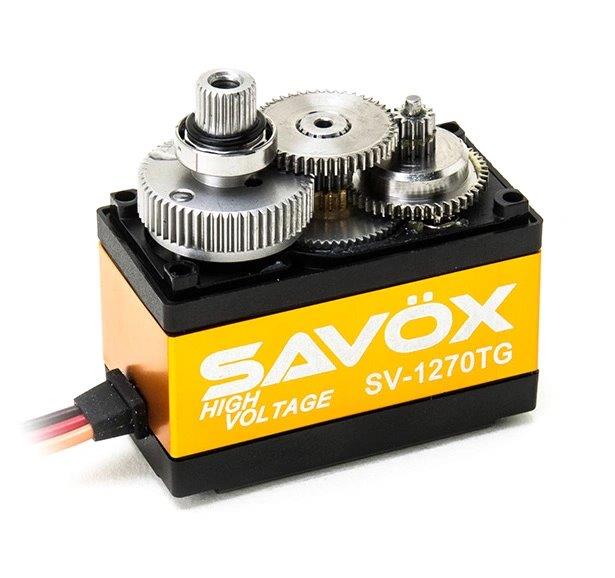

• Super strong, precision made, titanium gears provide durability that will survive heavy use
• Ideal for large-scale airplane, 1/8 truck, and Monster Truck applications
• The servo that racers desire

Specifications:

• Torque @6V: 30kg/cm
• Torque @7.4V: 40kg/cm
• Torque @8.4V: 45kg/cm
• Speed @6V: 0.14s/60°
• Speed @7.4V: 0.11s/60°
• Speed: @8.4V: 0.10s/60°

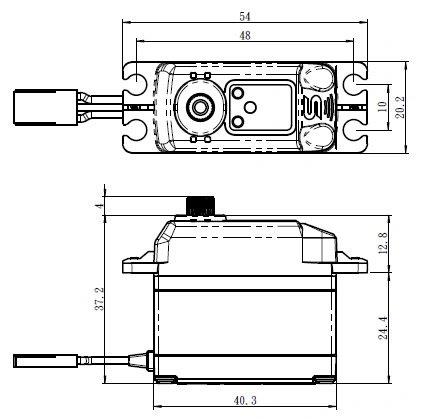

• Dimensions L x W x H: 40.3x20.2x37.2mm
• Weight: 64g

Technical Details:

• Operating Temperature: -10° to 50°C
• Running Current (no load): 120mA @6.0V, 150mA @7.4V
• Stall Current (at locked): 5500mA @6.0 V, 6800mA @7.4V
• Idle Current: 5mA @4.8V, 5mA @6.0V
• Wire Length: 200 ± 5mm
• Output Gear Spline: 25 Tooth
• Bearings: 2BB
• Operating Travel: 100° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 800 → 2200 µ second
• Maximum Travel: Appx 130° (900 → 2100 µ second)
• Refresh Rate: 333 Hz
• Motor Type: Coreless

Längd: 40,3 mm
Bredd: 20,2 mm
Höjd: 37,2 mm
Vikt: 64 g
Max Drivspänning: 8,4 V
Hastighet vid 6,0V: 0,14 sek/60°
Hastighet vid 7,2/7,4V: 0,11 sek/60°
Styrka vid 6,0V: 30 kg/cm
Styrka vid 7,2/7,4V: 40 kg/cm
Egenskaper: Coreless Motor , Digitalt , Dubbla Kullager , HV , Metalldrev , Soft Start , SSR
Levereras med: Servogummin, fästskruvar & servook
