SAVÖX SV-1272SG Plus Servo 35Kg 0,10s HV Alu Coreless Steel Gear
965 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: SAVSV1272SGPLUS
SAVÖX SV-1272SG - Monster Torque High Voltage Performance Servo - PLUS/V2
This is the newly updated Savox SV-1272SG v2 Monster Torque, High Voltage Digital Servo. A very powerful servo in a standard case, the SV1272SG v2 servo fits many applications.
Features:
NEW! Softstart Function
NEW! Sanwa SSR compatible
High Voltage
Super strong and precision made unique steel gears provide durability and survive heavy use
Extreme amount of torque in a standard case
Ideal for large scale aircraft, 1/8 off road buggies and trucks and Monster Trucks
Specifications:
Torque @6V: 23kg/cm
Torque @7.4V: 35kg/cm
Speed @6V: 0.13 sec/60 deg
Speed @7.4V: 0.10 sec/60 deg
Torque @8.4V: 40kg/cm
Speed @8.4V: 0.09 sec/60 deg

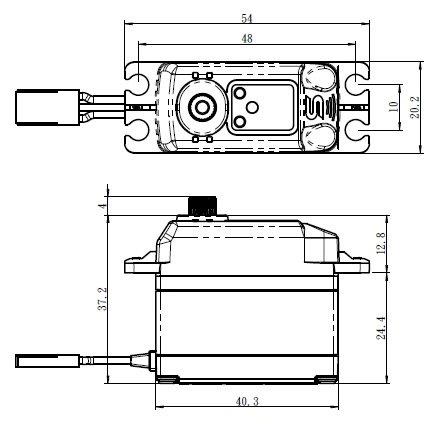

Dimensions L x W x H: 40.3 x 20.2 x 37.2mm
Weight: 63g
Technical Details:
Operating Temperature: 14° - 122°F (-10° - 50°C)
Running Current (no load): 120mA @6.0V, 150mA @7.4V
Stall Current (at locked): 4000mA @6.0V, 5000mA @7.4V
Idle Current: 5mA @4.8V, 5mA @6.0V
Wire Length: 200 ± 5mm
Output Gear Spline: 25 Tooth
Bearings: 2BB
Operating Travel: 100° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 800 → 2200 µ second
Maximum Travel: Appx 130° (900 → 2100 µ second)
Refresh Rate: 333 Hz
Motor Type: Coreless
This is the newly updated Savox SV-1272SG v2 Monster Torque, High Voltage Digital Servo. A very powerful servo in a standard case, the SV1272SG v2 servo fits many applications.
Features:
NEW! Softstart Function
NEW! Sanwa SSR compatible
High Voltage
Super strong and precision made unique steel gears provide durability and survive heavy use
Extreme amount of torque in a standard case
Ideal for large scale aircraft, 1/8 off road buggies and trucks and Monster Trucks
Specifications:
Torque @6V: 23kg/cm
Torque @7.4V: 35kg/cm
Speed @6V: 0.13 sec/60 deg
Speed @7.4V: 0.10 sec/60 deg
Torque @8.4V: 40kg/cm
Speed @8.4V: 0.09 sec/60 deg
Dimensions L x W x H: 40.3 x 20.2 x 37.2mm
Weight: 63g
Technical Details:
Operating Temperature: 14° - 122°F (-10° - 50°C)
Running Current (no load): 120mA @6.0V, 150mA @7.4V
Stall Current (at locked): 4000mA @6.0V, 5000mA @7.4V
Idle Current: 5mA @4.8V, 5mA @6.0V
Wire Length: 200 ± 5mm
Output Gear Spline: 25 Tooth
Bearings: 2BB
Operating Travel: 100° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 800 → 2200 µ second
Maximum Travel: Appx 130° (900 → 2100 µ second)
Refresh Rate: 333 Hz
Motor Type: Coreless
