SAVÖX SV-1281SG Servo 60KG 0,14s HV Alu Brushless Ståldrev
1 197,50 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: SAV-SV1281SG
SAVÖX SAV-SV1281SG - SV-1281SG Servo 60KG 0.14s HV Alu Brushless Steel Gears
Engineered for the extreme demands of large-scale aircrafts
The SV-1281SG is a powerhouse servo designed specifically for large airplanes and jets. Its high torque output and brushless efficiency provide the strength and reliability required for demanding flight conditions. With its full aluminium case, steel gear train, and precise control response, this servo is built to deliver stable performance in advanced aircraft where precision and trust matter most.
Monster Line
The pinnacle of Team Savox engineering - the Monster Line features our most advanced servos, built for drivers, pilots, and racers who demand the absolute best in torque, speed, and durability. With high-voltage brushless motors, steel gears, and optimized internals, Monster Line servos dominate in everything from 1/8 racing to high-load surface builds and heavy-duty off-road. Its performance without compromise.
High Torque Performance
Over 80kg/cm of torque at 8.4V built to move large control surfaces with authority.
Full Aluminum Case
CNC-machined aluminium housing provides excellent cooling and reliability during extended flights.
Coreless Power
Coreless motor ensures efficiency, long life, and stable output for demanding jet and airplane use.

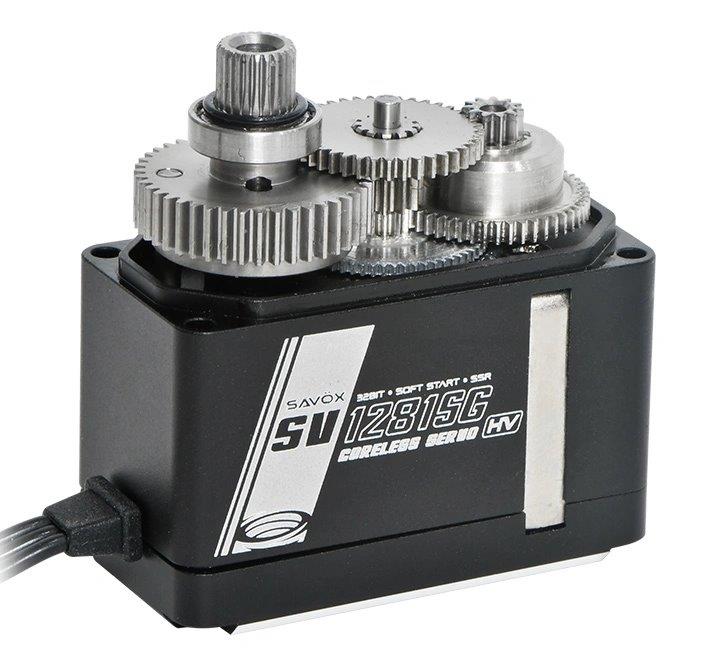

Steel Gears
Reinforced gear train built for precision and strength under continuous aerodynamic load.
Specs:
Line: MONSTER LINE
Application: AIRPLANE
Servo Size: Standard
Operating Voltage: 6.0V-8.4V
Speed @6.0V: 0.18s/60°
Torque @6.0V: 40kg/cm
Speed @7.4V: 0.16s/60°
Torque @7.4V: 50kg/cm
Speed @8.4V: 0.14s/60°
Torque @8.4V: 60kg/cm
Amplifier Type: Digital Controller
Motor Type: Coreless
Case Type: Aluminium
Protection: Water Resistant

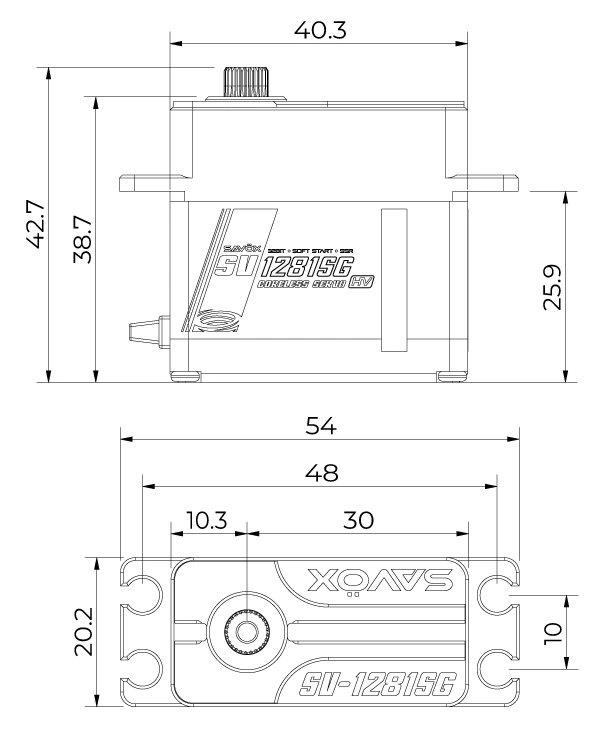

Dimensions: L40.3xW20.2xH38.7mm
Weight: 87g
Gear Type: Specialized Steel
Compatibility: Sanwa SUR & SSR
PCB Board: 32-bit
Horn Gear Spline: 25T (Φ6)
Rotating Direction: Counter clockwise (when 1000→2000μsec)
Max Travel: ~130° (when 800→2200μsec)
Operating Travel: 100° (when 1000→2000μsec)
Neutral Position: 1500μsec
Bearing: 3x Ball Bearings
Potentiometer: VR
Cable Diameter: 22AWG
Cable Length: 300±5mm
Connector: JR
Stall Current @6.0V: 7500mA
Operating Current @6.0V: 180mA
Stall Current @7.4V: 9000mA
Operating Current @7.4V: 200mA
Stall Current @8.4V: 10500mA
Operating Current @8.4V: 250mA
Idle Current: 5mA
Dead Band Width: 3-5μsec
Frequency Range: 50-360Hz
Control System: Pulse Width Modification
Operating Temperature: -10°C to 50°C
Ursprungsland: TW
Servolängd: 40,3 mm
Servobredd: 20,2 mm
Servohöjd: 38,7 mm
Servovikt: 87 g
Servotyp: Standard
Max Drivspänning: 8,4 V
Hastighet vid 6,0V: 0,18 sek/60°
Hastighet vid 7,2/7,4V: 0,16 sek/60°
Styrka vid 6,0V: 40 kg/cm
Styrka vid 7,2/7,4V: 50 kg/cm
Egenskaper: 3 Kullager , Aluminiumhus , Coreless Motor , Digitalt , HV , Soft Start , SSR , Ståldrev , Stänk/Dammskyddad
Levereras med: Servogummin, fästskruvar & servook
