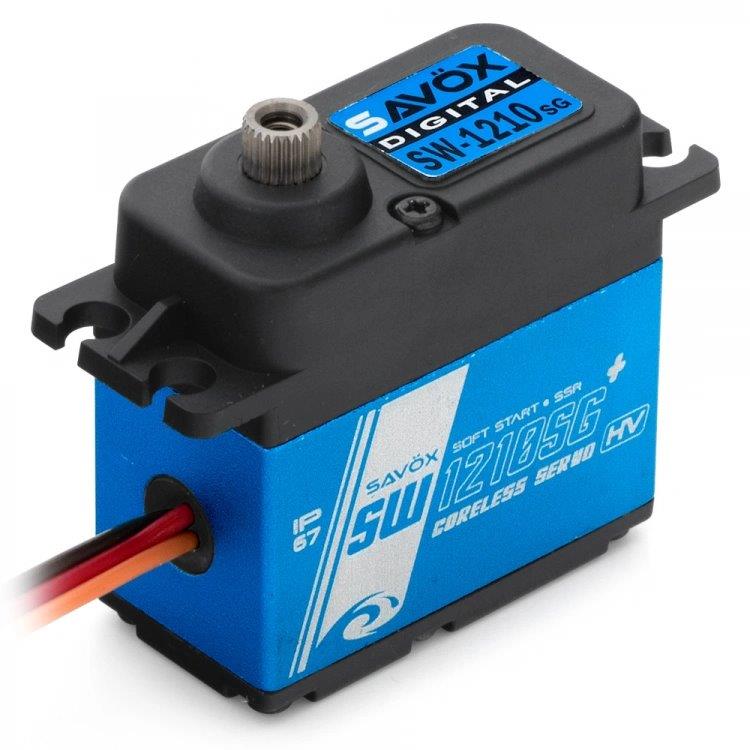

SAVÖX SW-1210SG Plus Servo 32Kg 0,13s HV Alu Coreless Steel Gear WP

SAVÖX SW-1210SGPLUS - Monster Torque High Voltage Water Proof Servo
The SW-1210SG Plus is the premier waterproof digital servo in the Savox Lineup. This coreless servo provides great torque and is a great upgrade if your looking to drive your RC vehicle in any condition...rain, sleet, or snow.

Features:

• New: Soft Start
• High Voltage (Now 8.4V!)
• Strong unique steel gears provide durability and assurance
• Waterproof IP67 construction for harsh elements
• Ideal for cars, trucks and boats subject to water or snow

Specifications:

• Torque @6V: 20kg/cm
• Torque @7.4V: 32kg/cm
• Torque @8.4V: 37kg/cm
• Speed @6V: 0.15 sec/60 deg
• Speed @7.4V: 0.13 sec/60 deg
• Speed @8.4V: 0.12 sec/60 deg

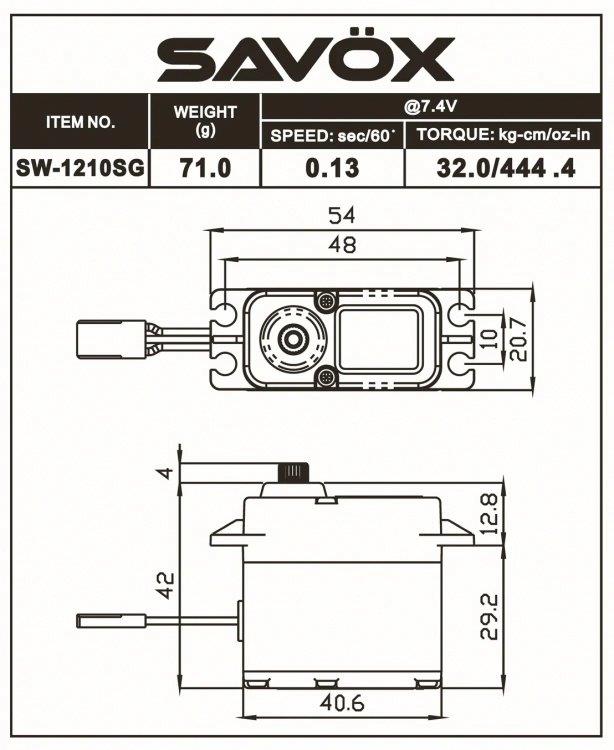

• Dimensions L x W x H: 40.6 x 20.7 x 42mm
• Weight: 71g

Technical Details:

• Operating Temperature: -10° to 50°C
• Running Current (no load): 120mA @6.0V, 150mA @7.4V
• Stall Current (at locked): 6000mA @6.0 V, 7400mA @7.4V
• Idle Current: 5mA @6.0V, 5mA @7.4V
• Wire Length: 150 ± 5mm
• Output Gear Spline: 25 Tooth
• Bearings: 2BB
• Operating Travel: 100° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 800 → 2200 µ second
• Maximum Travel: Appx 130° (900 → 2100 µ second)
• Refresh Rate: 333 Hz
• Motor Type: Coreless

Längd: 40,6 mm
Bredd: 20,7 mm
Höjd: 42 mm
Vikt: 71 g
Max Drivspänning: 8,4 V
Hastighet vid 6,0V: 0,15 sek/60°
Hastighet vid 7,2/7,4V: 0,13 sek/60°
Styrka vid 6,0V: 20 kg/cm
Styrka vid 7,2/7,4V: 32 kg/cm
Egenskaper: Coreless Motor , Digitalt , Dubbla Kullager , HV , Soft Start , SSR , Ståldrev , Vattentätt IP67

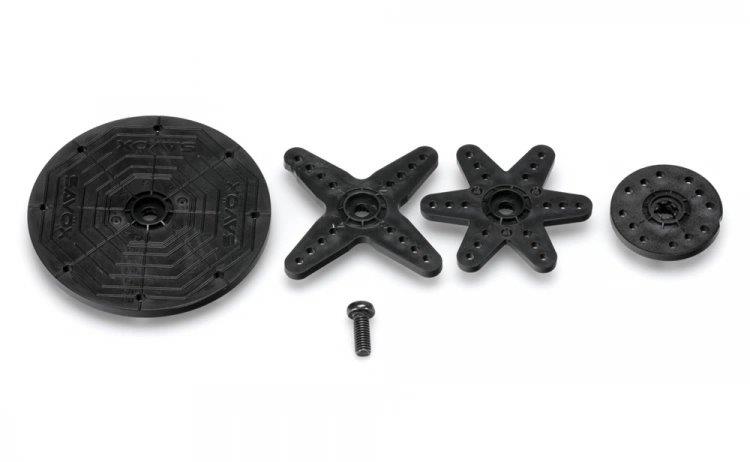

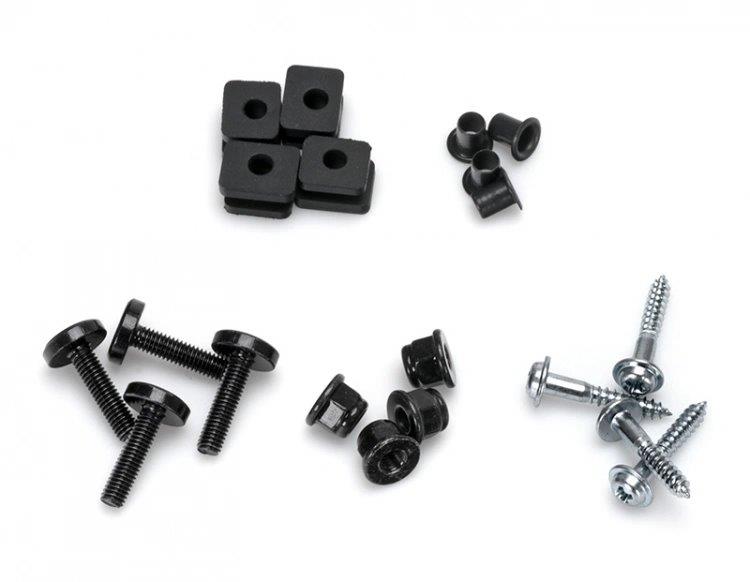

Levereras med: Servogummin, fästskruvar & servook
