SAVÖX SW-1213SG Servo 38Kg 0,16s HV Alu Brushless Ståldrev WP
895 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: SAV-SW1213SG

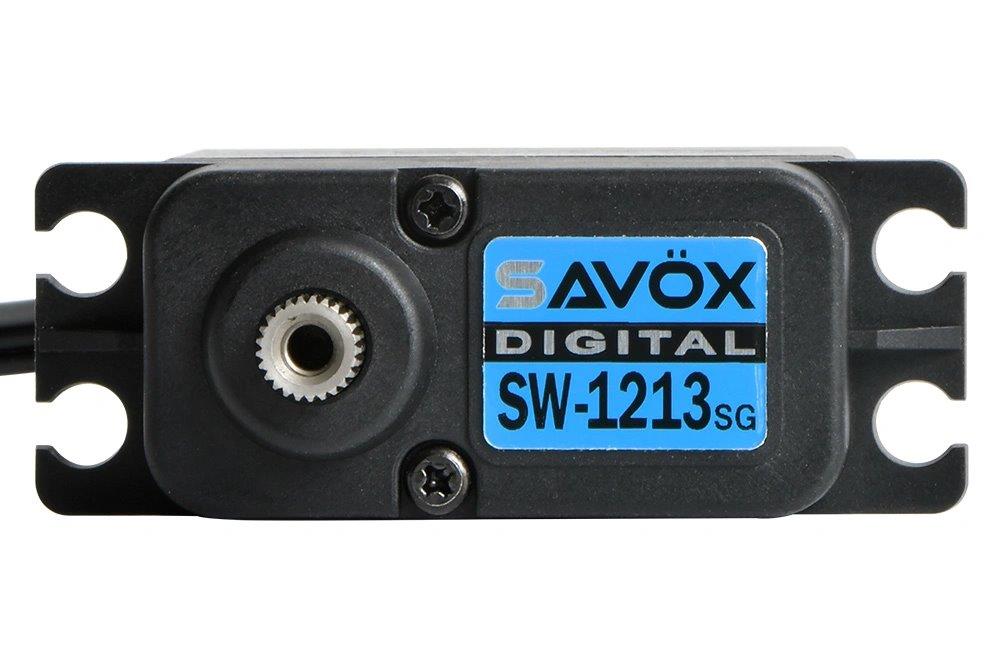

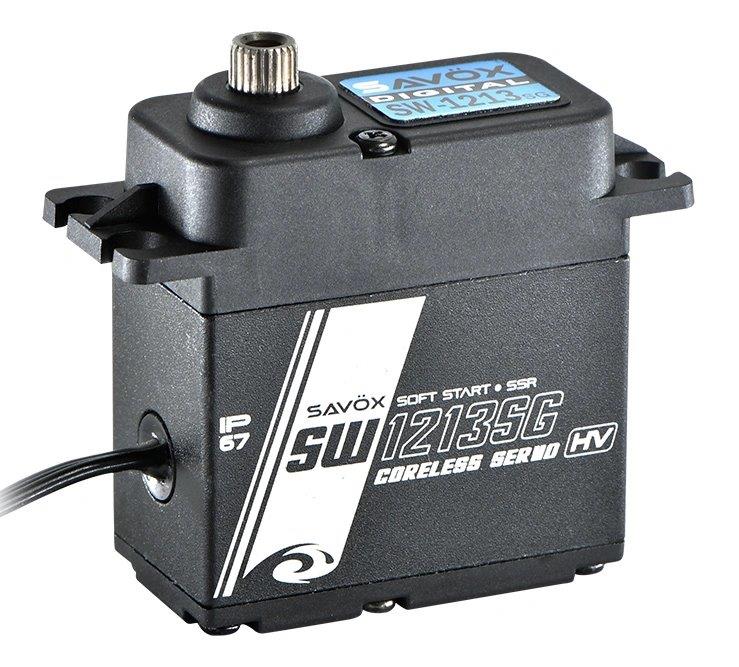

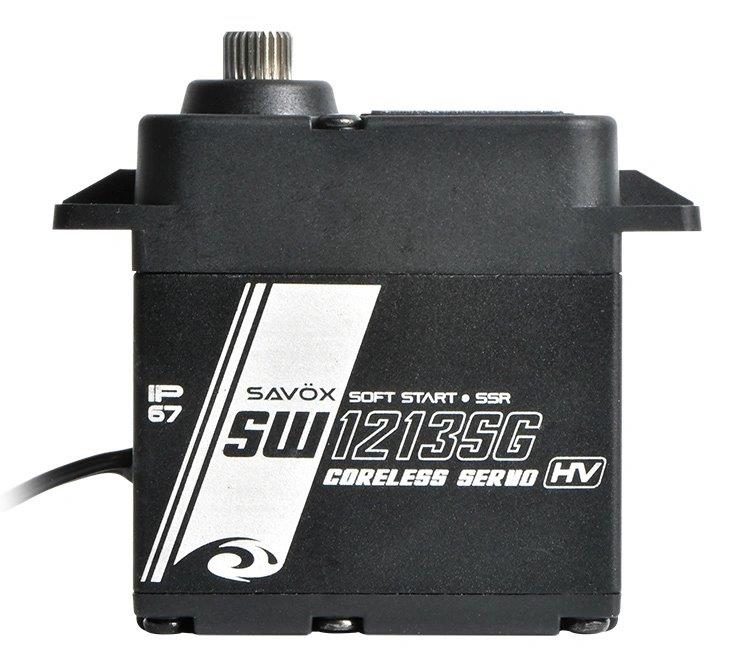

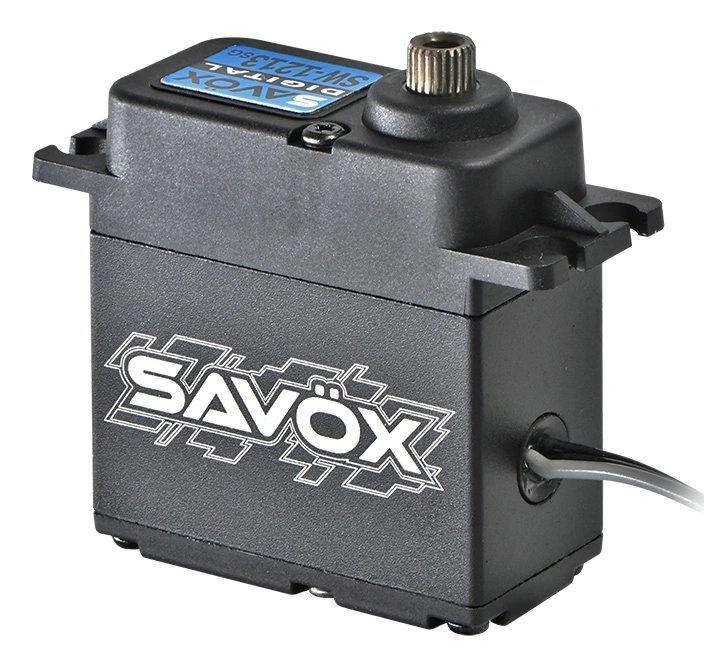

SAVÖX SAV-SW1213SG - SW-1213SG Servo 38Kg 0.16s HV Alu Brushless Steel Gears WP
Blue Line
Built for adventure, the Blue Line is IP67 waterproof-rated and ready for anything. These servos are designed for boats, trail crawlers, and RC builds that encounter mud, water, and extreme terrain. With rugged construction, durable gearing, and high-voltage compatibility, Blue Line servos keep going even when the trail gets rough. When you cant predict the conditions - this is the servo to trust.
Specs:
Line: BLUE LINE
Application: CAR / BOAT
Servo Size: Standard
Operating Voltage: 6.0V-8.4V
Speed @6.0V: 0.19s/60°
Torque @6.0V: 32kg/cm
Speed @7.4V: 0.16s/60°
Torque @7.4V: 38kg/cm
Speed @8.4V: 0.14s/60°
Torque @8.4V: 42kg/cm
Amplifier Type: Digital Controller
Motor Type: Coreless
Case Type: Hybrid (Aluminium/Composite)
Protection: Waterproof (IP67)

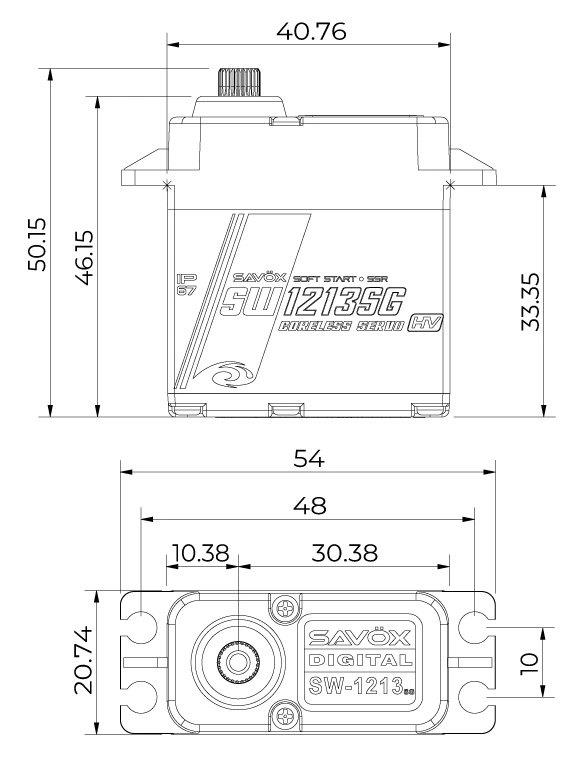

Dimensions: L40.6xW20.7xH46.2mm
Weight: 83g

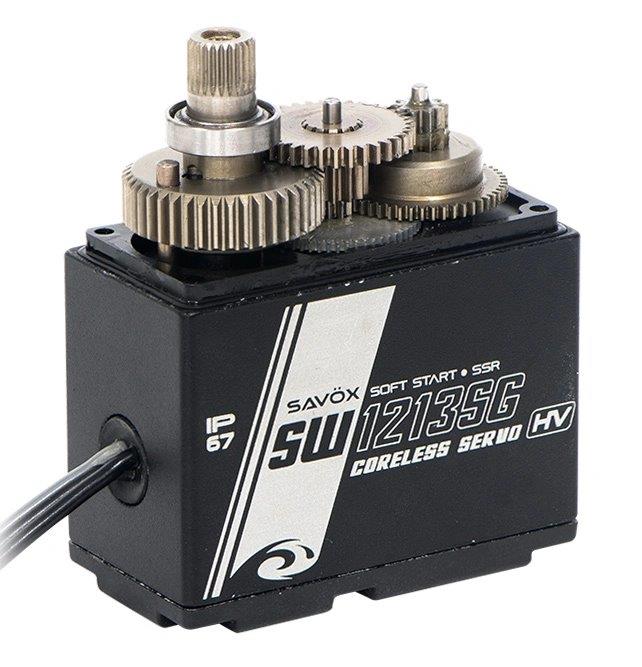

Gear Type: Specialized Steel
Compatibility: Sanwa SSR
PCB Board: 12-bit
Horn Gear Spline: 25T (Φ6)
Rotating Direction: Counter clockwise (when 1000→2000μsec)
Max Travel: ~130° (when 800→2200μsec)
Operating Travel: 100° (when 1000→2000μsec)
Neutral Position: 1500μsec
Bearing: 2x Ball Bearings
Potentiometer: VR
Cable Diameter: 22AWG
Cable Length: 450±5mm
Connector: JR
Stall Current @6.0V: 4200mA
Operating Current @6.0V: 130mA
Stall Current @7.4V: 5200mA
Operating Current @7.4V: 150mA
Stall Current @8.4V: 6000mA
Operating Current @8.4V: 180mA
Idle Current: 5mA
Dead Band Width: 3-5μsec
Frequency Range: 50-360Hz
Control System: Pulse Width Modification
Operating Temperature: -10°C to 50°C
Ursprungsland: TW
