SAVÖX SW-1240SG Servo 65Kg 0,17s HV Alu Brushless Ståldrev WP
1 480 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: SAV-SW1240SG
Savöx SW-1240SG - Large Scale IP67 Coreless HV Monster Servo 0.17s 65kg/cm
Built for 1/5 performance
The new SW-1240SG combines Rhino-size fitment, IP67 protection, and next-gen coreless power to dominate large-scale competition.
Blue Line
Built for adventure, the Blue Line is IP67 waterproof-rated and ready for anything. These servos are designed for boats, trail crawlers, and RC builds that encounter mud, water, and extreme terrain. With rugged construction, durable gearing, and high-voltage compatibility, Blue Line servos keep going even when the trail gets rough. When you cant predict the conditions - this is the servo to trust.
IP67 Waterproof Design
Fully sealed for use in wet, muddy, or dusty 1/5-scale racing environments.
Coreless Power
New-generation high-efficiency coreless motor provides strong torque and smooth response.
Rhino-Size Format
Fully sealed for use in wet, muddy, or dusty 1/5-scale racing environments.

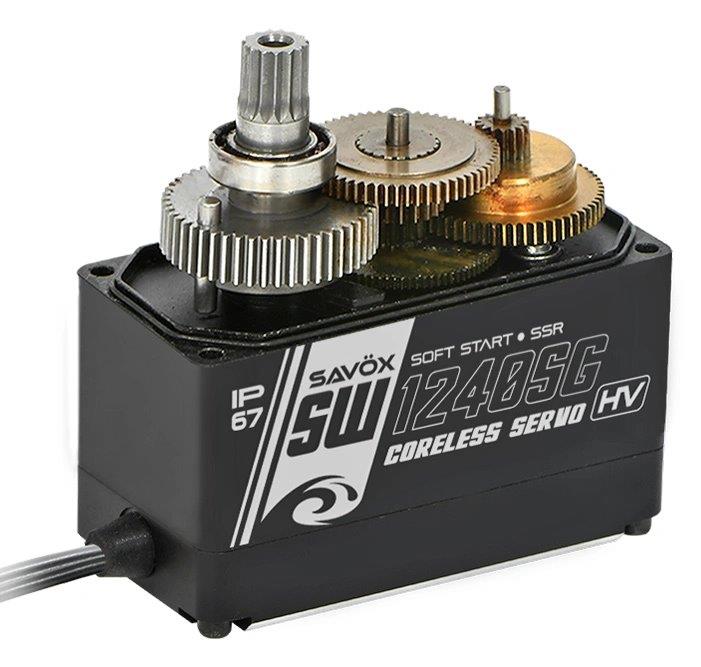

Specialized Steel Gears
Delivers long-term durability and reliability under extreme load.
Specs:
Line: BLUE LINE
Application: Car/Boat
Servo Size: Large
Operating Voltage: 6.0-8.4V
Speed @ 6.0V: 0.2s/60°
Torque @ 6.0V: 50kg/cm
Speed @ 7.4V: 0.17s/60°
Torque @ 7.4V: 65kg/cm
Speed @ 8.4V: 0.15s/60°
Torque @ 8.4V: 75kg/cm
Amplifier Type: Digital Controller
Motor Type: Coreless
Case Type: Aluminium
Protection: Waterproof (IP67)

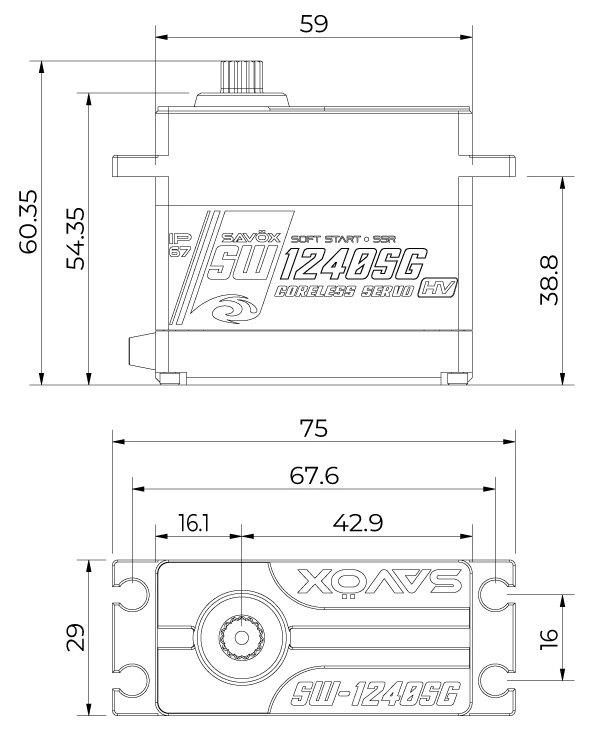

Dimensions (L x W x H): 59x54.35x29mm
Weight: 196g
Gear Type: Specialized Steel
Compatibility: Sanwa SSR
PCB Board: 32-bit
Horn Gear Spline: 15T (Φ7.8mm)
Rotating Direction: Counterclockwise (when 1000→2000μsec)
Max Travel: ~130° (when 800→2200μsec)
Operating Travel: 100° (when 1000→2000μsec)
Neutral Position: 1500μsec
Bearings: 2x Ball Bearings
Potentiometer: VR
Cable Diameter: 22AWG
Cable Length: 450 ±5mm
Connector: JR Connector
Stall Current @ 6.0V: 5000mA
Operating Current @ 6.0V: 150mA
Stall Current @ 7.4V: 6000mA
Operating Current @ 7.4V: 180mA
Stall Current @ 8.4V: 7000mA
Operating Current @ 8.4V: 200mA
Idle Current: 6mA
Dead Band Width: 3-5 μsec
Frequency Range: 50-360 Hz
Control System: Pulse width modification
Operating Temperature: -10°C to 50°C
Partistorlek: 1
Ursprungsland: TW
