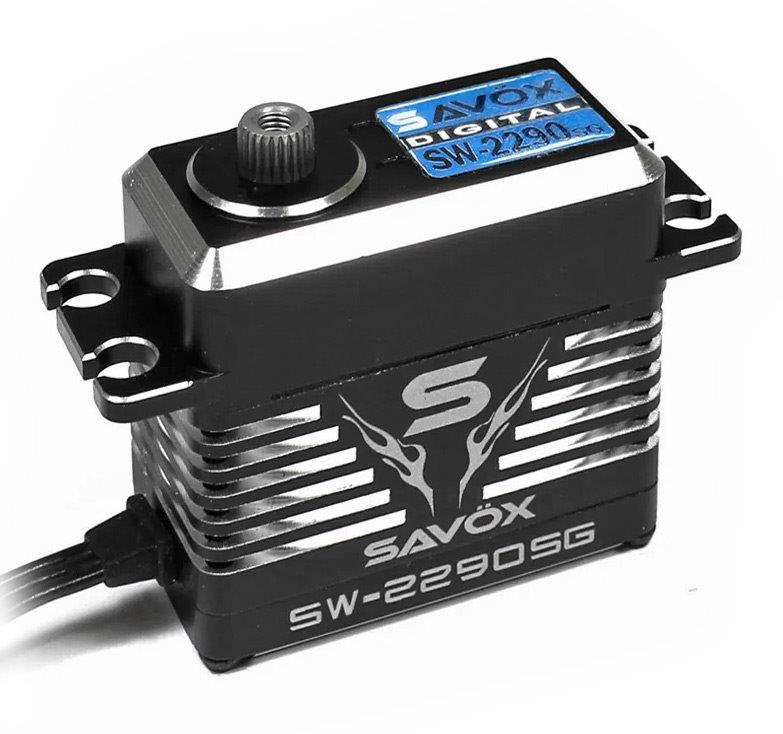

SAVÖX SW-2290SG Servo 70Kg 0,11s HV Alu Brushless Ståldrev WP

SAVÖX SAV-SW2290SG - Waterproof Monster Torque High Voltage, Brushless, Digital Servo 0.11s / 70kg/cm @ 8.4v
The powerful "Monster" performance series from Savox utilize an all aluminum case, unique brushless motor and controller technology to boost power up to 35% over previous generation servos.

Features:

• Waterproof (IP67)
• Full Aluminum Case
• 3 Precision Ball Bearings
• Unique steel gears

Specifications:

• Torque @ 6v: 45kg
• Torque @ 7.4v: 55kg
• Torque @ 8.4v: 70kg
• Speed @ 6v: 0.16s/60°
• Speed @ 7.4v - 0.13s/60°
• Speed @ 8.4v - 0.11s/60°

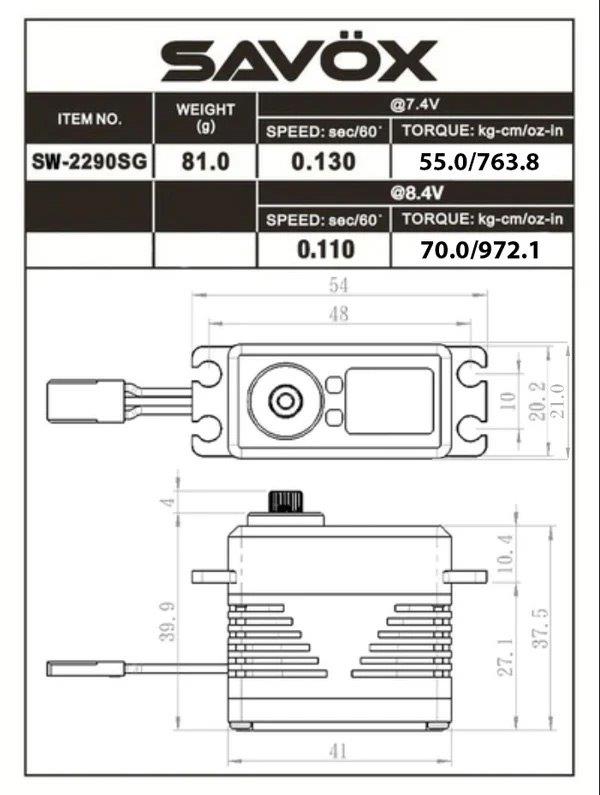

• Dimensions L x W x H: 41 x 21 x 39.9mm
• Weight: 81g

Technical:

• Operating Temperature: -10° - 50°C
• Running Current (no load): 180mA @6.0V, 220mA @7.4V, 220mA @8.4V
• Stall Current (at locked): 7500mA @6.0V, 9200mA @7.4V, 10500mA @8.4V
• Idle Current: 5mA @6.0V, 5mA @7.4V, 5mA @8.4V
• Wire Length: 300 +/- 5mm
• Output Gear Spline: 25 Tooth
• Bearings: 2BB
• Operating Travel: 100° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 800 → 2200 µ second
• Maximum Travel: Appx 130° (900 → 2100 µ second)
• Refresh Rate: 333 Hz
• Motor Type: Brushless

Längd: 41 mm
Bredd: 21 mm
Höjd: 39,9 mm
Vikt: 81 g
Max Drivspänning: 8,4 V
Hastighet vid 6,0V: 0,16 sek/60°
Hastighet vid 7,2/7,4V: 0,13 sek/60°
Styrka vid 6,0V: 45 kg/cm
Styrka vid 7,2/7,4V: 55 kg/cm
Egenskaper: 3 Kullager , Aluminiumhus , Borstlös motor , Digitalt , HV , Ståldrev , Vattentätt IP67
Levereras med: Armar , Servogummin, fästskruvar & servook
