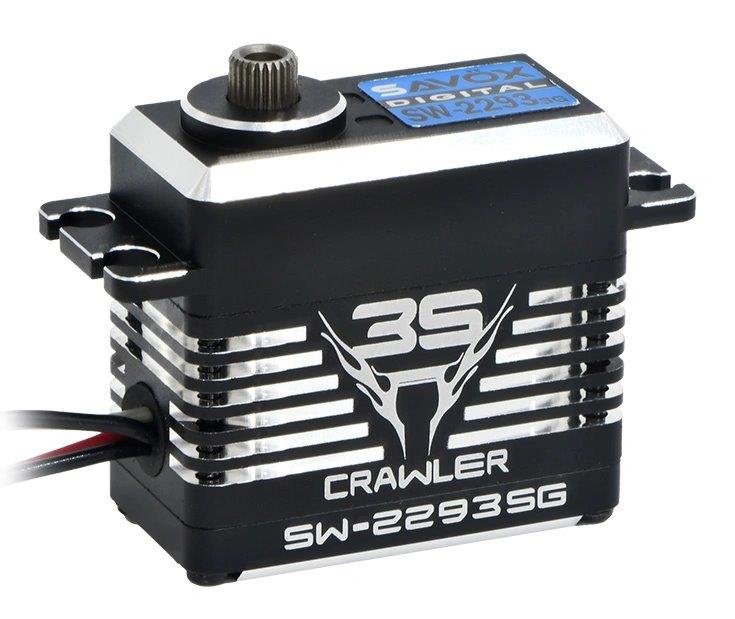

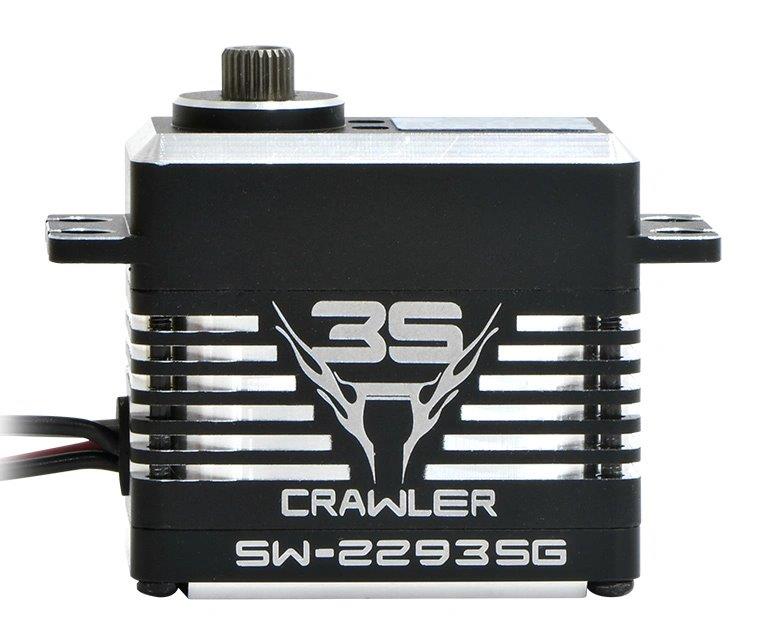

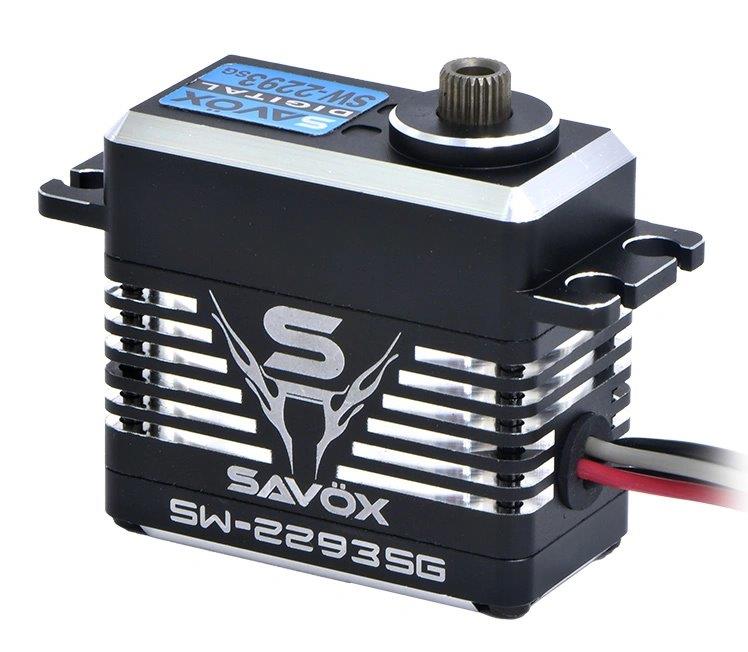

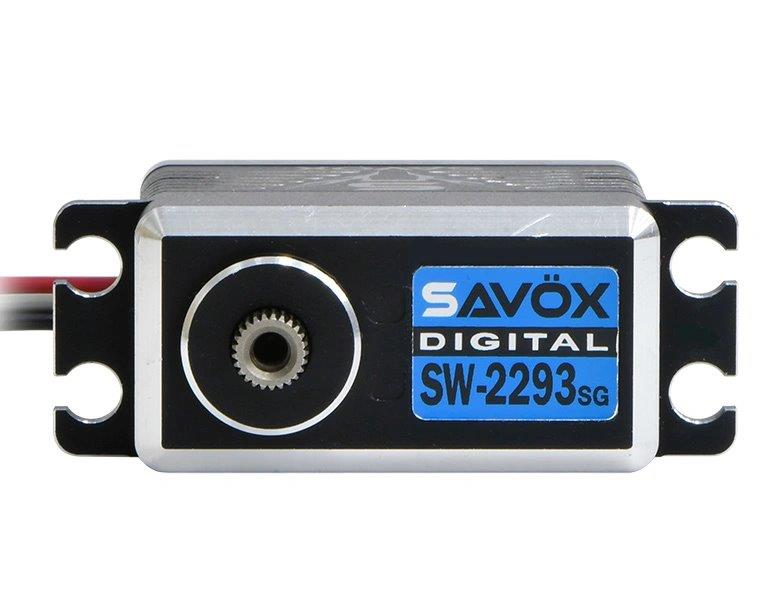

SAVÖX SW-2293SG Crawler Servo 75Kg 3S Powered Alu Brushless Ståldrev WP
1 480 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: SAV-SW2293SG
SAVÖX SAV-SW2293SG - SW-2293SG Crawler Servo 75Kg 3s LiPo Powered Alu Brushless Steelgear WP
Blue Line
Built for adventure, the Blue Line is IP67 waterproof-rated and ready for anything. These servos are designed for boats, trail crawlers, and RC builds that encounter mud, water, and extreme terrain. With rugged construction, durable gearing, and high-voltage compatibility, Blue Line servos keep going even when the trail gets rough. When you cant predict the conditions - this is the servo to trust
Direct Power, 3S Ready
Introducing the SW-2293SG a direct-power servo designed for crawlers using 3S LiPo setups. Runs straight from your LiPo no BEC bottleneck, no compromises.
Watch to learn about the separate power/signal wiring and why this format delivers more torque.

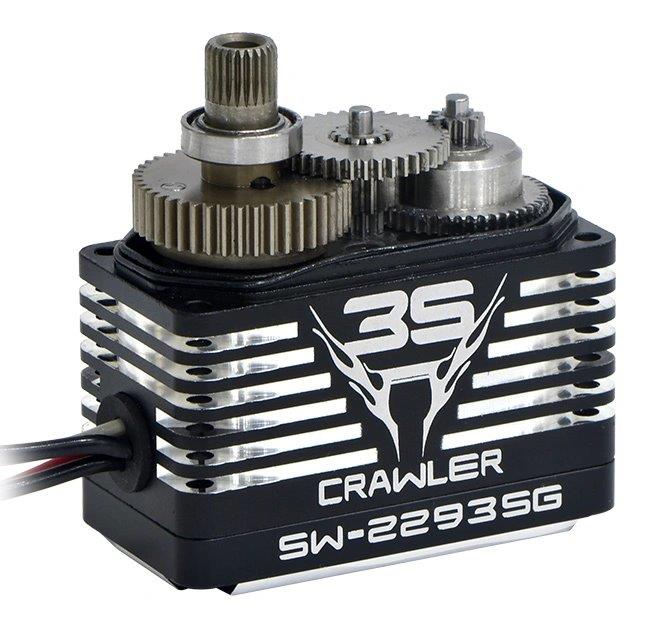

Steel Gear Durability
Rugged gear train engineered to handle shock loads and heavy-duty crawling.
High Torque Output
Over 70kg/cm at 12.6V, delivering strength for demanding crawler applications.
IP67 Waterproof
Built to withstand mud, water, and extreme trail conditions.
Specs:
Line: BLUE LINE
Application: CAR / BOAT
Servo Size: Standard
Operating Voltage: 12.6V (3s LiPo)
Speed @12.6V: 0.11s/60°
Torque @12.6V: 75kg/cm
Amplifier Type: Digital Controller
Motor Type: Patented Lightweight Brushless
Case Type: Aluminium
Protection: Waterproof (IP67)

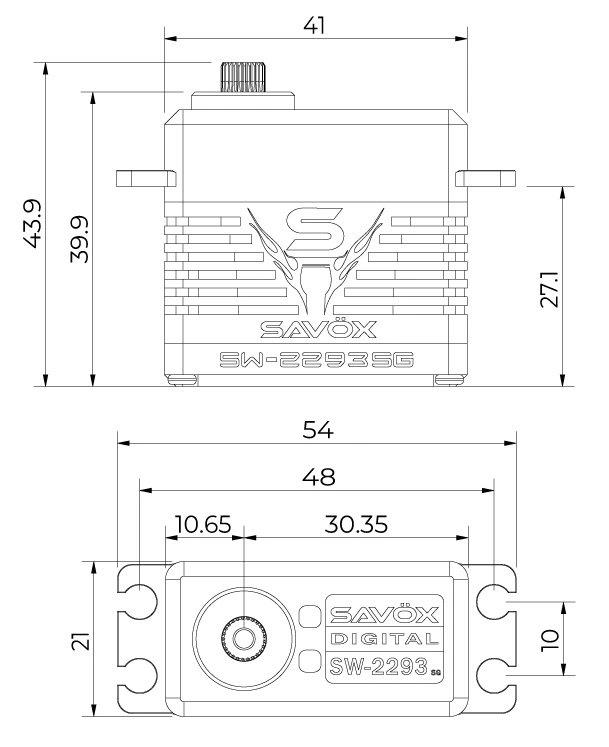

Dimensions: L41xW21xH39.9mm
Weight: 90g
Gear Type: Specialized Steel
Compatibility: Sanwa SUR & SSR, Futaba UR & SR
PCB Board: 32-bit
Horn Gear Spline: 25T (Φ6)
Rotating Direction: Clockwise (when 1000→2000μsec)
Max Travel: ~180° (when 600→2400μsec)
Operating Travel: 100° (when 1000→2000μsec)
Neutral Position: 1500μsec
Bearing: 3x Ball Bearings
Potentiometer: VR
Cable Diameter: 22AWG
Cable Length: 450±5mm
Connector: JR
Stall Current @12.6V: 6500mA
Operating Current @12.6V: 100mA
Idle Current: 5mA
Dead Band Width: 3-5μsec
Frequency Range: 50-360Hz
Control System: Pulse Width Modification
Operating Temperature: -10°C to 50°C
Ursprungsland: TW
Servolängd: 41 mm
Servobredd: 21 mm
Servohöjd: 39,9 mm
Servovikt: 90 g
Servotyp: Standard
Max Drivspänning: 12,6 V
Egenskaper: 3 Kullager , Aluminiumhus , Borstlös motor , Digitalt , HV , SSR , Ståldrev , Super Response , Ultra Response , Vattentätt IP67
Levereras med: Servogummin, fästskruvar & servook
