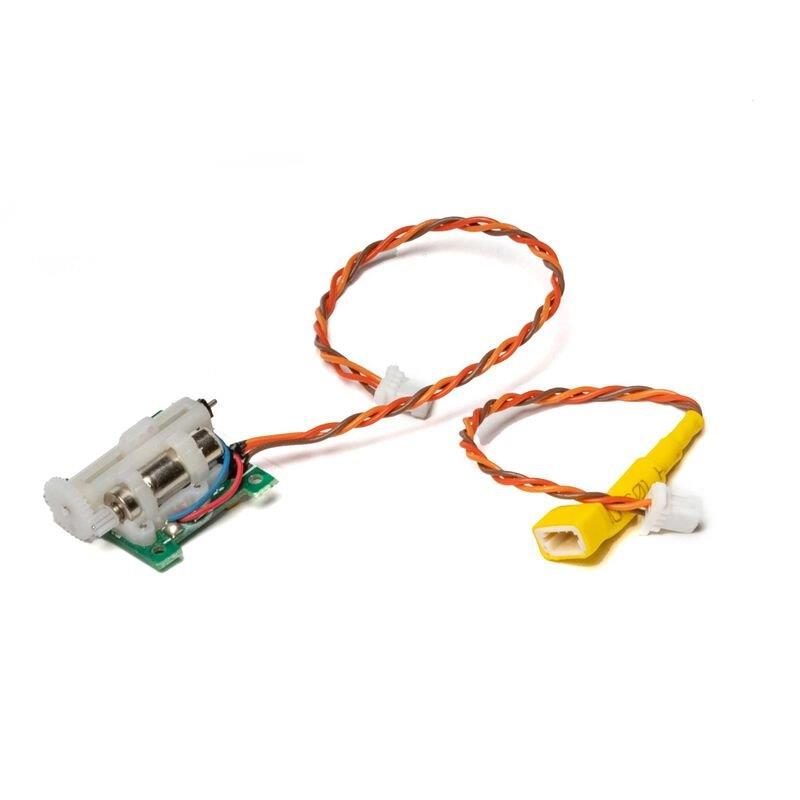

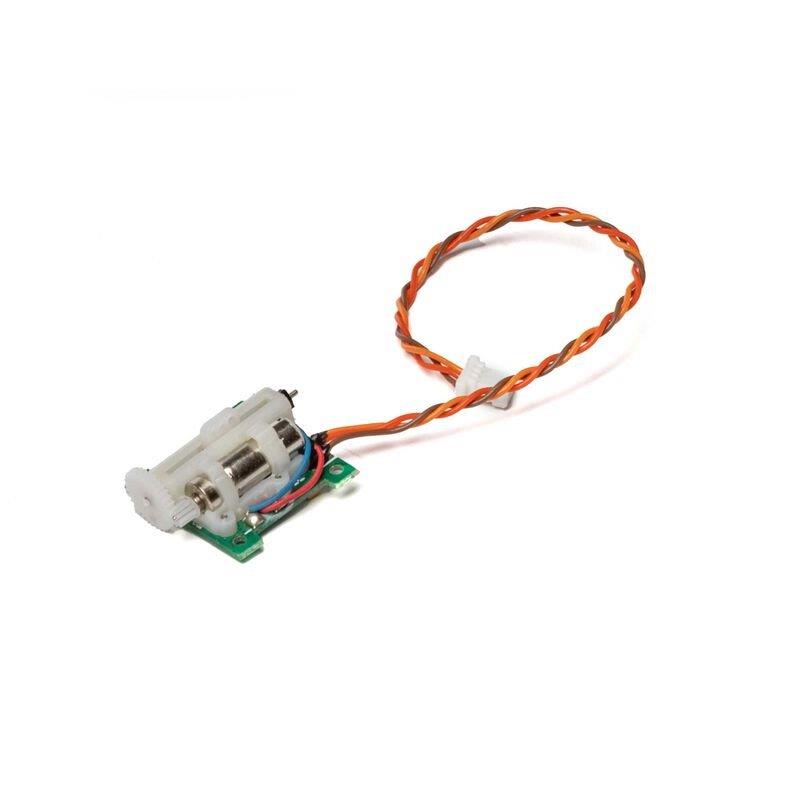

Spektrum A2005 Ultra-Micro Analog 1.8g Linear Aircraft Servo

Product Details

Key Features
• Weighing only 1.8 grams, this servo is incredibly lightweight
• DSM2 technology- can be used with AR6400 and AR6410 series receivers
• Compact footprint makes it extra-versatile in Ultra-Micro applications
• 9.1mm servo throw allows for aerobatic flight performance

Overview
Designed to work in conjunction with Spektrum’s AR6400 & AR6410 series of Ultra-Micro Receiver, this linear servo plugs into an open port to expand the installation options on your Ultra-Micro aircraft. Each servo comes with a linear servo reverser (SPM6825).

Product Specifications:
Motor Type: Brushed
Servo Operating Voltage: 3.2 - 4.2V
Bushing Or Bearing: Bushing
Gear Type: Nylon
Connector Type: JST-SHR
Maximum Servo Speed: 0.14 sec @ 4.2V
Product Length: 0.6" (15 mm)
Maximum Servo Torque: 2.8 oz (79.4g) @ 4.2V
Programmable: No
Servo Size Category: Ultra Micro
Product Width: 0.59" (15 mm)
Application: Air
Product Weight: 0.06oz (1.80g)
Water-Resistant: No
Product Application: Air
Product Height: 0.33" (8 mm)
Servo Type: Analog
