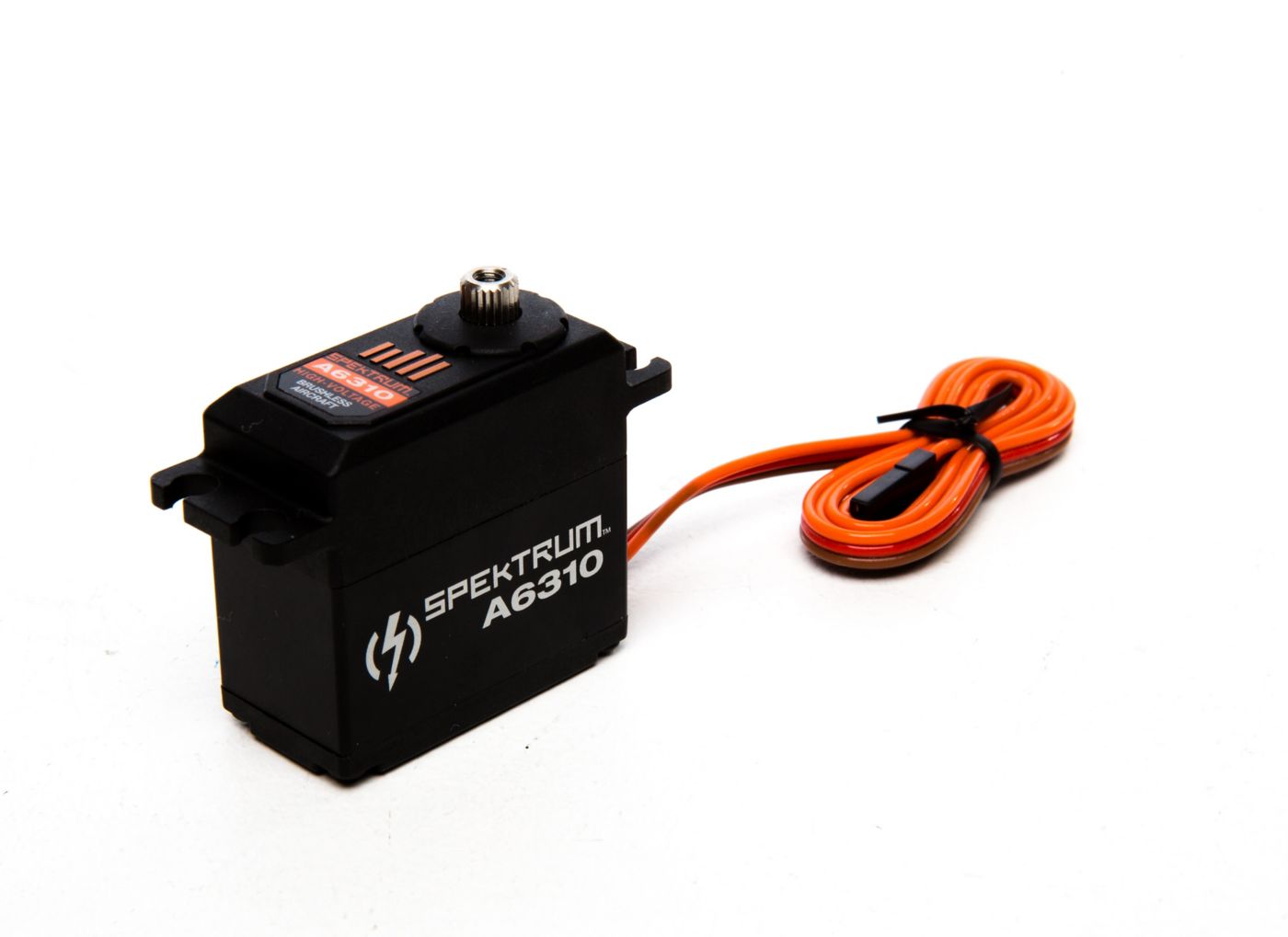

Spektrum A6310 Ultra Torque High Speed Metal BL HV Servo
1 919 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: SPMSA6310
Product Details
Key Features
High Voltage (HV) capable (6.0-8.4v input range)
Outstanding torque and speed in a standard servo size (350 oz-in and .10 sec/60° @8.4v)
Durable and long lasting brushless motor
Low wear and tightly meshed all metal gear train
Dual bearing supported drive train helps maximize smooth operation
Aluminum center servo case helps keep operating temperatures low
Soft start helps prevent component and airframe damage during un-intentional initializations
Over Current and Temperature protection
Helpful initialization start tone lets pilot know when the servo is ready
Integrated servo failsafe holds last known position if signal is lost and power is maintained
Frequency : 50-400hz
Overview
Spektrum high-voltage, brushless servos deliver dependable power and digital precision with amazing efficiency. Finely tuned electronics and software combine with powerful brushless motor technology to offer ultra-smooth performance more efficiently than servos with conventional motors. The aluminum center section allows any heat within the servo to dissipate rapidly while high-strength metal gears and high-impact polymer case components deliver a precision instrument thats hassle-free.
The Spektrum A6310 uses this solid foundation, plus additional inner support, to achieve an outstanding balance of power, durability and value, in addition to the peace-of-mind over-current and over-temperature protection offers. Its a brilliant feature combination that makes this servo an outstanding choice for 60-120cc Aerobatic models and most sport flying Giant Scale models.
Product Specifications:
Connector Type: Universal
Maximum Servo Speed: 0.12 sec/60 deg @ 6.0V; 0.11 sec/60 deg @7.4V; 0.10 sec/60 deg @ 8.4V
Product Length: 1.49" (38 mm)
Deadband: 3µs
Product Application: Air
Product Height: 1.57" (40 mm)
Servo Type: Digital
Motor Type: Brushless
Servo Operating Voltage: 6.0 - 8.4V (HV)
Bearing: Dual Ball Bearing
Bushing Or Bearing: Bearing
Gear Type: Metal
Application: Airplane
Overload Protection: Yes
Product Weight: 2.5 oz (71 g)
Spline Count: 23 Teeth
Water-Resistant: No
Connector Wire Length: 18.1" (460 mm)
Product Width: 0.79" (20 mm)
Programmable: No
Servo Size Category: Standard
Maximum Servo Torque: 192.4 oz-in (13.8 kg-cm) @ 6.0V; 302.1 oz-in (21.8 kg-cm) @ 7.4V; 350.0 oz-in (25.2 kg-cm) @ 8.4V
