Futaba Vingservo Segelflyg F3K 2.5kg 0.065s HV S.BUS2
1 209 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: FPS-AG300

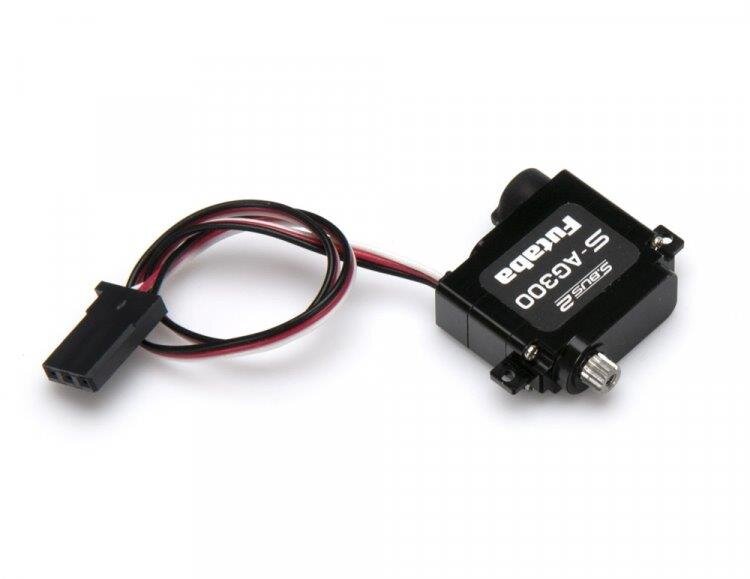

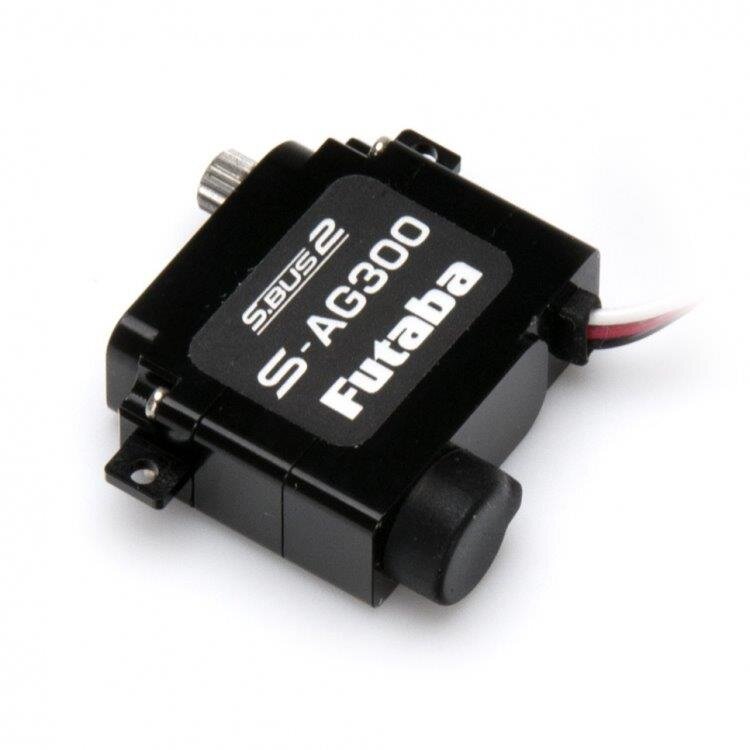

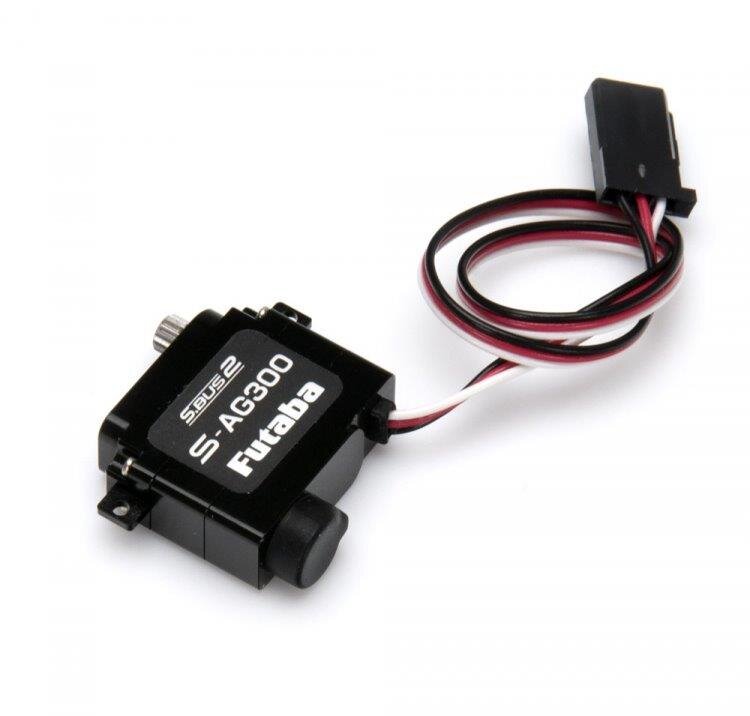

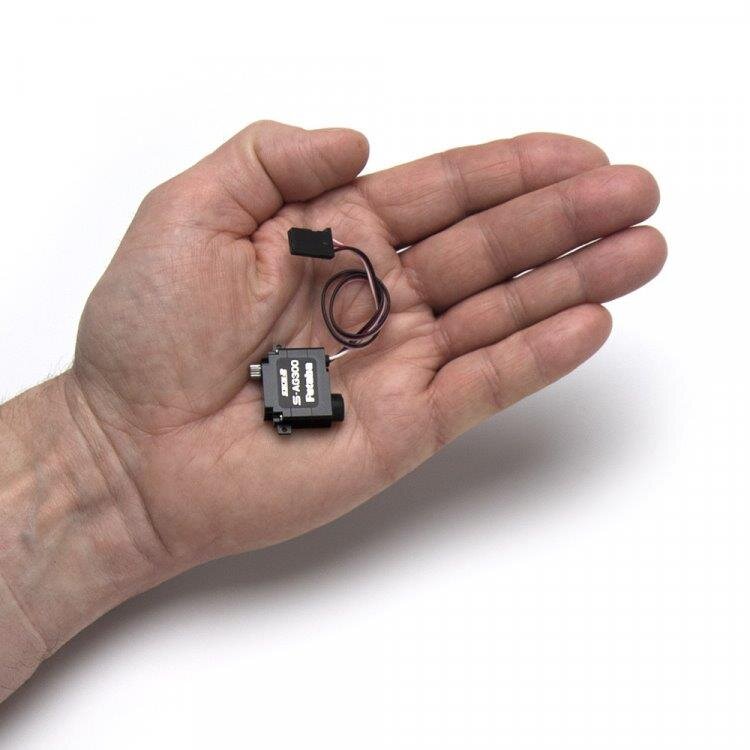

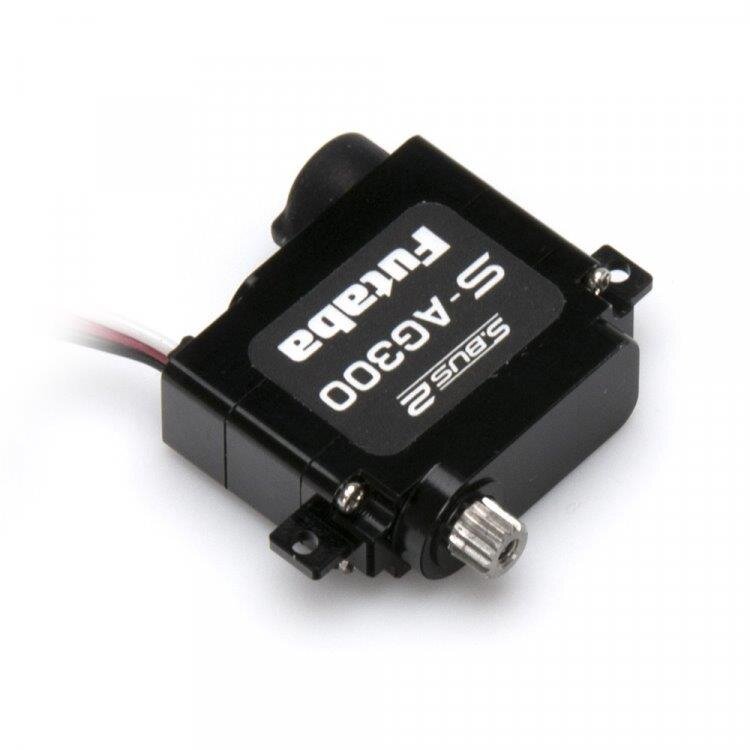

Futaba S-AG300 - Glider (F3K) Wing Servo 8mm
This is the new high performance 8mm thick wing servo for gliders. The "S-AG300" was developed as a servo for F3K and hand launch gliders and it is thin and lightweight and has the performance specialized for this category.
Specs:
Use: Glider / F3K
Dimensions: L23.5 × W8.0 × H19.7 mm
Weight: 10.8 g
Rated Voltage: 4.8 ～ 7.4 V
Operating Voltage: 3.8 ～ 8.4 V
Torque @ 7.4 V: 2.5 kg/cm
Torque @ 3.8 V: 1.5 kg/cm
Speed @ 7.4 V: 0.065 s/60°
Speed @ 3.8 V: 0.130 s/60°
Motor: Coreless
Case: All aluminum
Gears: Metal
Bearings: 2x BB
Dust/Water Resistance: N/A
Comunication Interface: PWM/S.BUS2
Längd: 23,5 mm
Bredd: 8 mm
Höjd: 19,7 mm
Vikt: 10,8 g
Max Drivspänning: 7,4 V
Hastighet vid 4,8V: 0,09 sek/60°
Hastighet vid 7,2/7,4V: 0,065 sek/60°
Styrka vid 4,8V: 2,1 kg/cm
Styrka vid 7,2/7,4V: 2,5 kg/cm
Egenskaper: Aluminiumhus , Coreless Motor , Digitalt , Dubbla Kullager , HV , Metalldrev , S.Bus2
