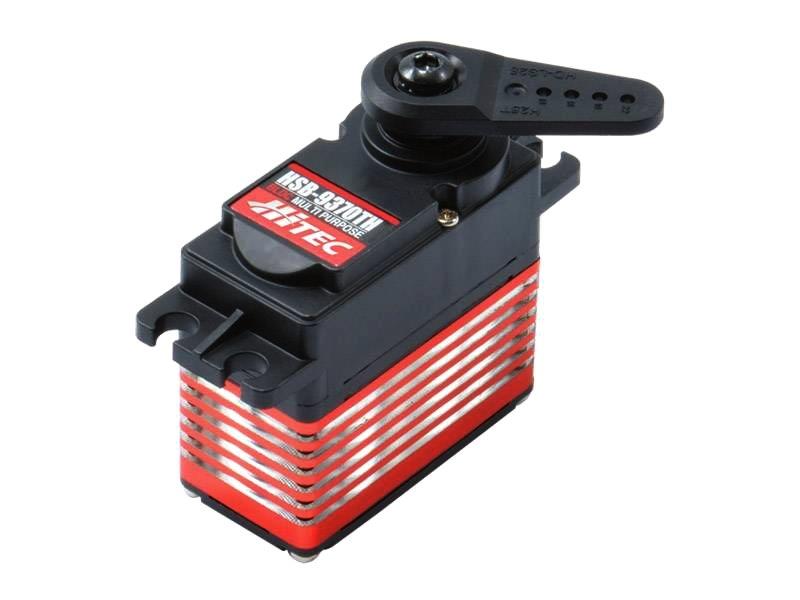

Hitec HSB-9370TH 0.12/25kg vid 6V HV Brostlöst

Product Description With ultra-efficient brushless motors, titanium gear trains, low current consumption and constant output power, the HSB-93XX series of servos is the perfect match for the most discriminating pilots and racers. Features: • Programmable 12-Bit PWM Digital Amplifier • Custom Long Life Brushless Motor • 1M Cycle Long Life Potentiometer • Constant Output Torque • Wide Operating Voltage (5 ~ 9 Volts DC) • Dual Ball Bearing Supported Output Shaft • Dust Resistant and Splash Proof Case • 25-Tooth Output Spline • Hybrid Nylon Reinforced Plastic and Aluminum Case • Low Power Consumption Programmable Functions: • End Point Adjustments • Direction • Fail Safe • Dead Band • Speed (Slower) • Soft Start Rate • Data Save / Load • Program Reset (From File) Accessories: • 3 Titanium / Steel Gears Set | Link | • Metal / Plastic / Duralumin Hybrid 1st Gear Set | Link | • Plastic / Aluminum Case Set | Link | • Applicable Horns | Link 1 • 2 • 3 | HS-9370TH Servo Specifications: Performance Specifications Operating Voltage Range (Volts DC) 6.0V ~ 7.4V Speed (Second @ 60°) 0.12 ~ 0.10 Maximum Torque Range oz. / in. 347 Maximum Torque Range kg. / cm. 25 Current Draw at Idle 27 mA No Load Operating Current Draw 250 mA Stall Current Draw 2,100 mA Dead Band Width 1 µs Physical Specifications Dimensions (Inches) 1.57 x 0.79 x 1.50 Dimensions (Metric) 40.0 x 20.0 x 38.0 Weight (Ounces) 2.4 Weight (Gram) 68.0 Circuit Type EBL Digital Motor Type Brushless Gear Material Titanium Bearing Type Dual Ball Bearing Output Shaft (type / Ømm) H25T Case Material Plastic / Aluminum Dust / Water Resistance Splash Proof Connector Gauge (AWG) / Strand Count 20 / 80 Radio Control Applications Parkflyer N / A Sport Plane 30 - 40% Sailplane 2 meters and up 3D Performance 30 - 40% Scale 30 - 40% Electric Helicopter 700mm and up Gas Helicopter 90+ Class On Road 1/8th Monster Truck 1/8th Buggies 1/8th Truggies 1/8th Short Course / Truck 1/8th Crawlers N / A Sail Boat = >:1M &: Scale Power Boat 1/10th
