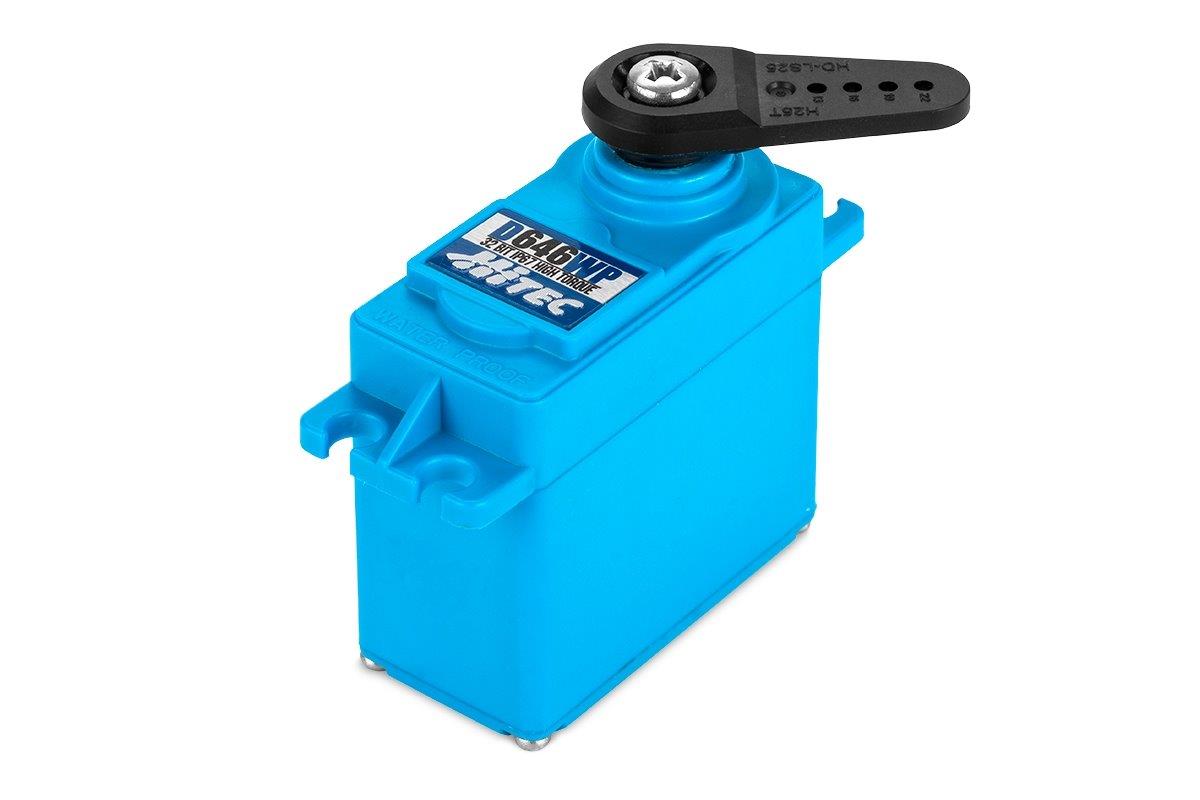

Hitec Servo D646WP 0.16/11.6kg vid 7.4V

Product Description Our waterproof servos have what it takes to keep your radio control vehicle, airplane or robot watertight! With high torque, dual ball bearings and metal gears, our digital waterproof servos have the industry’s first IP67* rating ranking them among the most durable and reliable servos for wet conditions. Whether you are manning your power boat, bashing in the mud, directing your underwater robot, or water landing your 25% plane, the D646WP will dependably keep your mind at ease. This is the upgraded version of the HS-5646WP Features • Industry's First IP67-Rated Waterproof Case • Strong Three-Pole Ferrite Motor • Metal Gear Train with MP First Gear • Dual Ball Bearing-Supported Output Shaft • 7.4v 2-Cell LiPo Capability • Standard Programmable Digital Circuitry Programmable Functions • End Point Adjustments • Direction • Fail Safe • Dead Band • Speed (Slower) • Data Save / Load • Program Reset D646WP Servo Specifications Performance Specifications Operating Voltage Range (Volts DC) 6.0V ~ 7.4V Speed (Second @ 60°) 0.20 ~ 0.18 Maximum Torque Range oz. / in. 157 ~ 179 Maximum Torque Range kg. / cm. 11.3 ~ 12.9 Current Draw at Idle 4.5 mA No Load Operating Current Draw 330 mA Stall Current Draw 2,100 mA Dead Band Width 4 µs Physical Specifications Dimensions (Inches) 1.65 x 0.83 x 1.57 Dimensions (Metric) 41.8 x 21.0 x 40.0 Weight (Ounces) 2.15 Weight (Gram) 61.0 Circuit Type G1 Programable Digital Motor Type 3 Pole Metal Brush Ferrite Gear Material Metal Bearing Type Dual Ball Bearing Output Shaft (type / Ømm) Standard 24 Case Material Plastic Dust / Water Resistance IP 67 Connector Gauge (AWG) / Strand Count 22 / 60
