Art.nr: DS165
Indeed, a DS servo equipped with a Hall sensor.

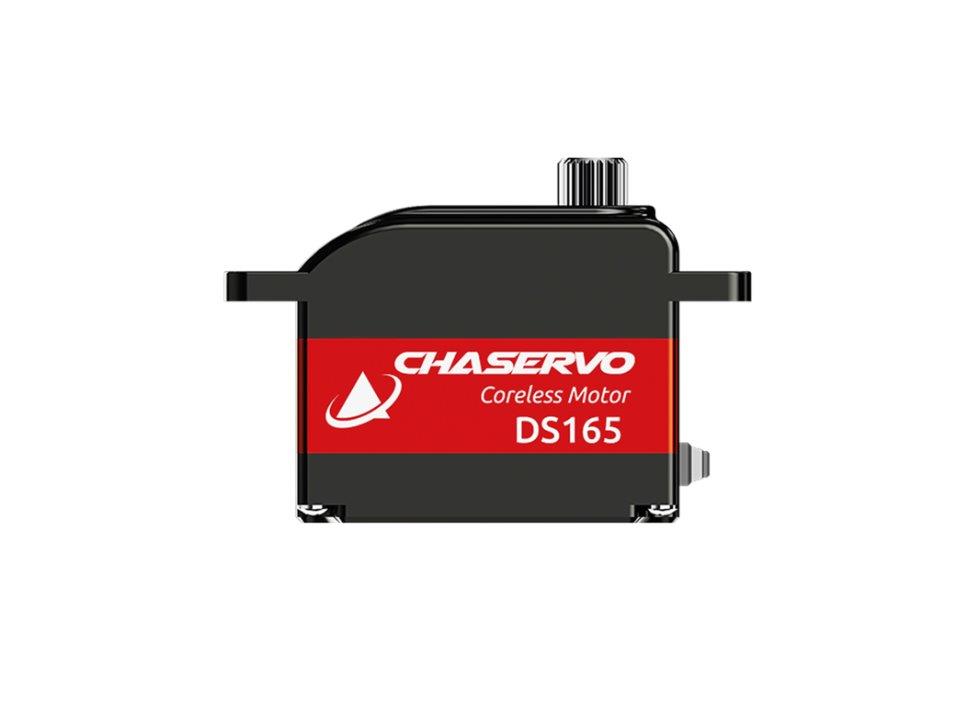

16.5 mm 9 kg DS Servo
The Chaservo DS165 is a first-class 16.5mm digital servo, equipped with double ball bearings and a robust metal gearbox. This fast, powerful and precise DS servo is suitable for all model building applications. The enormous speed also makes the DS165 interesting for helicopter applications.
The extensive voltage range from 3.3V to 9V makes the programmable Chaservo DS165 a reliable, versatile all-round servo with impressive performance characteristics.
In the high-voltage range, the servo has an enormous positioning time of just 0.055s/60° at 8.4V. The aluminum-reinforced, high-strength technopolymer housing ensures long-lasting and reliable vibration damping.
Robust and precise design
________________________________________
The Chaservo DS165 is made from high-quality materials and has a robust design. The hardened steel gearbox is wear-resistant and ensures a long service life.
The holding force of up to 9 kg at 8.4 V enables even heavy loads to be moved effortlessly. The turning speed of 0.055 seconds at 8.4 V is exceptionally fast.
Versatile and fast
________________________________________
The Chaservo DS165 is suitable for a wide range of applications. It is ideal for RC vehicles, airplanes, boats and other models that require high performance and precision. The high speed also makes the DS165 interesting for helicopter applications.
Dimensions: 1.25 x 0.64 x 1.04 in (32 x 16.5 x 26.5 mm)
Weight: 1.26 oz (36 g)
Rated Voltage: DC 7.4V
Voltage Range: DC 3.5 9.0V
Holding Torque @ 4.8V: 74.99 ozin (5.4 kgcm)
Holding Torque @ 7.4V: 108.32 ozin (7.8 kgcm)
Holding Torque @ 8.4V: 124.98 ozin (9.0 kgcm)
Output Torque @ 4.8V: 4.86 kgcm
Output Torque @ 7.4V: 7.02 kgcm
Output Torque @ 8.4V: 112.48 ozin (8.10 kgcm)
No-load Speed @ 4.8V: 0.088sec/60°
No-load Speed @ 7.4V: 0.059sec/60°
No-load Speed @ 8.4V: 0.055sec/60°
max. Current @ 7.4V: 3.25 A
max. Current @ 8.4V: 3.65 A
Case Material: High Quality Technopolymer and Aluminium
Gear Set Material: Metal gears
Position sensor: Contactless / Hall sensor
Motor: Coreless DC
Ball Bearing: 2 x Ball Bearing
Working Frequency: 1520µs/333Hz
Pulse Range: 500 μs 2500 μs
Programmable: Yes
