Beskrivning
Art.nr: HV06
Highest manufacturing quality
6 mm 2.2 kg HV Servo

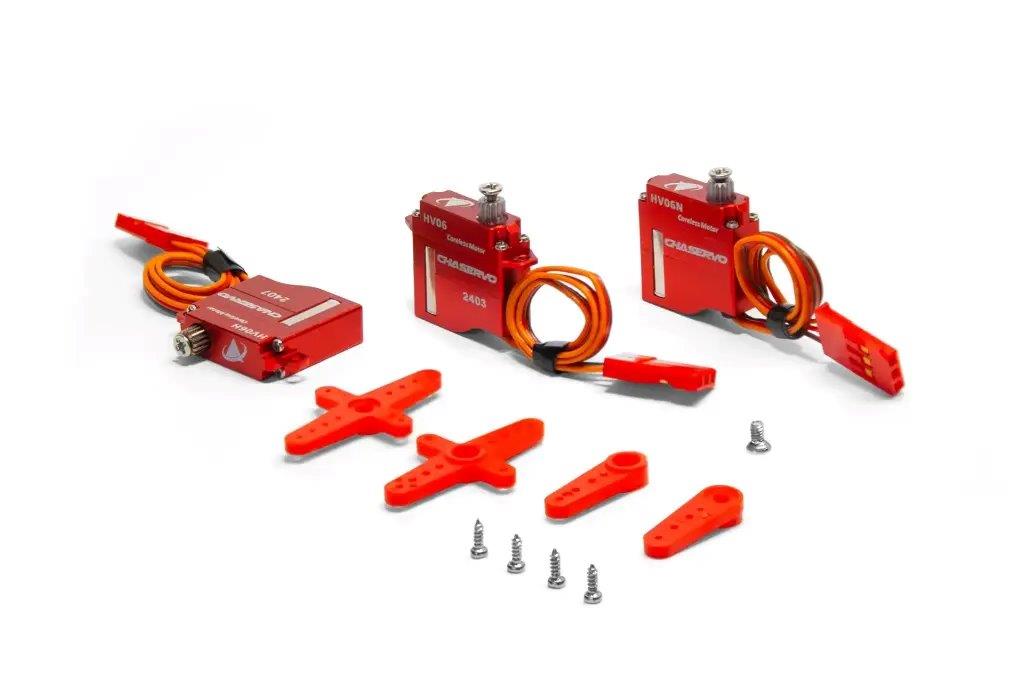

Small in size, strong on the inside and impressively powerful - the HV06 series is designed for maximum performance. It is available in three different versions for standard or horizontal installation, with a neutral option also available. Thanks to its particularly flat and compact design, this micro-sub integrates seamlessly into narrow wings. The robust workmanship and coreless motor also guarantee a wide range of applications.
Compact and powerful
________________________________________
The Chaservo HV06 is a powerful 6mm HV servo that is characterized by its small size and high performance. It is ideal for a variety of modeling applications, including RC vehicles, airplanes, boats and other models that require high performance and precision in a small package.
The Chaservo HV06 is made of high-quality materials and has a robust design. The hardened steel gearbox is wear-resistant and ensures a long service life.
The holding force of up to 2.2 kg at 8.4 V makes it possible to move even heavy loads effortlessly. The turning speed of 0.06 seconds at 8.4 V is also very good.
Brand: Chaservo
Dimensions: 0.75 x 0.24 x 0.73 in (19 x 6 x 18.5 mm)
Weight: 0.21 oz (6.1 g)
Output Shaft Spline: 15T, 4mm
Rated Voltage: DC 7.4V
Voltage Range: DC 3.3 9.0V
Holding Torque @ 6.0V: 22.91 ozin (1.65 kgcm)
Holding Torque @ 7.4V: 30.55 ozin (2.2 kgcm)
Holding Torque @ 8.4V: 36.80 ozin (2.65 kgcm)
Output Torque @ 6.0V: 20.83 ozin (1.5 kgcm)
Output Torque @ 7.4V: 2.0 kgcm
Output Torque @ 8.4V: 30.55 ozin (2.2 kgcm)
No-load Speed @ 6.0V: 0.07sec/60°
No-load Speed @ 7.4V: 0.06sec/60°
No-load Speed @ 8.4V: 0.05sec/60°
max. Current @ 6.0V: 0.61 A
max. Current @ 7.4V: 0.63 A
max. Current @ 8.4V: 0.67 A
Case Material: Aluminium
Gear Set Material: Metal gears
Ball Bearing: 2 x Ball Bearing
Position sensor: Potentiometer
Motor: Coreless DC
Working Frequency: 1520 μs / 20 KHz
Pulse Range: 900µs-2100µs
Programmable: Yes
