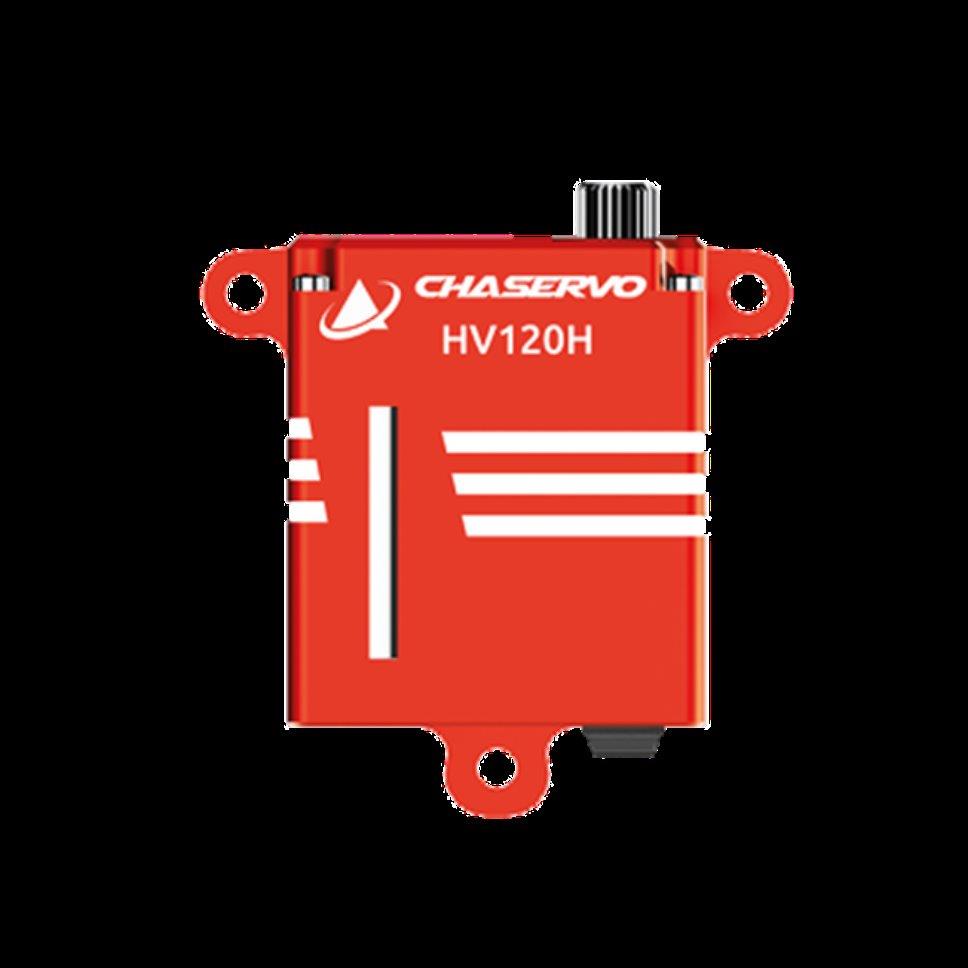

CHASERVO HV120H

Slim, fast,
fantastic.

The HV120 series offers a holding force of 25 kg and is available in two versions. It is compact enough to fit into thin spaces and strong enough to play an important role in larger projects.


Dimensions: 30 x 12 x 35 mm
Weight: 1.30 oz (37 g)
Rated Voltage: DC 7.4V
Voltage Range: DC 4.8 – 8.4V
Output Shaft Spline: 25T, 0.236 in (6 mm)
Holding Torque @ 4.8V: 249.97 oz•in (18.0 kg•cm)
Holding Torque @ 6.0V: 305.52 oz•in (22.0 kg•cm)
Holding Torque @ 7.4V: 347.18 oz•in (25.0 kg•cm)
Holding Torque @ 8.4V: 388.84 oz•in (28.0 kg•cm)
Output Torque @ 4.8V: 138.87 oz•in (10.0 kg•cm)
Output Torque @ 6.0V: 166.64 oz•in (12.0 kg•cm)
Output Torque @ 7.4V: 208.31 oz•in (15.0 kg•cm)
Output Torque @ 8.4V: 249.97 oz•in (18.0 kg•cm)
No-load Speed @ 4.8V: 0.16sec/60°
No-load Speed @ 6.0V: 0.13sec/60° @ 6.0 V
No-load Speed @ 7.4V: 0.11sec/60°
No-load Speed @ 8.4V: 0.09sec/60°
Case Material: Aluminium
Gear Set Material: Metal gears
Position sensor: Contactless / Hall sensor
Motor: 4 Pole Brushless
Working Frequency: 1520µs/333Hz
Pulse Range: 500 μs – 2500 μs
Programmable: Yes
