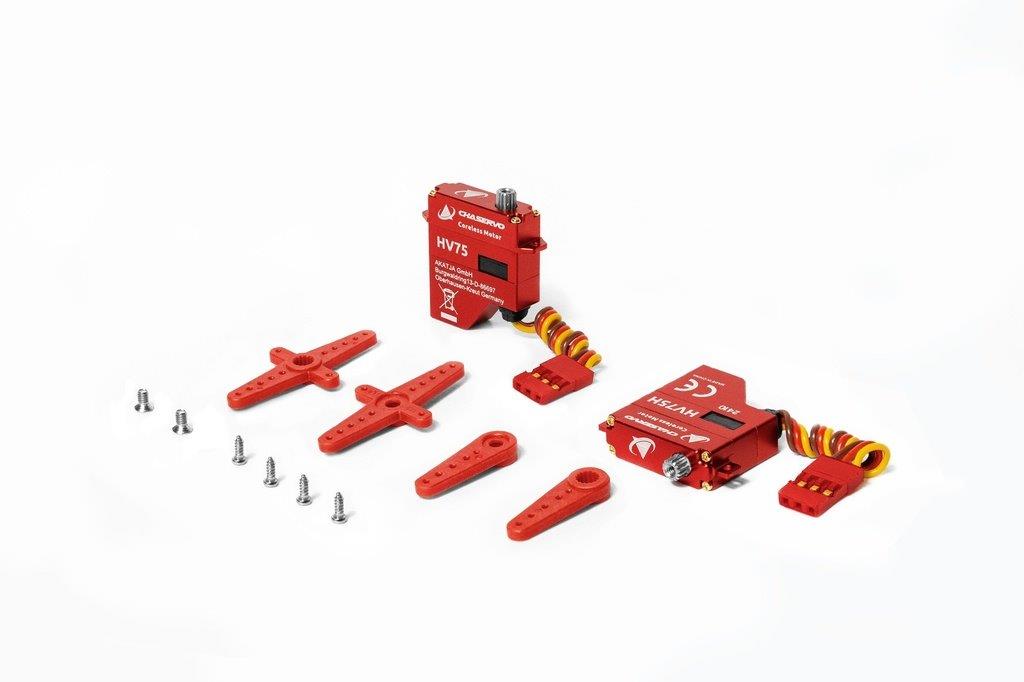

Art.nr: HV75
Slim, fast,
fantastic.
The HV75 series offers a holding force of 25 kg and is available in two versions. It is compact enough to fit into thin spaces and strong enough to play an important role in larger projects.
Dimensions: 23 x 7.5 x 27.5 mm
Weight: 0.42 oz (12 g)
Rated Voltage: DC 7.4V
Voltage Range: DC 4.8 8.4V
Output Shaft Spline: 15T, 4mm
Holding Torque @ 6.0V: 4.5 kgcm
Holding Torque @ 7.4V: 6.0 kgcm
Holding Torque @ 8.4V: 6.5 kgcm
Output Torque @ 6.0V: 3.0 kgcm
Output Torque @ 7.4V: 4.0 kgcm
Output Torque @ 8.4V: 4.5 kgcm
No-load Speed @ 6.0V: 0.13sec/60° @ 6.0 V
No-load Speed @ 7.4V: 0.10sec/60°
No-load Speed @ 8.4V: 0.09sec/60°
Case Material: Aluminium
Gear Set Material: Metal gears
Position sensor: Potentiometer
Motor: Coreless DC
Working Frequency: 1520µs/333Hz
Pulse Range: 900µs-2100µs
Programmable: Yes
