Beskrivning
Art.nr: HV85H
Robust. Precise. Powerful
________________________________________

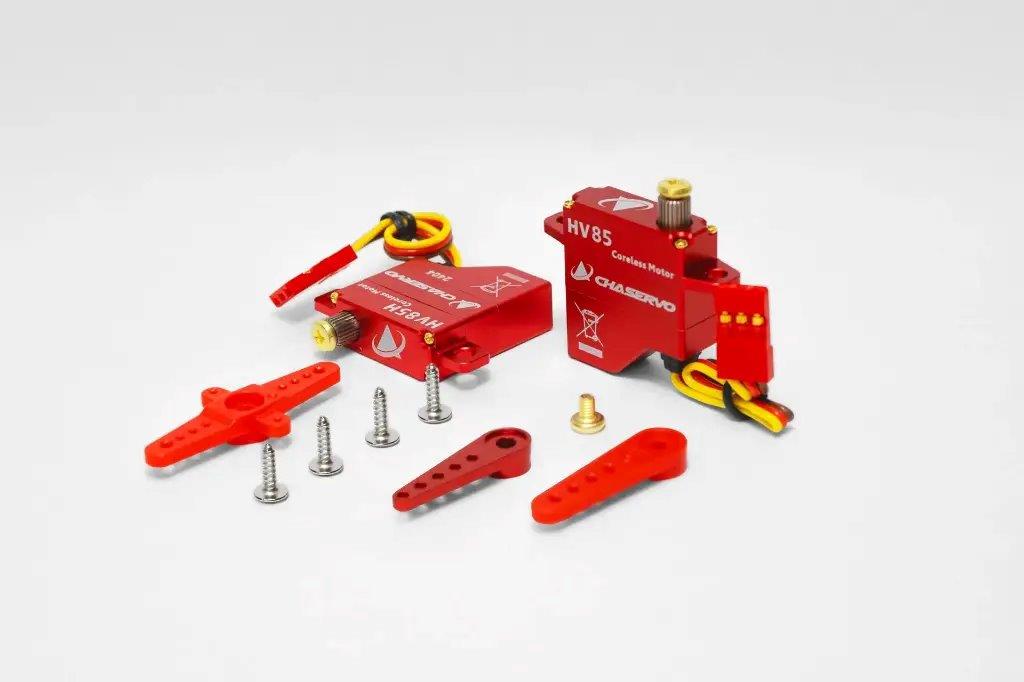

The Chaservo HV85 is a powerful and precise HV servo that is characterized by its compact design and high performance. It is ideal for a variety of modeling applications, including RC airplanes, gliders, powered aircraft and other models that require high performance and precision in a small package.
The Chaservo HV85 is made of high-quality materials and has a robust design. The hardened steel gearbox is wear-resistant and ensures a long service life.
Versatile application options
________________________________________
The Chaservo HV85 is suitable for a wide range of applications. It is ideal for RC airplanes, gliders, powered aircraft and other models that require high performance and precision in a small package. The compact design makes it ideal for applications that need to be used in confined spaces.
Brand: Chaservo
Dimensions: 0.95 x 0.33 x 1.04 in (24 x 8.5 x 26.5 mm)
Weight: 0.49 oz (14 g)
Output Shaft Spline: 25T, 0.196 in (5 mm)
Rated Voltage: DC 7.4V
Voltage Range: DC 3.3 9.0V
Holding Torque @ 6.0V: 99.99 ozin (7.2 kgcm)
Holding Torque @ 7.4V: 124.98 ozin (9.0 kgcm)
Holding Torque @ 8.4V: 136.10 ozin (9.8 kgcm)
Output Torque @ 6.0V: 90.27 ozin (6.5 kgcm)
Output Torque @ 7.4V: 8.2 kgcm
Output Torque @ 8.4V: 123.59 ozin (8.9 kgcm)
No-load Speed @ 6.0V: 0.16sec/60°
No-load Speed @ 7.4V: 0.12sec/60°
No-load Speed @ 8.4V: 0.11sec/60°
max. Current @ 6.0V: 0.86 A
max. Current @ 7.4V: 1.08 A
max. Current @ 8.4V: 1.35 A
Case Material: Aluminium
Gear Set Material: Metal gears
Ball Bearing: 2 x Ball Bearing
Position sensor: Potentiometer
Motor: Coreless DC
Working Frequency: 1520µs/333Hz
Pulse Range: 900µs-2100µs
Programmable: Yes
