Beskrivning
Art.nr: HV95H
Competitive. Sport.

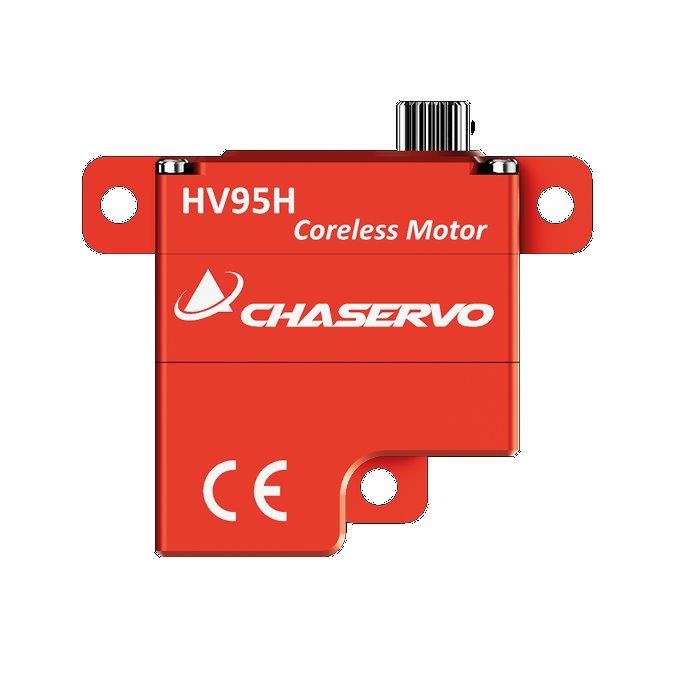

9.5 mm 10.2 kg HV Servo
The HV95 is a powerful and precise HV servo that promises long and reliable precision work thanks to its robust equipment with steel gears, double ball bearings and aluminum housing. The 6mm T25 standard wear makes the servo special and allows free movement for a wide range of servo levers.
Thanks to its compact design with a depth of only 9.5 mm, the HV95 series is particularly suitable as a wing servo and enables thinner wing profiles for improved aerodynamics of the model aircraft. When designing the servo, we attached great importance to a low height and arranged a third screw lug next to the motor so that the servo can also be mounted under small servo covers in the wing.
The range of applications extends from glider models and motorized models to high-performance jets.
Compact and powerful
________________________________________
The Chaservo HV95 is a powerful and precise HV servo that is characterized by its compact design and high performance. It is ideal for a variety of modeling applications, including RC airplanes, gliders, powered aircraft and other models that require high performance and precision in a small package.
Advantages of the
HV95 Series
________________________________________
High performance
Precise design
Robust design
Compact design
Versatile application possibilities
6mm T25 standard abrasion
Third screw connection tab
Brand: Chaservo
Dimensions: 1.18 x 0.37 x 1.31 in (30 x 9.5 x 33.5 mm)
Weight: 0.76 oz (21.7 g)
Output Shaft Spline: 25T, 0.236 in (6 mm)
Rated Voltage: DC 7.4V
Voltage Range: DC 4.8 8.4V
Holding Torque @ 6.0V: 118.0 ozin (8.5 kgcm)
Holding Torque @ 7.4V: 145.81 ozin (10.5 kgcm)
Holding Torque @ 8.4V: 159.7 ozin (11.5 kgcm)
Output Torque @ 6.0V: 104.1 ozin (7.5 kgcm)
Output Torque @ 7.4V: 9.3 kgcm
Output Torque @ 8.4V: 141.6 ozin (10.2 kgcm)
No-load Speed @ 6.0V: 0.17sec/60°
No-load Speed @ 7.4V: 0.15sec/60°
No-load Speed @ 8.4V: 0.12sec/60°
max. Current @ 6.0V: 1.16 A
max. Current @ 7.4V: 1.32 A
max. Current @ 8.4V: 1.58 A
Case Material: Aluminium
Gear Set Material: Metal gears
Ball Bearing: 2 x Ball Bearing
Position sensor: Potentiometer
Motor: Coreless DC
Working Frequency: 1520µs/333Hz
Pulse Range: 500 μs 2500 μs
Programmable: Yes
