SAVÖX SV-1262MG Servo 9Kg 0,085s HV Metalldrev Mini
717,50 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: SAV-SV1262MG
Product Information:
High-End Mini Servo with Pro features. Smaller footprint (32.4 × 16.8 × 29.8 mm) with full-size performance.
Lightweight Power
Only 30g, yet capable of delivering the torque and speed needed for RC aircraft and 1/12 scale vehicles.
Features:
Coreless motor
Equipped with a 32-bit PCB board
New generation design for improved performance
Compact size
32mm in length (compared to 35mm on SV-1250MG)
Ideal for tight installation spaces
Similar specs to SV-1250MG
Tested for 1/12 on-road cars
Compact + Strong

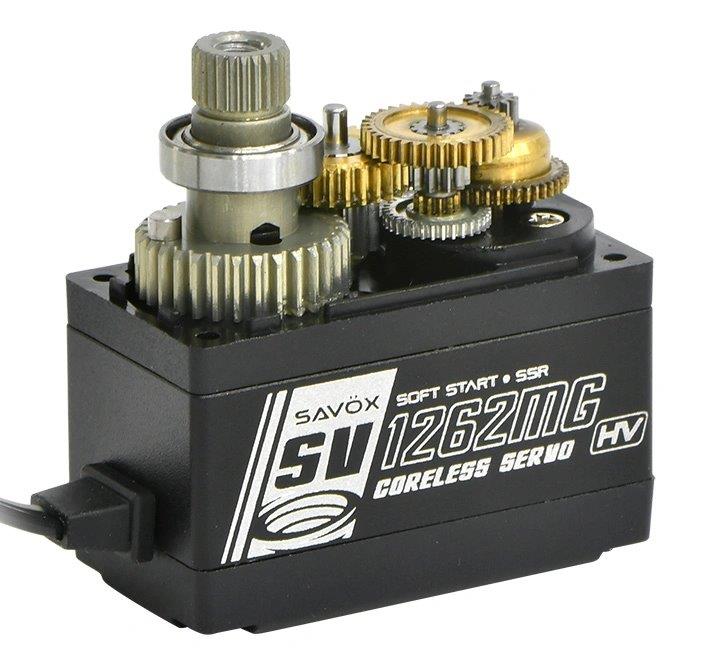

Hybrid Aluminum/Composite case with metal/composite gears for reliable durability. Only 32.4 × 16.8 × 29.8 mm perfect for tight builds. The SV-1262MG proves that mini servos dont need to compromise. Its hybrid case construction and coreless motor deliver exceptional performance in a space-saving package, making it ideal for competitive 1/12 racers and precision-focused aircraft.
Coreless Precision
Smooth, consistent response powered by a high-efficiency coreless motor.
Specifications:
Line: BLACK EDITION
Applications: CAR, HELI, AIRPLANE & BOATS
Servo Size: Mini
Operating Voltage: 6.0V-8.4V
Speed @ 6.0V: 0.11 s/60°
Torque @ 6.0V: 4.6 kg/cm
Speed @ 7.4V: 0.095 s/60°
Torque @ 7.4V: 7.0 kg/cm
Speed @ 8.4V: 0.09 s/60°
Torque @ 8.4V: 9.0 kg/cm
Amplifier Type: Digital Controller
Motor Type: Coreless
Case Type: Hybrid (Aluminum/Composite)
Protection: Water Resistant

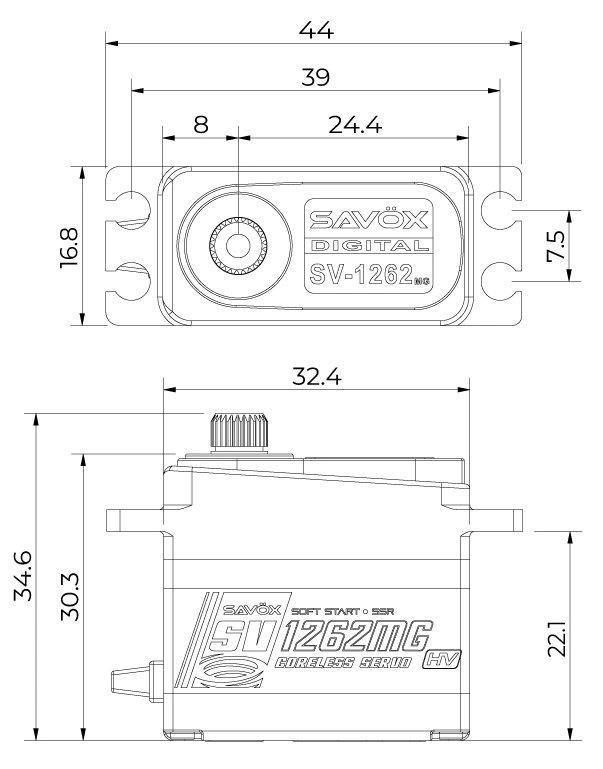

Dimensions (L x W x H): 32.4 x 16.8 x 30.3 mm
Weight: 30 g
Gear Type: Hybrid (Metal/Composite)
Compability: Sanwa SUR, SSR & Futaba UR, SR
PCB Board: 32-bit
Horn Gear Splines: 25T (Φ6)
Rotating Direction: Counterclockwise (when 1000→2000 μsec)
Max Travel: ~154° (when 800→2200 μsec)
Operating Travel: 110° (when 1000→2000 μsec)
Neutral Position: 1500 μsec
Bearings: 2x Ball Bearings
Potentiometer: VR
Cable Diameter: 26 AWG
Cable Length: 250 ±5 mm
Connector: JR
Stall Current @ 6.0V: 1700 mA
Operating Current @ 6.0V: 100 mA
Stall Current @ 7.4V: 2000 mA
Operating Current @ 7.4V: 120 mA
Stall Current @ 8.4V: 2200 mA
Operating Current @ 8.4V: 150 mA
Idle Current: 5 mA
Dead Band Width: 3-5 μsec
Frequency Range: 50-360 Hz
Control System: Pulse Width Modification
Operating Temperature: -10°C to 50°C
Partistorlek: 1
Ursprungsland: TW
Servotyp: Mini
