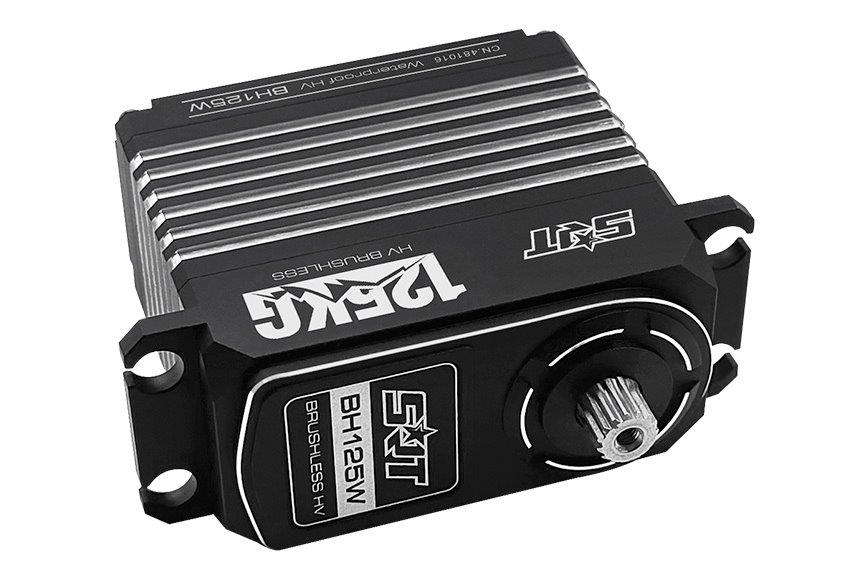

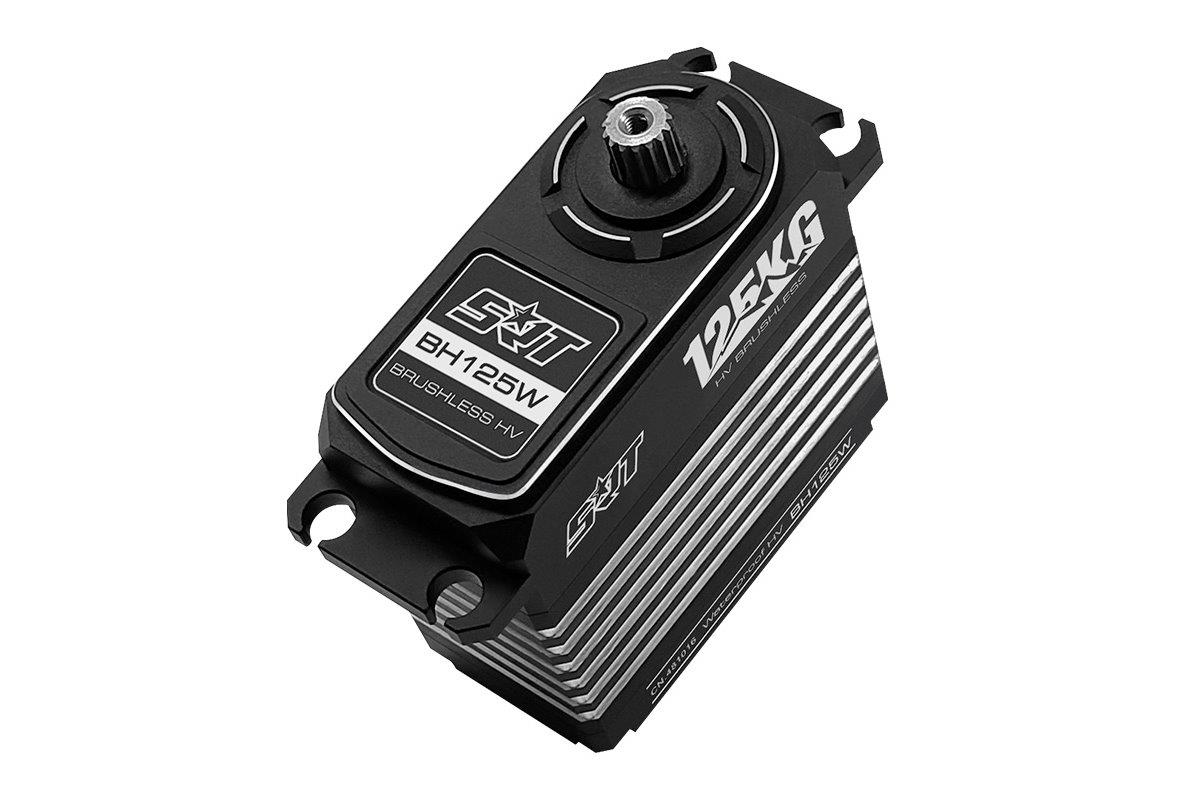

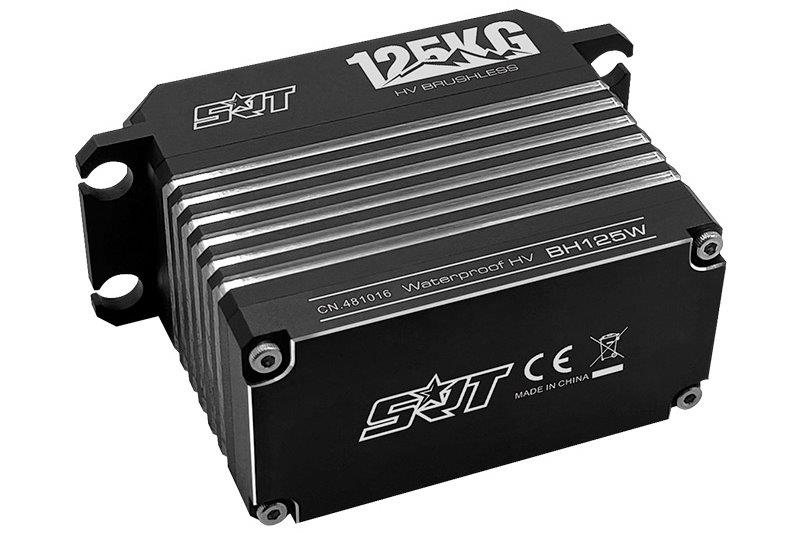

BH125W All-metal High-torque Digital servo (125 kg-0,085s/60°)
1 930 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: SRT-BH125W
Digital HiVolt servo in popular RHINO 4 size for 1/5 scale models. Strong brushless motor and steel gears.
Adopting a fully metal CNC slotted heat dissipation shell, the exquisite appearance and high strength can withstand various stresses during driving. The large-sized double bearings further improve the stability and reliability of the gear, reducing wear and shaking. The equipped stainless steel gears have higher strength and wear resistance, effectively ensuring the servo's strength.
Conventional three-line JR receiver power supply, torque of 125KG at 8.4V voltage, 0.085s speed. The product is compatible with most 1/5 and 1/6 car model on the market, like Crawler, Truck, and other vehicle model. What' more, the 15T output gear spline can directly and perfectly upgrade most original servos, making it convenient for users to upgrade and modify existing model cars without worrying about compatibility.
KEY FEATURES
Popular RHINO 4 size
Ideal for 1/5 scale on-road and off-road scale applications
Incredible efficiency and low power consumption
NMB dual main bearings
Waterproof case
15T output shaft
PRODUCT SPECIFICATIONS
Type: Digital
Bearing: Dual
Motor Type: Brushless
Gear Type: Metal
Gear Material: Steel
Control system: pulse width control
Working frequency: 1520μs / 330Hz
Operating voltage: DC 6.0-8.4V
Operating temperature range: -10 to + 60 deg
Operating speed (6.0 V): 0.12 sec/60 degrees at no load
Operating speed (7.4 V): 0.11 sec/60 degrees at no load
Operating speed (8.4 V): 0.085 sec/60 degrees at no load
Stall torque (6.0 V): 110.0kg.cm
Stall torque (7.4 V): 110.0kg.cm
Stall torque (8.4 V): 125.0kg.cm
Potentiometer drive: direct drive

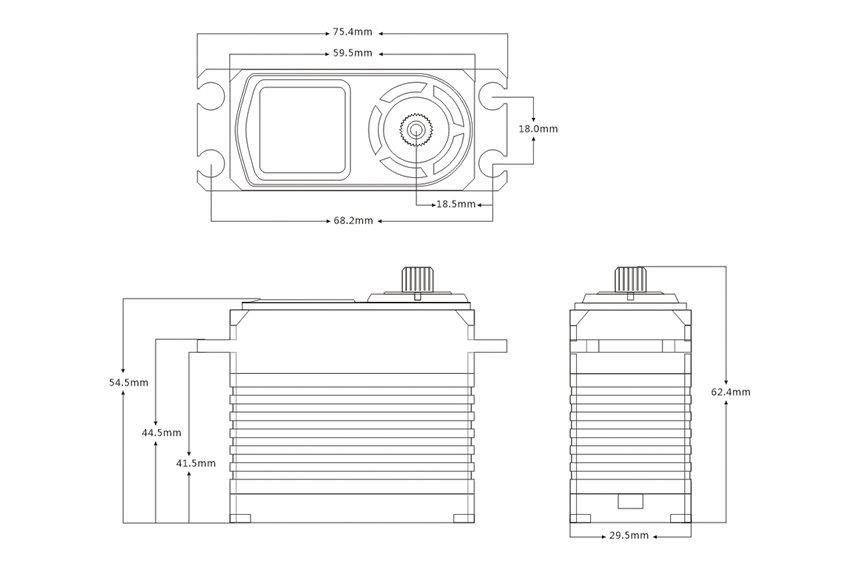

Dimensions: 59.5x29.5x54.5 mm
Weight: 209.0 g
Connector wire length: JR 350 mm
