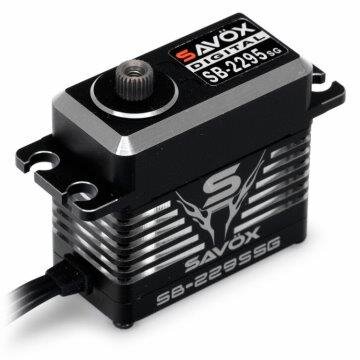

SAVÖX SB-2295SG Digital Servo 32Kg 0,06s HV Alu Brushless

SAVÖX SB-2295SG - High Voltage Brushless Steel-Geared Monster Torque Servo
The powerful "Monster" performance series from Savox utilize an all aluminum case, unique brushless motor and controller technology to boost power up to 35% over previous generation servos. Perfect when you need a powerful and very fast high voltage brushless servo with a aluminium case in application such as 3D helicopters etc.

Features:

• High Voltage
• Full Aluminum Case
• 3 Precision Ball Bearings
• Unique steel gears

Specifications:

• Torque @ 6V:
• Torque @ 7.4V: 32kg/cm
• Torque @ 8.4V: 40kg/cm
• Speed @ 6V:
• Speed @ 7.4V: 0.06sec/60 deg
• Speed @ 8.4V: 0.05sec/60 deg

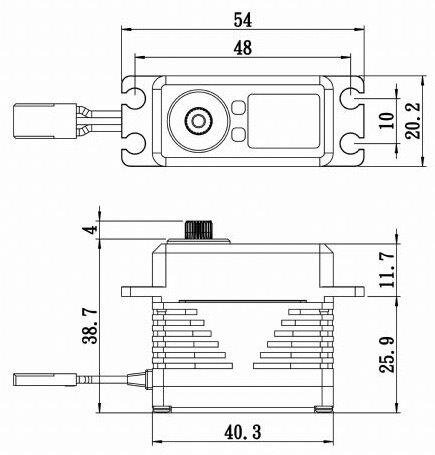

• Dimensions L x W x H: 40.3 x 20.2 x 38.7mm
• Weight: 79g

Technical Details:

• Operating Temperature: -10° to 50°C
• Running Current (no load): 180mA @6.0V, 220mA @7.4V
• Stall Current (at locked): 7500mA @6.0V, 9200mA @7.4V
• Idle Current: 5mA @4.8V, 5mA @6.0V
• Wire Length: 300 +/- 5mm
• Output Gear Spline: 25 Tooth
• Bearings: 2BB
• Operating Travel: 100° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 800 → 2200 µ second
• Maximum Travel: Appx 130° (900 → 2100 µ second)
• Refresh Rate: 333 Hz
• Motor Type: Brushless
