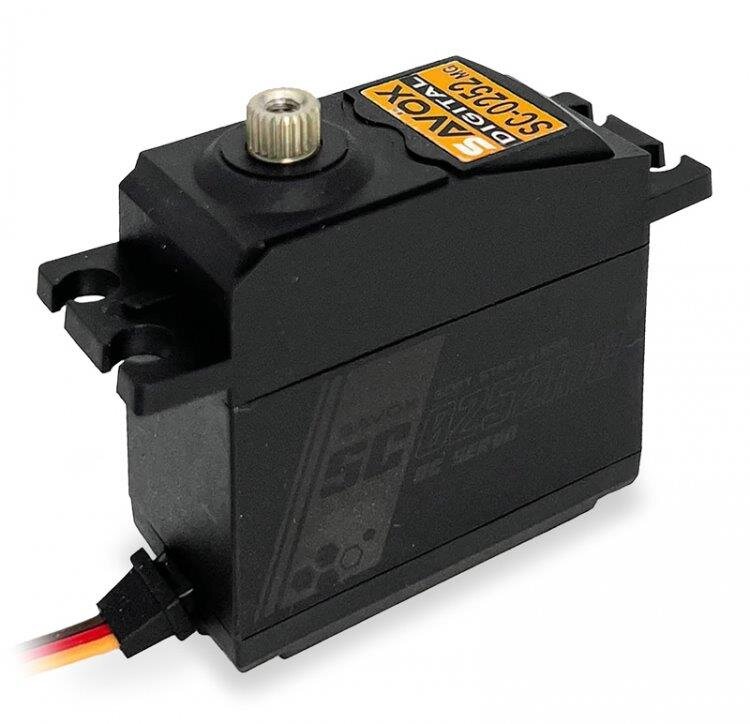

SAVÖX SC-0252MG Plus Servo Digital 10,5Kg 0,19s Metalldrev

Savöx SC-0252MGPLUS - Standard Digital Servo with Soft Start 0.19s 10.5kg/cm @ 6.0V
The Savox SC-0252MG is a high torque, metal-geared, digital, standard servo. A great replacement for standard, plastic-geared servos with less torque.

Features:

• Soft Start
• Sanwa SSR compatibility
• Metal gear train ensures durability under harsh situations
• Higher torque output than standard servos
• Ideal for 30-60 size aircraft, and some car applications

Specifications:

• Torque @ 4.8v: 7.2kg/cm
• Torque @ 6v: 10.5kg/cm
• Speed @ 4.8v: 0.23s/60deg
• Speed @ 6v: 0.19s/60deg

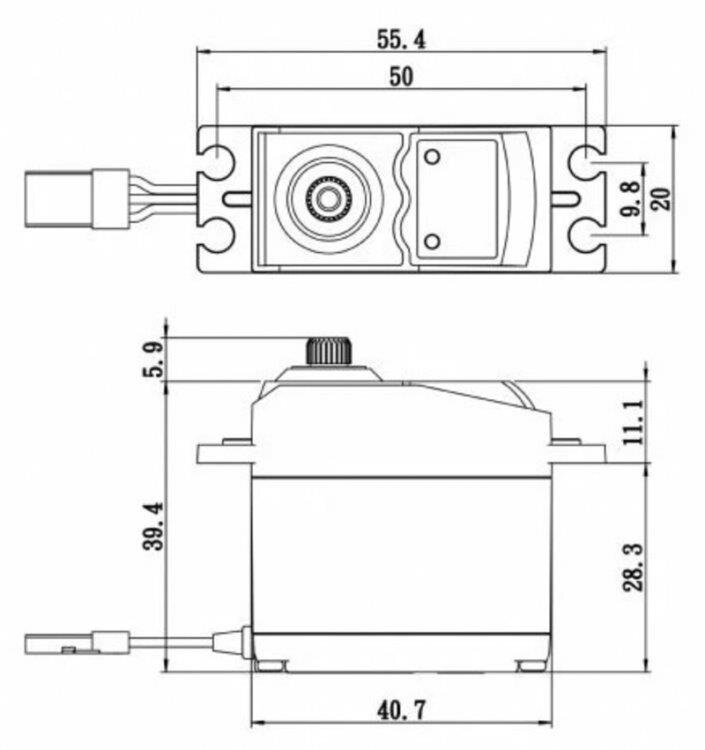

• Dimensions: L40.7 x W20 x H39.4mm
• Weight: 49g
• Operating Temperature: 14° - 122°F (-10° - 50°C)
• Running Current (no load): 300mA @4.8V, 330mA @6.0V
• Stall Current (at locked): 1400mA @4.8V, 1700mA @6.0V
• Idle Current: 6mA @4.8V, 6mA @6.0V
• Wire Length: 300 +/- 5mm
• Output Gear Spline: 25 Tooth
• Bearings: 2BB
• Operating Travel: 120° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 800 → 2200 µ second
• Maximum Travel: Appx 164° (800 → 2200 µ second)
• Refresh Rate: 240 Hz
• Motor Type: Brushed
