SAVÖX SC-0352 Digital Servo 6,5Kg 0,14s

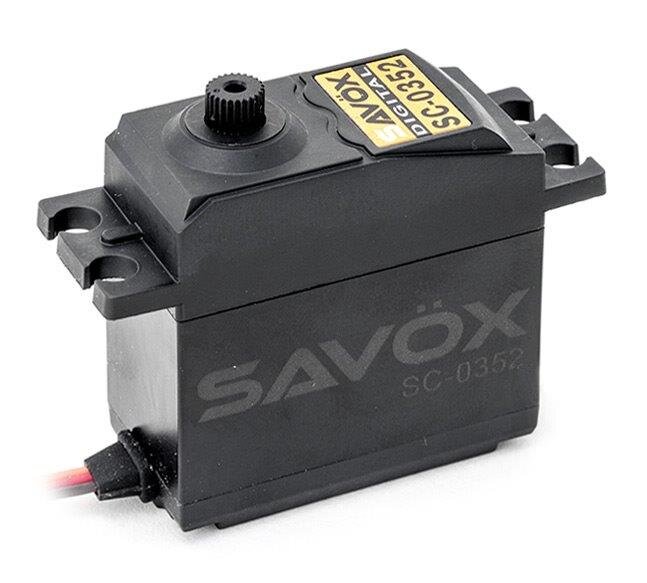

SAVÖX SC-0352 - Plastic-Geared Digital Standard Servo

The Savox SC-0352 is considered a 'standard' servo, but outperforms other standard servos with more torque and dual bearing support.

Features:

• Dual ball bearing support for precision and gear support

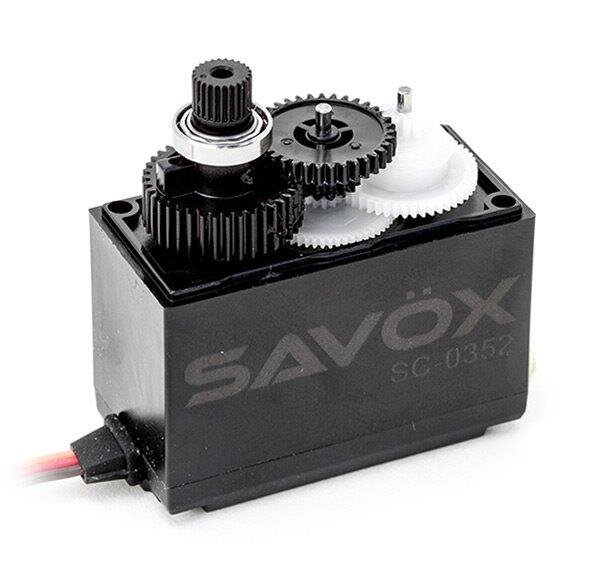

• Industrial plastic gear train is quiet and smooth
• More torque than other standard servos

Specifications:

• Torque @ 4.8V: 4.2kg/cm
• Torque @ 6V: 6.5kg/cm
• Speed @ 4.8V: 0.14 sec/60 deg
• Speed @ 6V: 0.11 sec/60 deg

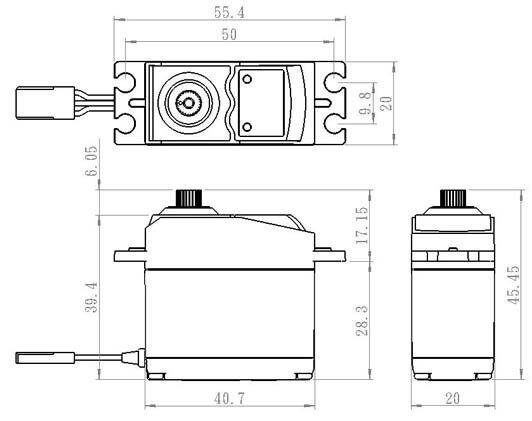

• Dimensions L x W x H: 40.7 x 20.0 x 39.4mm
• Weight: 42g

Technical Details:

• Operating Temperature: -10° - 50°C
• Running Current (no load): 180mA @4.8V, 240mA @6.0V
• Stall Current (at locked): 1300mA @4.8V, 1500mA @6.0V
• Idle Current: 5mA @4.8V, 5mA @6.0V
• Wire Length: 250 +/- 5mm
• Output Gear Spline: 25 Tooth
• Bearings: 2BB
• Operating Travel: 120° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 800 → 2200 µ second
• Maximum Travel: Appx 164° (800 → 2200 µ second)
• Refresh Rate: 240 Hz
• Motor Type: Brushed
