SAVÖX SC-1256TG Plus Servo Digital 20Kg 0,15s Alu Coreless Titandrev

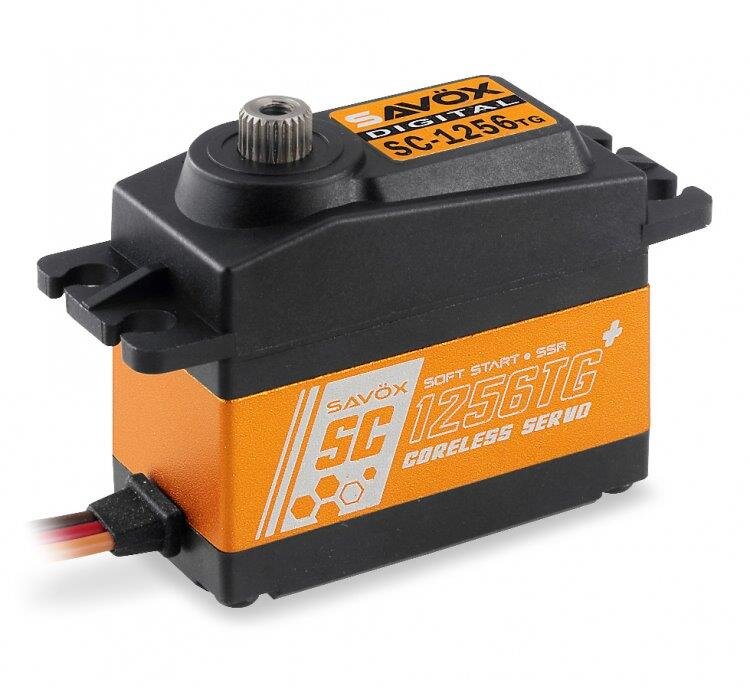

SAVÖX SC-1256TG Plus - Titanium-Geared Digital Coreless Standard-Sized Servo - V2
The SC1256TG+ servo is a great servo for those looking to replace a standard servo with one that has superior specifications.

Features:

• Titanium gears (& aluminium) ensure long life, durability and lighter weight
• Aluminum middle case to help with cooler operating temperatures
• Great replacement for RTR servos and other 1/10 off road vehicles
• SSR (Soft Start)

Specifications:

• Torque @ 4.8V: 16kg/cm
• Speed @ 4.8V: 0.18 sec/60 deg
• Torque @ 6V: 20kg/cm
• Speed @ 6V: 0.15 sec/60 deg

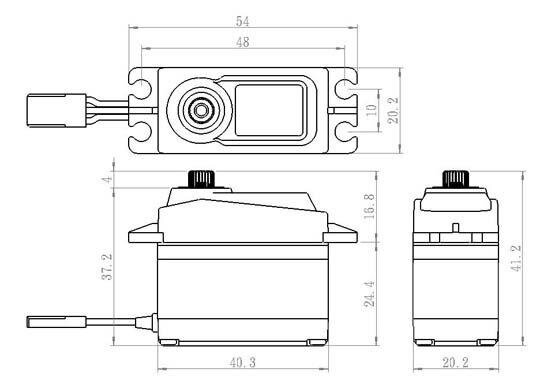

• Dimensions L x W x H: 40.3 x 20.2 x 37.2mm
• Weight: 64g

Technical Details:

• Operating Temperature: -10° to 50°C
• Running Current (no load): 100mA @4.8V, 120mA @6.0V
• Stall Current (at locked): 4000mA @4.8V, 5000mA @6.0V
• Idle Current: 5mA @4.8V, 5mA @6.0V
• Wire Length: 250 +/- 5mm
• Output Gear Spline: 25 Tooth
• Bearings: 2BB
• Operating Travel: 100° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 800 → 2200 µ second
• Maximum Travel: Appx 130° (900 → 2100 µ second)
• Refresh Rate: 333 Hz
• Motor Type: Coreless
