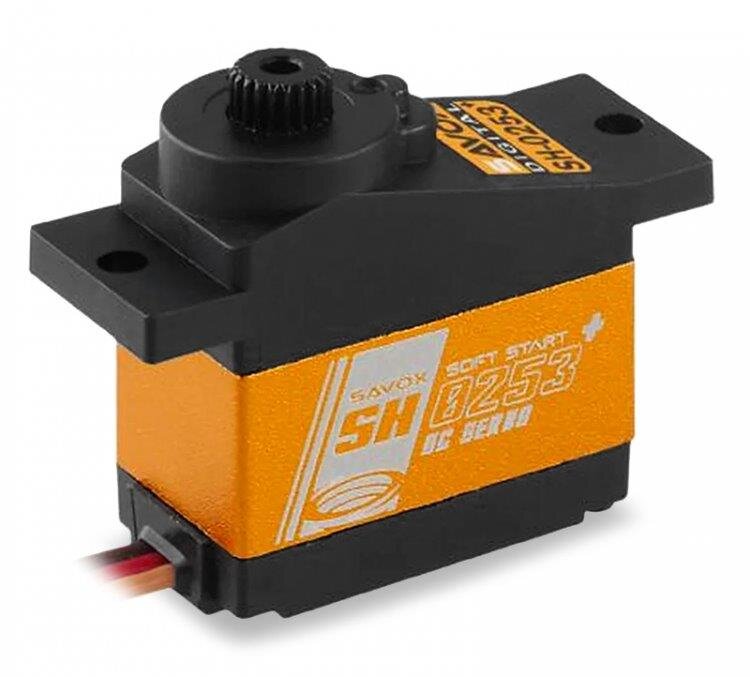

SAVÖX SH-0253 Plus Servo Digital 2,2Kg 0,09s Alu Mikro

Savöx SH0253PLUS - Micro Digital Servo with Soft Start, 0.09s/2.2kg/cm @6V
The Savox SH-0253 Plus micro, digital servo has a nice balance of torque and speed in addition to using a combination of industrial plastic and metal gears for added durabilty and smoothness.

Features:

• Soft Start
• Sanwa SSR compatibility
• Aluminum middle case allows for cooler operating temperatures
• Industrial plastic and metal gear train ensures durability and longevity
• Ideal for small planes, and 450 size helicopters

Specifications:

• Torque @ 4.8v - 1.8kg/cm
• Torque @ 6v - 2.2kg/cm
• Speed @ 4.8v - 0.13 sec/60 deg
• Speed @ 6v - 0.09 sec/60 deg

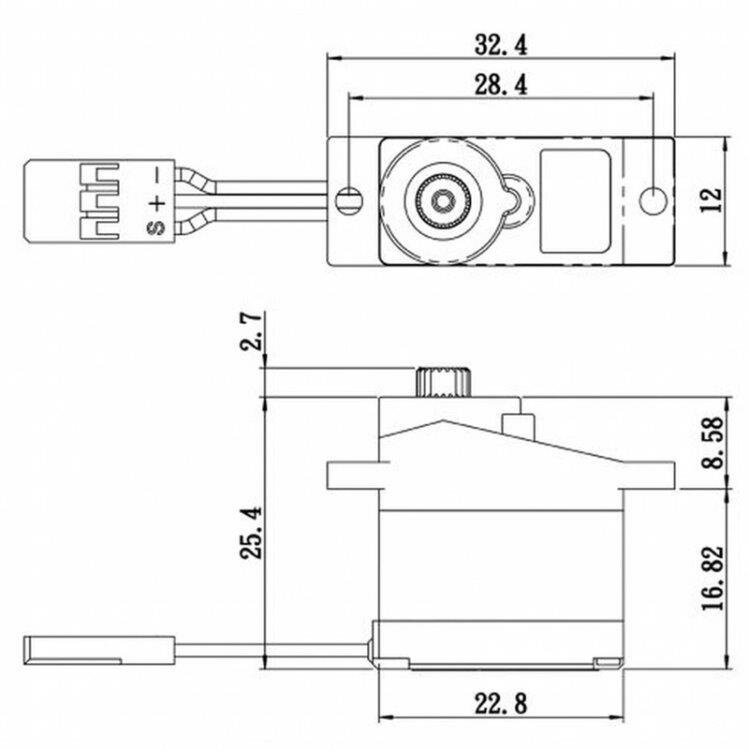

• Dimensions: L22.8 x W12 x H25.4mm
• Weight: 13.6g
• Operating Temperature: 14° - 122°F (-10° - 50°C)
• Running Current (no load): 150mA @4.8V, 180mA @6.0V
• Stall Current (at locked): 1000mA @4.8V, 1200mA @6.0V
• Idle Current: 5mA @4.8V, 5mA @6.0V
• Wire Length: 250 ± 5mm
• Output Gear Spline: 21 Tooth
• Bearings: 1BB
• Operating Travel: 90° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 700 → 2300 µ second
• Maximum Travel: Appx 150° (700 → 2300 µ second)
• Refresh Rate: 240 Hz
• Motor Type: Brushed
