SAVÖX SH-0254 Plus Servo Digital 3,9Kg 0,13s Alu Mikro

SAVÖX SH-0254PLUS - Digital Micro Servo
The Savox SH-0254-PLUS micro, digital servo has plenty of torque and uses a combination of industrial plastic and metal gears for added durabilty and smoothness.

Features:

• New: Soft Start
• New: Sanwa SSR compatible
• Aluminum middle case allows for cooler operating temperatures
• Industrial plastic and metal gear train ensures durability and longevity
• Ideal for small planes and 450 size helicopters

Specifications:

• Torque @4.8V: 3.1kg/cm
• Torque @6V: 3.9kg/cm
• Speed @4.8V: 0.16 sec/60 deg
• Speed @6V: 0.13 sec/60 deg

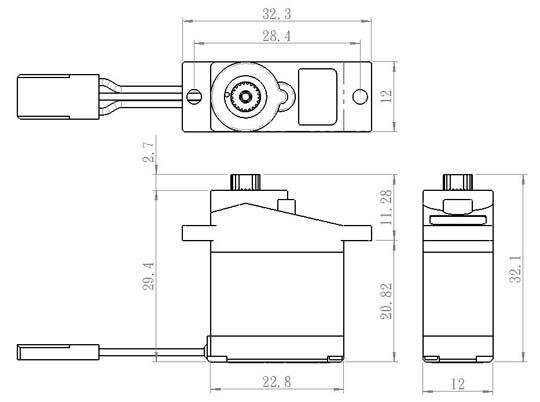

• Dimensions L x W x H: 22.8 x 12.0 x 29.4mm
• Weight: 15.8g

Technical Details:

• Operating Temperature: -10° to 50°C
• Running Current (no load): 180mA @4.8V, 240mA @6.0V
• Stall Current (at locked): 1200mA @4.8V, 1400mA @6.0V
• Idle Current: 5mA @4.8V, 5mA @6.0V
• Wire Length: 250 ± 5mm
• Output Gear Spline: 21 Tooth
• Bearings: 1BB
• Operating Travel: 90° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 750 → 2250 µ second
• Maximum Travel: Appx 145° (750 → 2250 µ second)
• Refresh Rate: 240 Hz
• Motor Type: Brushed


Note: This servo can be upgraded to metal gears by using the gear set for SH0255MG.
