SAVÖX SH-0263MG Plus Servo Digital 2,2Kg 0,10s Alu Metalldrev Mikro

SAVÖX SH-0263MGPLUS - Metal-Geared Micro Servo
The Savox SH-0263MG-PLUS metal-gear, digital, micro servo is quick and built tough.

Features:

• New: Soft Start
• New: Sanwa SSR compatible
• Metal gear train ensures durability and longevity
• Aluminum middle case allows for cooler operating temperatures
• Ideal for small planes and 450 size helicopters
• Dual ball bearing support

Specifications:

• Torque @4.8V: 1.8kg/cm
• Torque @6V: 2.2kg/cm
• Speed @4.8V: 0.13 sec/60 deg
• Speed @6V: 0.10 sec/60 deg

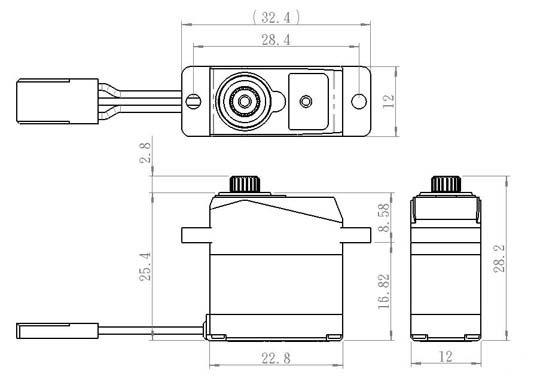

• Dimensions L x W x H: 22.8 x 12.0 x 25.4mm
• Weight: 15g

Technical Details:

• Operating Temperature: -10° to 50°C
• Running Current (no load): 60mA @4.8V, 80mA @6.0V
• Stall Current (at locked): 550mA @4.8V, 700mA @6.0V
• Idle Current: 5mA @4.8V, 5mA @6.0V
• Wire Length: 250 ± 5mm
• Output Gear Spline: 21 Tooth
• Bearings: 2BB
• Operating Travel: 90° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 700 → 2300 µ second
• Maximum Travel: Appx 150° (700 → 2300 µ second)
• Refresh Rate: 240 Hz
• Motor Type: Brushed
