SAVÖX SH-0350MG Plus Servo Digital 2.6Kg 0.16s Alu Mikro
195 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: SAVSH0350PLUS

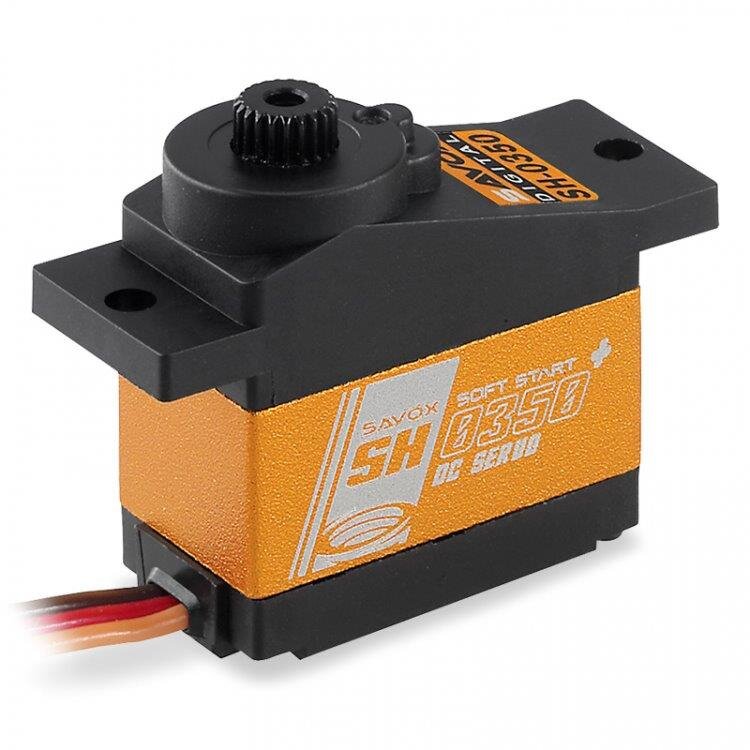

SAVÖX SH-0350MG+ - Micro Servo v2
The SH-0350MG+ is a budget-friendly, plastic-geared, micro-sized servo with an aluminum case for additional support.
Features:
Aluminum middle case allows for cooler operating temperatures
Ideal for small planes and 450 size helicopters
Soft Start
Specifications:
Torque @4.8V: 2.2kg/cm
Torque @6V: 2.6kg/cm
Speed @4.8V: 0.21 sec/60 deg
Speed @6V: 0.16 sec/60 deg

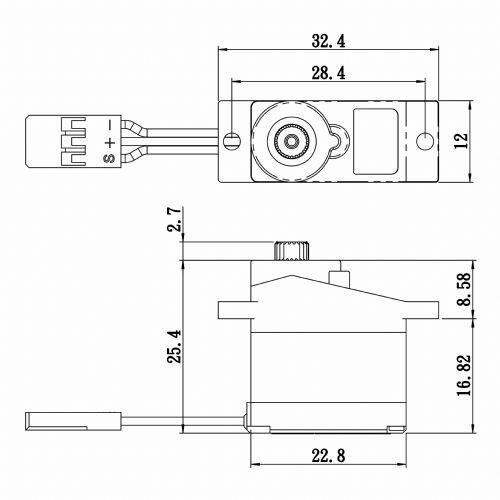

Dimensions L x W x H: 22.8 x 12.0 x 25.4mm
Weight: 12.3g
Technical Details:
Operating Temperature: -10° to 50°C
Running Current (no load): 150mA @4.8V, 180mA @6.0V
Stall Current (at locked): 1000mA @4.8V, 1200mA @6.0V
Idle Current: 5mA @4.8V, 5mA @6.0V
Wire Length: 250 ± 5mm
Output Gear Spline: 21 Tooth
Bearings: 2BB
Operating Travel: 90° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 700 → 2300 µ second
Maximum Travel: Appx 150° (700 → 2300 µ second)
Refresh Rate: 240 Hz
Motor Type: Brushed
The SH-0350MG+ is a budget-friendly, plastic-geared, micro-sized servo with an aluminum case for additional support.
Features:
Aluminum middle case allows for cooler operating temperatures
Ideal for small planes and 450 size helicopters
Soft Start
Specifications:
Torque @4.8V: 2.2kg/cm
Torque @6V: 2.6kg/cm
Speed @4.8V: 0.21 sec/60 deg
Speed @6V: 0.16 sec/60 deg
Dimensions L x W x H: 22.8 x 12.0 x 25.4mm
Weight: 12.3g
Technical Details:
Operating Temperature: -10° to 50°C
Running Current (no load): 150mA @4.8V, 180mA @6.0V
Stall Current (at locked): 1000mA @4.8V, 1200mA @6.0V
Idle Current: 5mA @4.8V, 5mA @6.0V
Wire Length: 250 ± 5mm
Output Gear Spline: 21 Tooth
Bearings: 2BB
Operating Travel: 90° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 700 → 2300 µ second
Maximum Travel: Appx 150° (700 → 2300 µ second)
Refresh Rate: 240 Hz
Motor Type: Brushed
