SAVÖX SV-1257MG Digital Servo 4Kg 0,055s HV Alu Coreless Metalldrev Mini

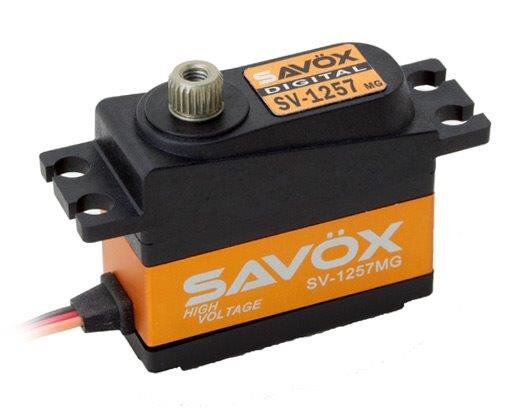

SAVÖX SV-1257MG - Metal-Geared High Voltage Mini Servo

The SV-1257MG mini-sized, metal-geared, digital servo is ideal for those that need a fast mini servo, but prefer to operate it using a higher voltage such as a LiPo receiver battery as a power source.

Features:

• High Voltage

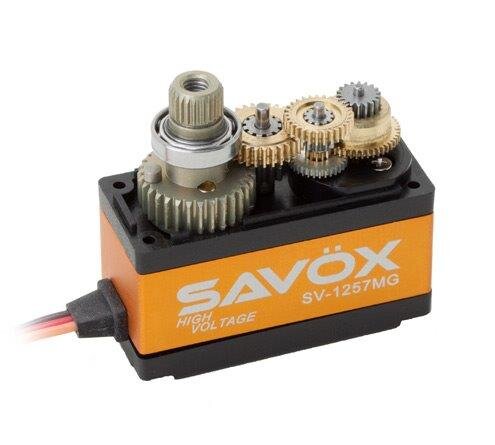

• Steel gear train provide durability against heavy use
• Aluminum middle case allows for cooler operating temperatures

Specifications:

• Torque @6V: 2.5kg/cm
• Torque @7.4V: 4kg/cm
• Speed @6V: 0.07 sec/60 deg
• Speed @7.4V: 0.055 sec/60 deg

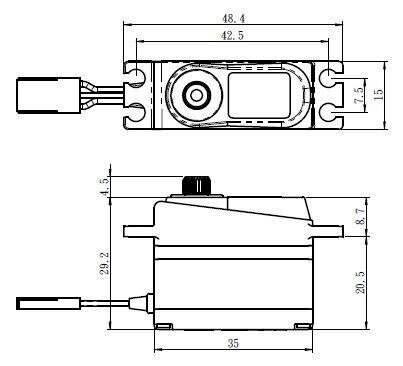

• Dimensions L x W x H: 35.0 x 15.0 x 29.2mm
• Weight: 29.5g

Technical Details:

• Operating Temperature: -10° to 50°C
• Running Current (no load): 100mA @6.0V, 120mA @7.4V
• Stall Current (at locked): 1600mA @6.0V, 2000mA @7.4V
• Idle Current: 6mA @4.8V, 6mA @6.0V
• Wire Length: 250 ± 5mm
• Output Gear Spline: 25 Tooth
• Bearings: 2BB
• Operating Travel: 110° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 800 → 2200 µ second
• Maximum Travel: Appx 154° (800 → 2200 µ second)
• Refresh Rate: 333 Hz
• Motor Type: Coreless
