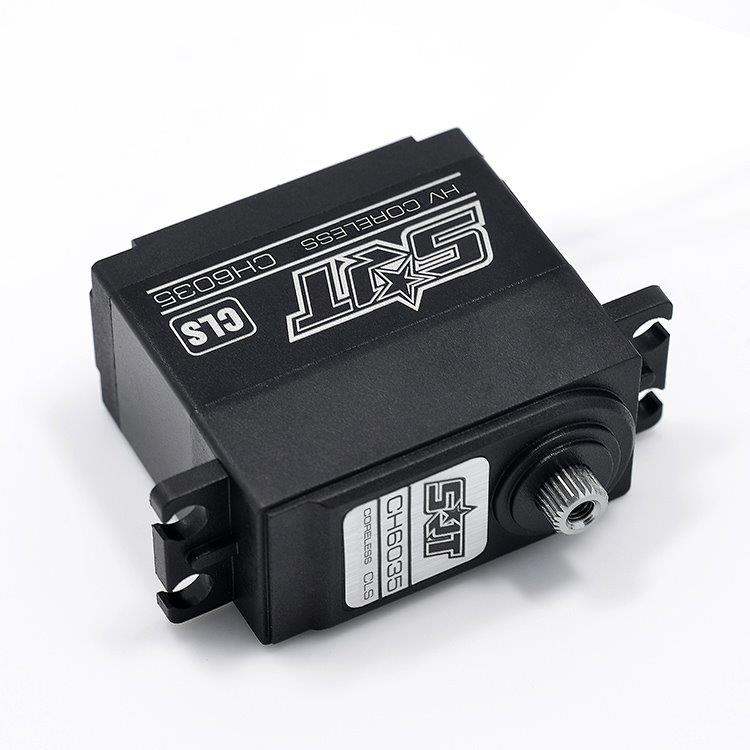

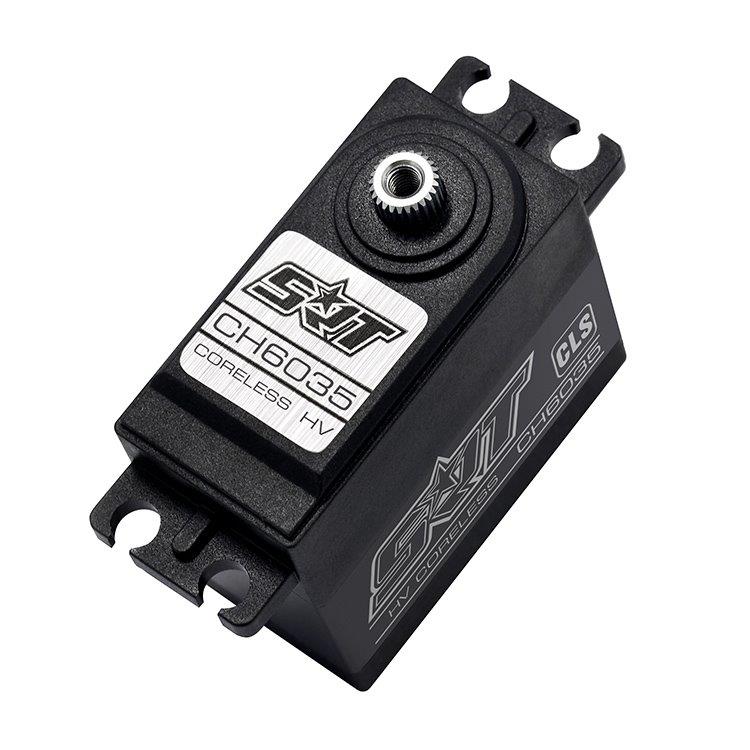

SRT CH6035 HV Coreless Servo 32kg/0.15s @ 7.4V
496,25 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: CH6035
KEY FEATURES
Ideal for 1/10 on road and 1/8 off road scale applications, as well as large scale airplanes and jets
incredible efficiency and low power consumption
2 μsec Dead Band
PRODUCT SPECIFICATIONS
Type: Digital
Bearing: Dual
Motor Type: Coreless

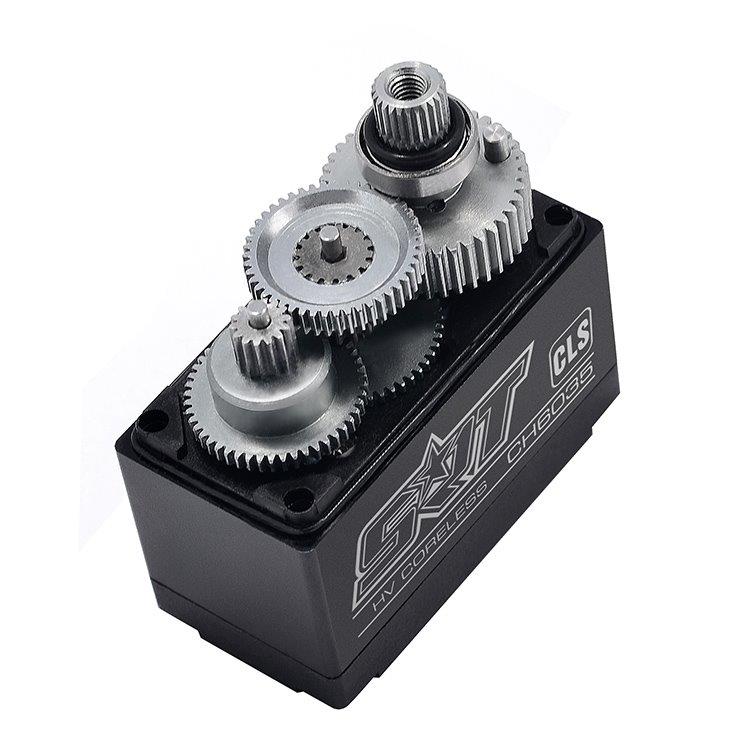

Gear Type: Metal
Gear Material: Titanium & Steel
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.16 sec/60 degrees at no load
operating speed (7.4v): 0.15 sec/60 degrees at no load
operating speed (8.4v): 0.14 sec/60 degrees at no load
stall torque (6.0v): 30.0kg.cm (416.6 oz/in)
stall torque (7.4v): 32.0kg.cm (444.4 oz/in)
stall torque (8.4v): 35.0kg.cm (486.1 oz/in)
potentiometer drive: direct drive
dimensions: 40.7x20.5x38.5 mm /1.6x0.8x1.51 in
weight: 75.0g (2.65 oz)
connector wire length: jr 250 mm
Ideal for 1/10 on road and 1/8 off road scale applications, as well as large scale airplanes and jets
incredible efficiency and low power consumption
2 μsec Dead Band
PRODUCT SPECIFICATIONS
Type: Digital
Bearing: Dual
Motor Type: Coreless
Gear Type: Metal
Gear Material: Titanium & Steel
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.16 sec/60 degrees at no load
operating speed (7.4v): 0.15 sec/60 degrees at no load
operating speed (8.4v): 0.14 sec/60 degrees at no load
stall torque (6.0v): 30.0kg.cm (416.6 oz/in)
stall torque (7.4v): 32.0kg.cm (444.4 oz/in)
stall torque (8.4v): 35.0kg.cm (486.1 oz/in)
potentiometer drive: direct drive
dimensions: 40.7x20.5x38.5 mm /1.6x0.8x1.51 in
weight: 75.0g (2.65 oz)
connector wire length: jr 250 mm
