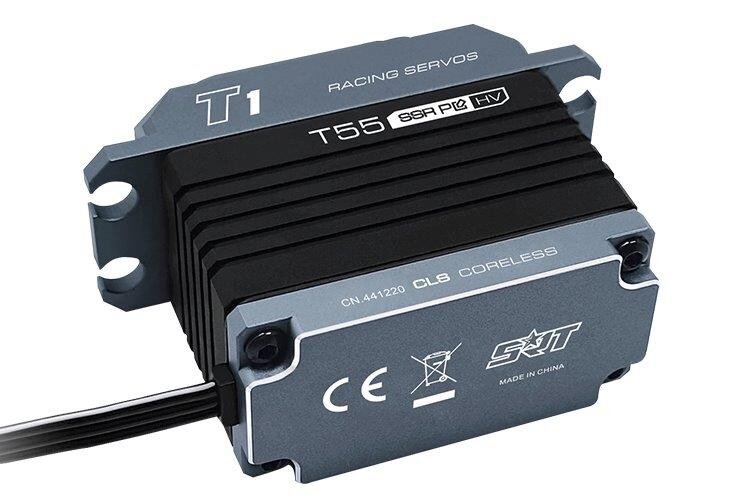

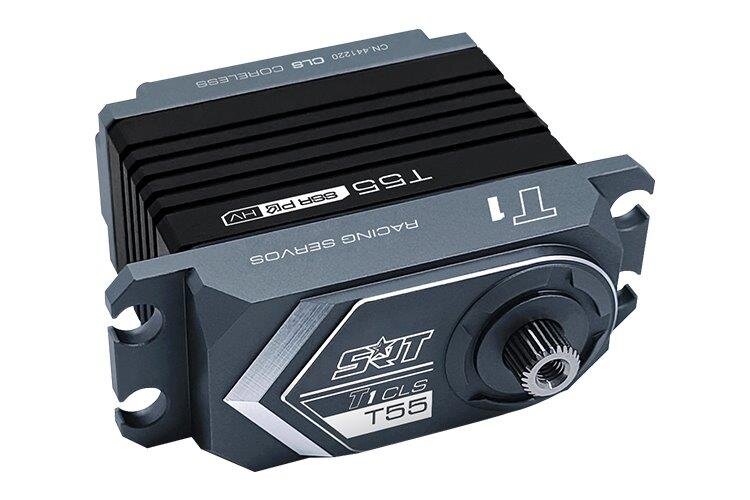

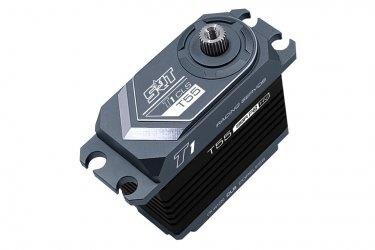

SRT T55 HiVOLT CORELESS Digital servo (55 kg-0,19s/60°)

KEY FEATURES
• Ideal for 1/8 on/off road scale applications
• Superior Holding Torque
• Incredible efficiency and low power consumption
• Standard dimension make it perfect for vehicles that can benefit from a high quality servo
• CNC Machined aluminum case for exceptional cooling
• Programmable High torque Brushless servo
• SSR mode compatible
• 25T output shaft
• 2 μsec Dead Band

PRODUCT SPECIFICATIONS

• Type: Digital
• Bearing: Dual
• Motor Type: Coreless
• Gear Type: Metal
• Gear Material: Steel & Aluminum
• control system: pulse width control
• working frequence: 1520μs / 330hz
• operating voltage: dc6.0-8.4v
• operating temperature range: -10 to + 60 degree
• operating speed (6.0v): 0.22 sec/60 degrees at no load
• operating speed (7.4v): 0.20 sec/60 degrees at no load
• operating speed (8.4v): 0.19 sec/60 degrees at no load
• stall torque (6.0v): 43.0kg.cm (541.6 oz/in)
• stall torque (7.4v): 50.0kg.cm (625.0 oz/in)
• stall torque (8.4v): 55.0kg.cm (763.8 oz/in)
• potentiometer drive: direct drive

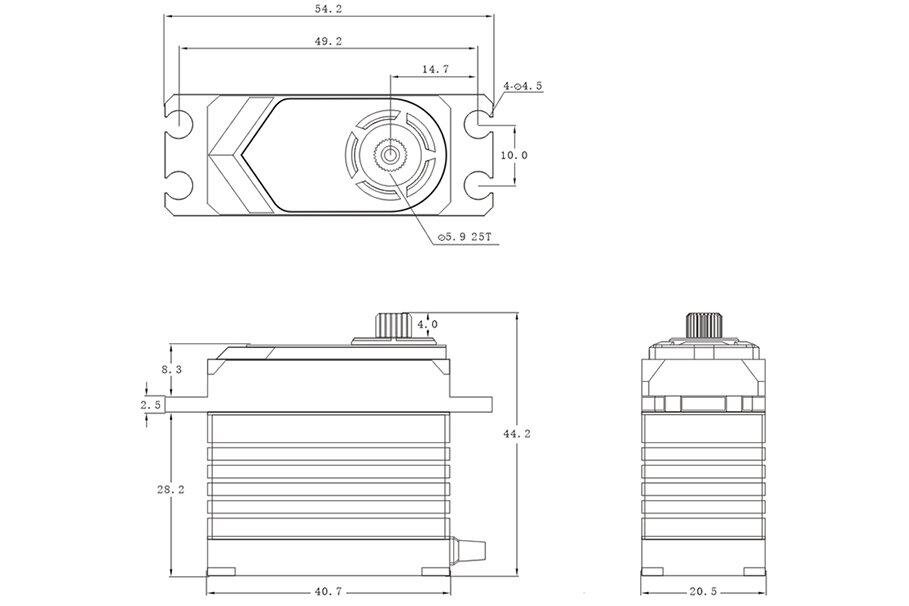

• dimensions: 40,7x20,5x39.0 mm /1.60x0.81x1.54 in
• weight: 81.0g (2.93 oz)
• connector wire length: jr 300 mm
