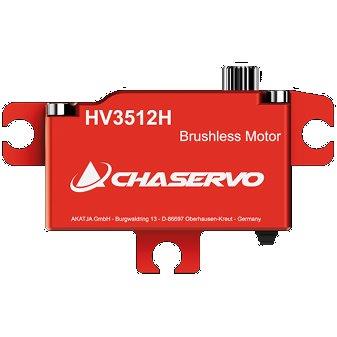

CHASERVO HV3512H

Brand: Chaservo
Dimensions: 1.59 in x 0.79 in x 0.91 in (40.5 x 20 x 23.1 mm)
Weight: 1.98 oz (56 g)
Rated Voltage: DC 7.4V
Voltage Range: DC 4.0 – 9.0V
Output Shaft Spline: 25T, 0.236 in (6 mm)
Holding Torque @ 6.0V: 416.62 oz•in (30.0 kg•cm)
Holding Torque @ 7.4V: 486.05 oz•in (35.0 kg•cm)
Holding Torque @ 8.4V: 555.49 oz•in (40.0 kg•cm)
Output Torque @ 6.0V: 370.79 oz•in (26.7 kg•cm)
Output Torque @ 7.4V: 30.2 kg•cm
Output Torque @ 8.4V: 486.05 oz•in (35.0 kg•cm)
No-load Speed @ 6.0V: 0.14sec/60°
No-load Speed @ 7.4V: 0.12sec/60°
No-load Speed @ 8.4V: 0.11sec/60°
max. Current @ 6.0V: 4.0 A
max. Current @ 7.4V: 4.8 A
max. Current @ 8.4V: 5.8 A
Case Material: Aluminium
Gear Set Material: Metal gears
Ball Bearing: 2 x Ball Bearing
Position sensor: Potentiometer
Motor: 4 Pole Brushless
Working Frequency: 1520µs/333Hz
Pulse Range: 500 μs – 2500 μs
Programmable: Yes
