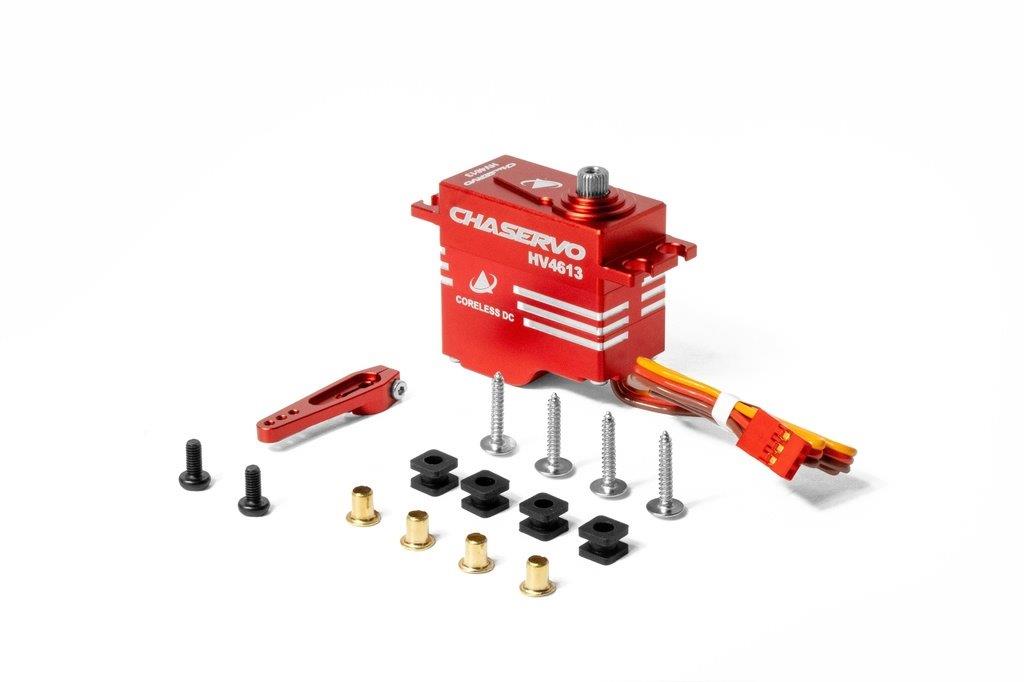

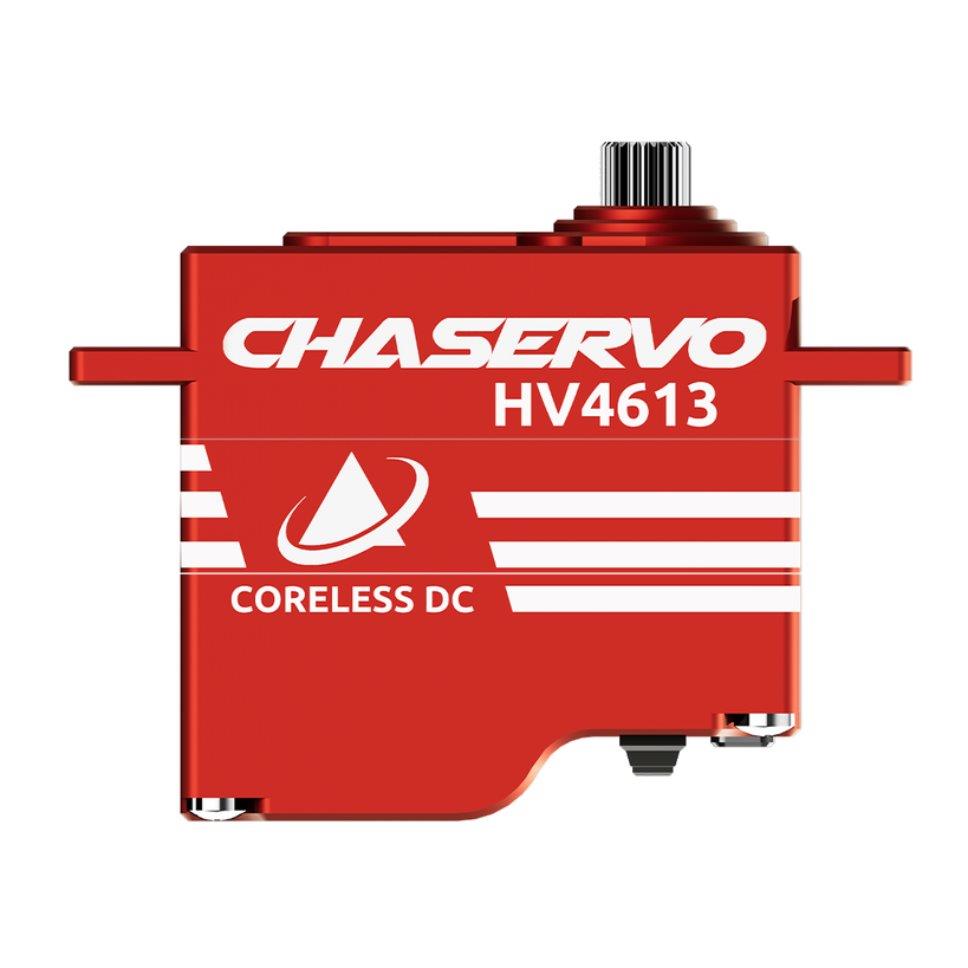

CHASERVO HV4613

Brand: Chaservo
Weight: 81g
Dimensions: 40.5 x 20 x 40 mm
Rated Voltage: DC 7.4V
Voltage Range: DC 4.8 – 8.4V
Output Shaft Spline: 25T, 0.236 in (6 mm)
Holding Torque @ 4.8V: 32 kg•cm
Holding Torque @ 6.0V: 555.49 oz•in (40.0 kg•cm)
Holding Torque @ 7.4V: 46 kg•cm
Holding Torque @ 8.4V: 50 kg•cm
Output Torque @ 4.8V: 20 kg•cm
Output Torque @ 6.0V: 25 kg•cm
Output Torque @ 7.4V: 30 kg•cm
Output Torque @ 8.4V: 33 kg•cm
No-load Speed @ 4.8V: 0.20sec/60°
No-load Speed @ 6.0V: 0.16sec/60°
No-load Speed @ 7.4V: 0.13sec/60°
No-load Speed @ 8.4V: 0.12sec/60°
max. Current @ 6.0V: 4.85 A
max. Current @ 7.4V: 5.62 A
max. Current @ 8.4V: 6.45 A
Case Material: Aluminium
Gear Set Material: Metal gears
Ball Bearing: 2 x Ball Bearing
Position sensor: Potentiometer
Motor: Coreless DC
Working Frequency: 1520µs/333Hz
Pulse Range: 500 μs – 2500 μs
Programmable: Yes
