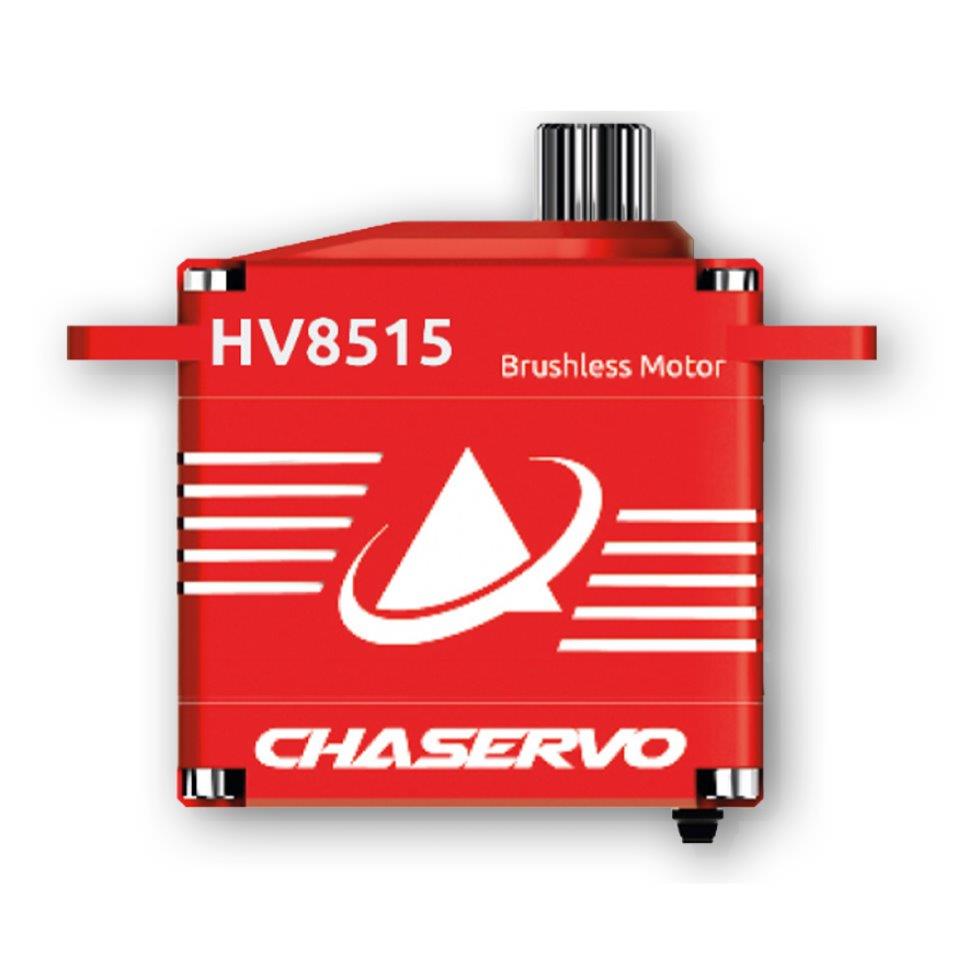

CHASERVO HV8515

Dimensions: 1.57 x 0.78 x 1.57 in (40 x 20 x 40 mm)
Weight: 87g
Rated Voltage: DC 7.4V
Voltage Range: DC 6.0 – 8.4V
Output Shaft Spline: 25T, 0.315 in (8 mm)
Holding Torque @ 6.0V: 75 kg•cm
Holding Torque @ 7.4V: 85 kg•cm
Holding Torque @ 8.4V: 88 kg•cm
Output Torque @ 6.0V: 38 kg•cm
Output Torque @ 7.4V: 43 kg•cm
Output Torque @ 8.4V: 45 kg•cm
No-load Speed @ 6.0V: 0,18 sec/60°
No-load Speed @ 7.4V: 0,15 sec/60°
No-load Speed @ 8.4V: 0,13 sec/60°
max. Current @ 6.0V: 7,5 A
max. Current @ 7.4V: 8,85 A
max. Current @ 8.4V: 10,15 A
Case Material: Aluminium
Gear Set Material: Metal gears
Position sensor: Contactless / Hall sensor
Motor: 4 Pole Brushless
Ball Bearing: 6 x Ball Bearing
Working Frequency: 1520µs/333Hz
Pulse Range: 500 μs – 2500 μs
Programmable: Yes
