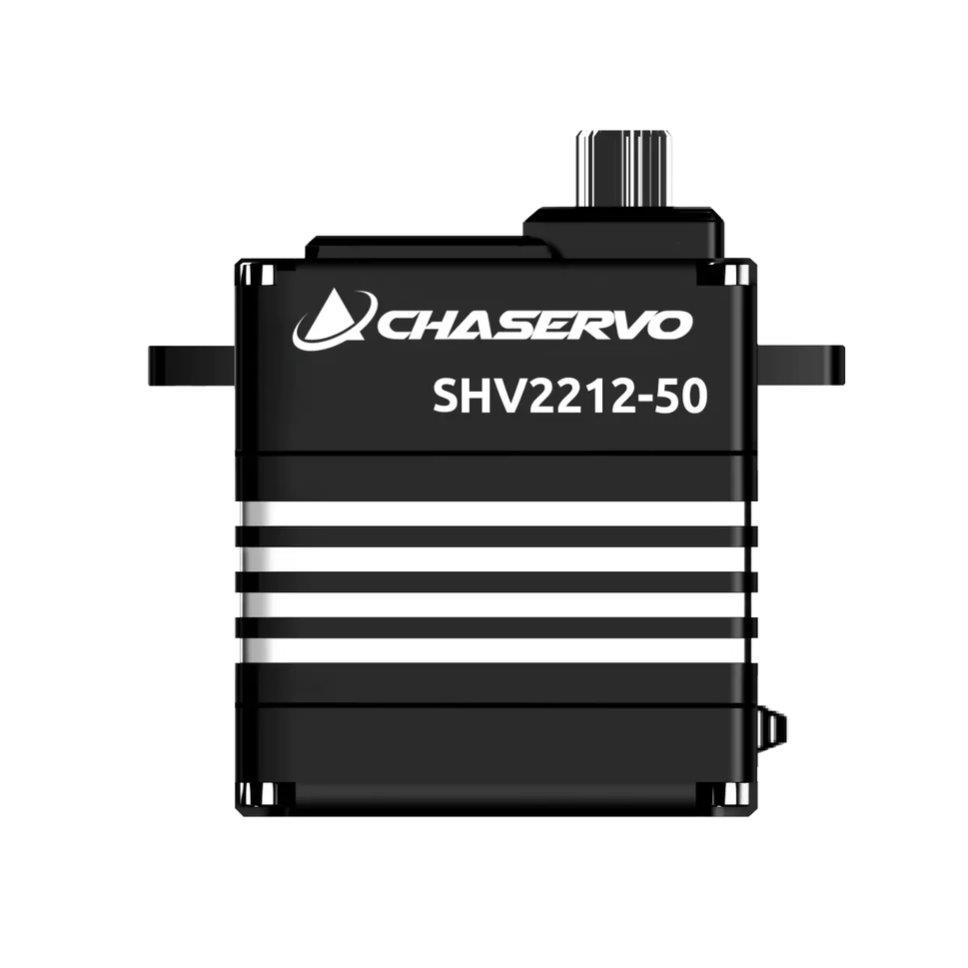

CHASERVO SHV2212-50

Dimensions: 45 x 22 x 52 mm
Weight: 128 g
Output Shaft Spline: 25T, 0.315 in (8 mm)
Rated Voltage: DC 12V
Voltage Range: DC 8,4V - 13,0V
Holding Torque @ 8.4V: 833.24 oz•in (60.0 kg•cm)
Holding Torque @ 12V: 75.0 kg•cm
Holding Torque @ 13V: 82.0 kg•cm
No-load Speed @ 8.4V: 0,20 sec/60°
No-load Speed @ 12V: 0,15 sec/60°
No-load Speed @13V: 0,13 sec/60°
max. Current @ 8.4V: 3.50 A
max. Current @ 12V: 4.25 A
max. Current @ 13V: 5.05 A
Case Material: Aluminium
Gear Set Material: Hardened Steel
Ball Bearing: 6 x Ball Bearing
Position sensor: Contactless / Hall sensor
Motor: 4 Pole Brushless
Working Frequency: 1520µs/333Hz
Pulse Range: 500 μs – 2500 μs
Programmable: Yes
