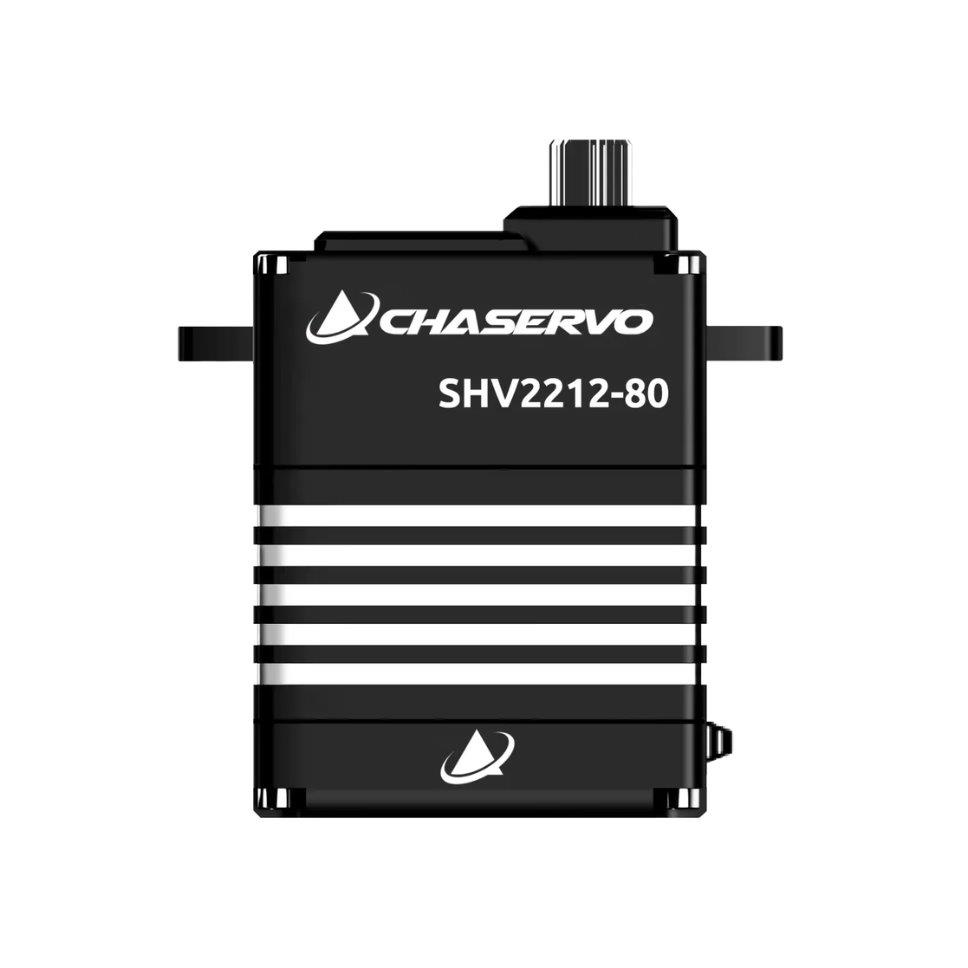

CHASERVO SHV2212-80

Dimensions: 45 x 22 x 60 mm
Weight: 145 g
Output Shaft Spline: 25T, 0.315 in (8 mm)
Rated Voltage: DC 12V
Voltage Range: DC 8,4V - 13,0V
Holding Torque @ 8.4V: 90 kg•cm
Holding Torque @ 12V: 120 kg•cm
Holding Torque @ 13V: 130 kg•cm
No-load Speed @ 8.4V: 0,26 sec/60°
No-load Speed @ 12V: 0,19 sec/60°
No-load Speed @13V: 0,17 sec/60°
max. Current @ 8.4V: 4,5 A
max. Current @ 12V: 7,25 A
max. Current @ 13V: 7,65 A
Case Material: Aluminium
Gear Set Material: Hardened Steel
Ball Bearing: 6 x Ball Bearing
Position sensor: Contactless / Hall sensor
Motor: 4 Pole Brushless
Working Frequency: 1520µs/333Hz
Pulse Range: 500 μs – 2500 μs
Programmable: Yes
