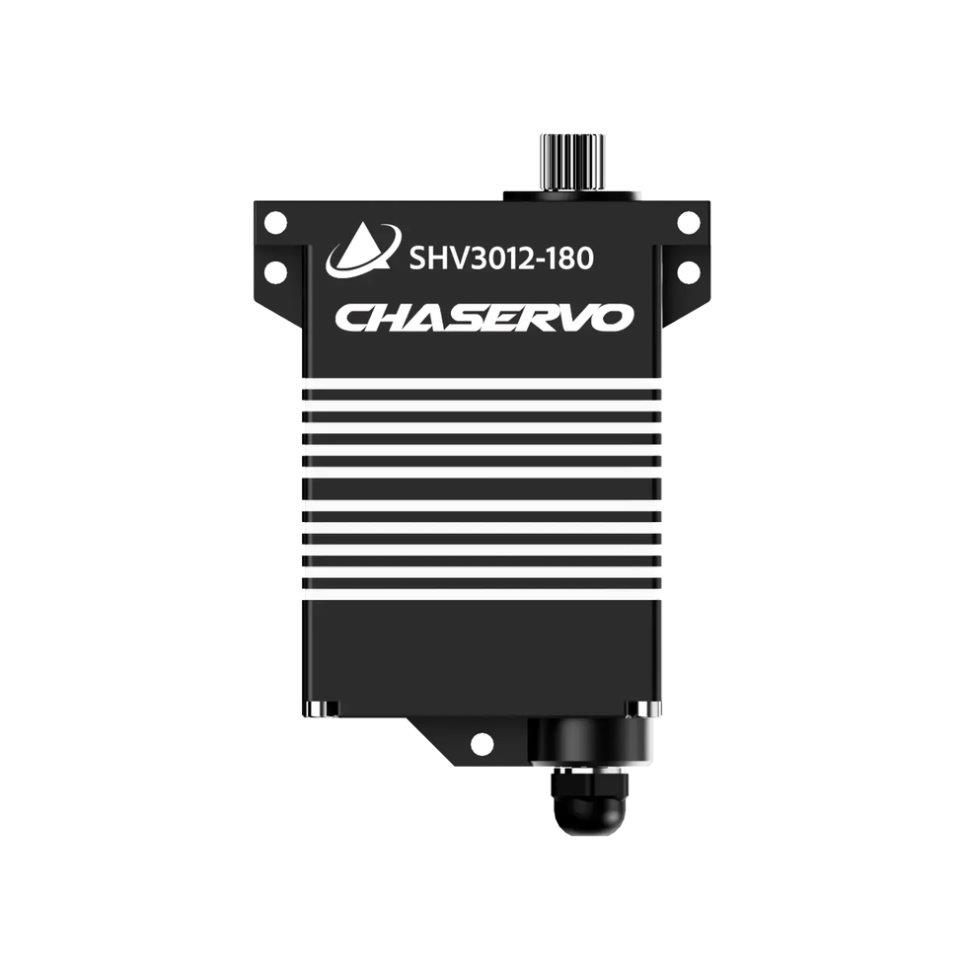

CHASERVO SHV3012-180

Dimensions: 65 x 30 x 95mm
Weight: 480g
Output Shaft Spline: 25T, 12mm
Rated Voltage: DC 12V
Voltage Range: DC 8,4V - 13,0V
Holding Torque @ 8.4V: 210 kg•cm
Holding Torque @ 12V: 270 kg•cm
Holding Torque @ 13V: 280 kg•cm
No-load Speed @ 8.4V: 0,3 sec/60°
No-load Speed @ 12V: 0,2 sec/60°
No-load Speed @13V: 0,19 sec/60°
max. Current @ 8.4V: 6,8 A
max. Current @ 12V: 8,85 A
max. Current @ 13V: 9,8 A
Case Material: Aluminium
Gear Set Material: Hardened Steel
Ball Bearing: 6 x Ball Bearing
Position sensor: Contactless / Hall sensor
Motor: 4 Pole Brushless
Working Frequency: 1520µs/333Hz
Pulse Range: 500 μs – 2500 μs
Programmable: Yes
