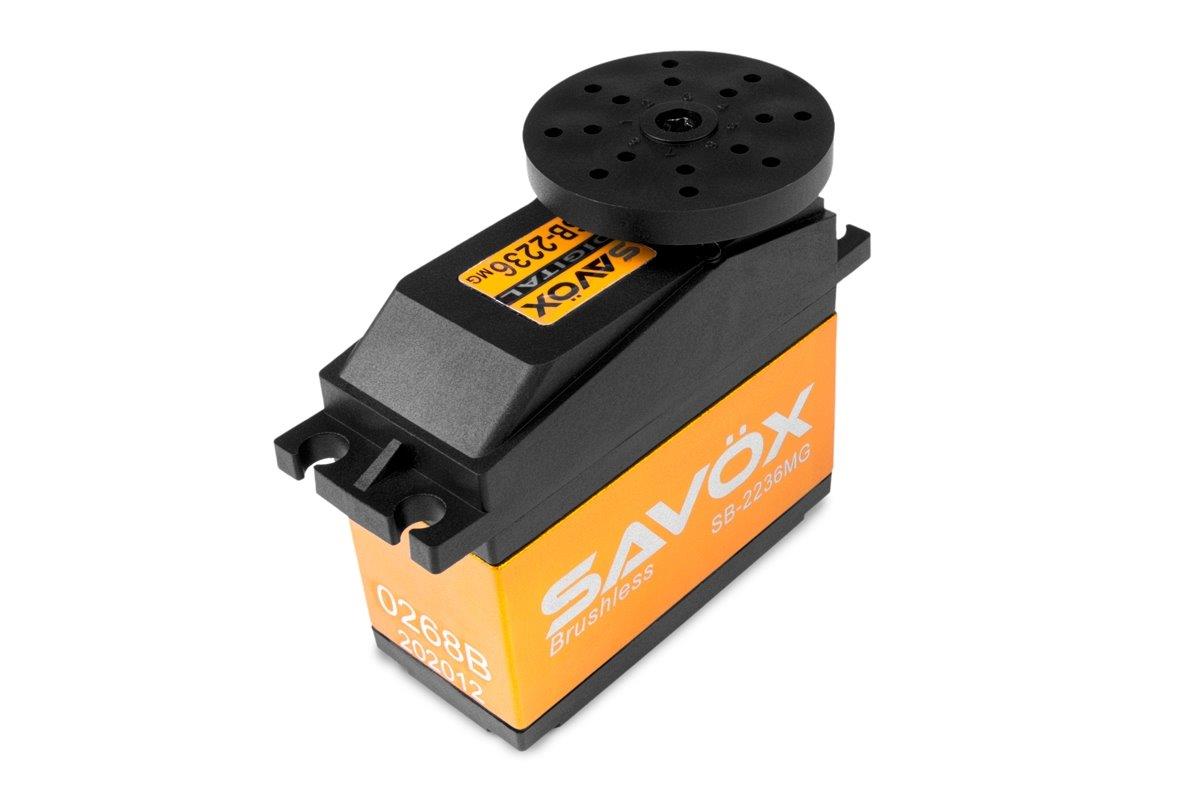

SB-2236MG BRUSHLESS HiVOLT Digital servo (40kg-0,13s/60°)
1 098,75 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: 1SV2530G
The SB-2236MG is a large scale, and Digital Bruschless servo. It is metal-geared with an amazing amount of torque while capable of operating on high voltage.
Features:
Ideal for 1/5 scale off road and large scale aircraft applications
Strong metal gear train for added durability.
Extremely high torque output.
Capable of operating on high voltage.
Specifications:
Torque @6v - 35.0kg
Torque @7.4v - 40.0kg
Speed @6v - 0.16 sec/60 deg
Speed @7.4v - 0.13 sec/60 deg

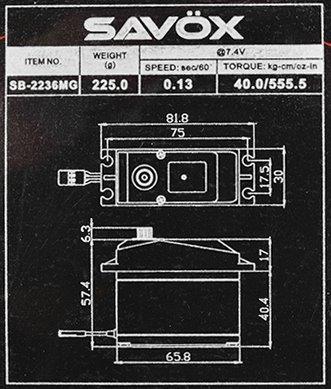

Dimensions L x W x H (mm): 65.8 x 30.0 x 57.4
Weight: 225.0g
Technical Details
Operating Temperature: (-10° - 50°C)
Running Current (no load): 150mA @6.0V, 180mA @7.4V
Stall Current (at locked): 4600mA @6.0V, 5700mA @7.4V
Idle Current: 5mA @4.8V, 5mA @6.0V
Wire Length: 200 ± 5mm
Output Gear Spline: 15 Tooth
Bearings: 2BB
Operating Travel: 100° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 800 → 2200 µ second
Maximum Travel: Appx 130° (900 → 2100 µ second)
Refresh Rate: 240 Hz
Motor Type: Brusless
