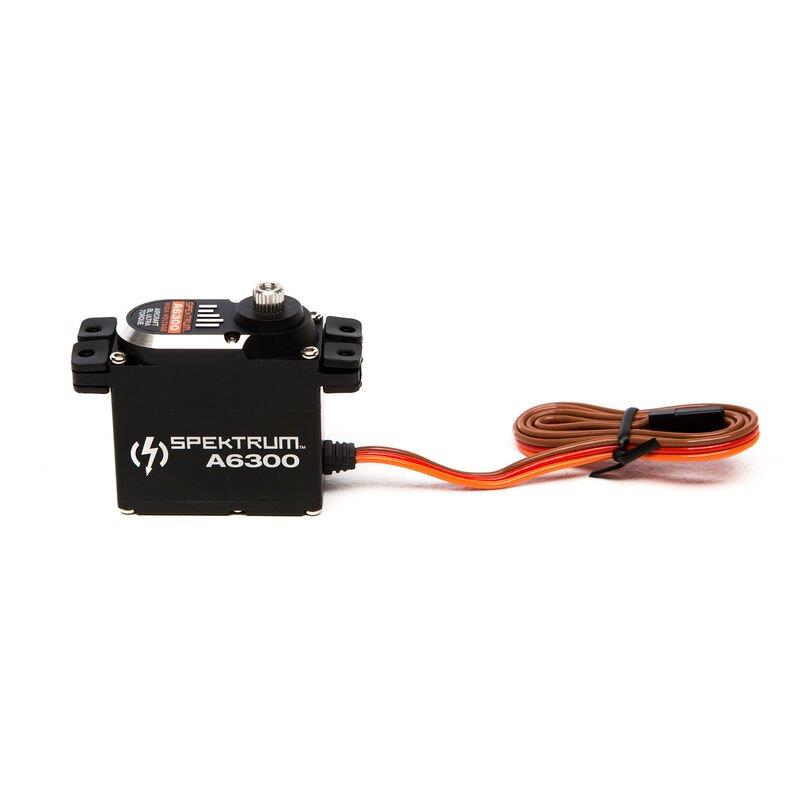

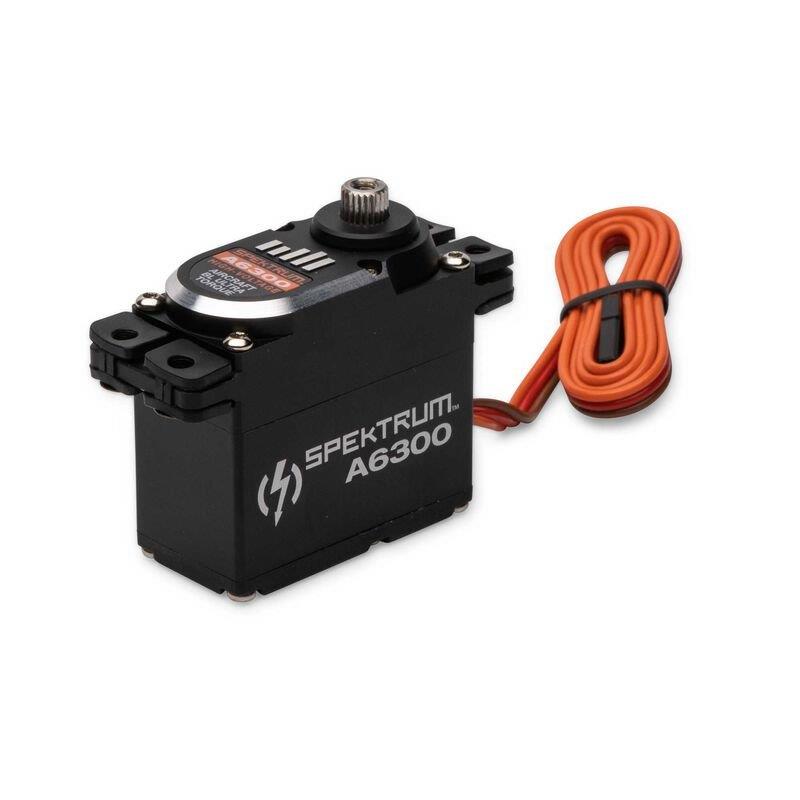

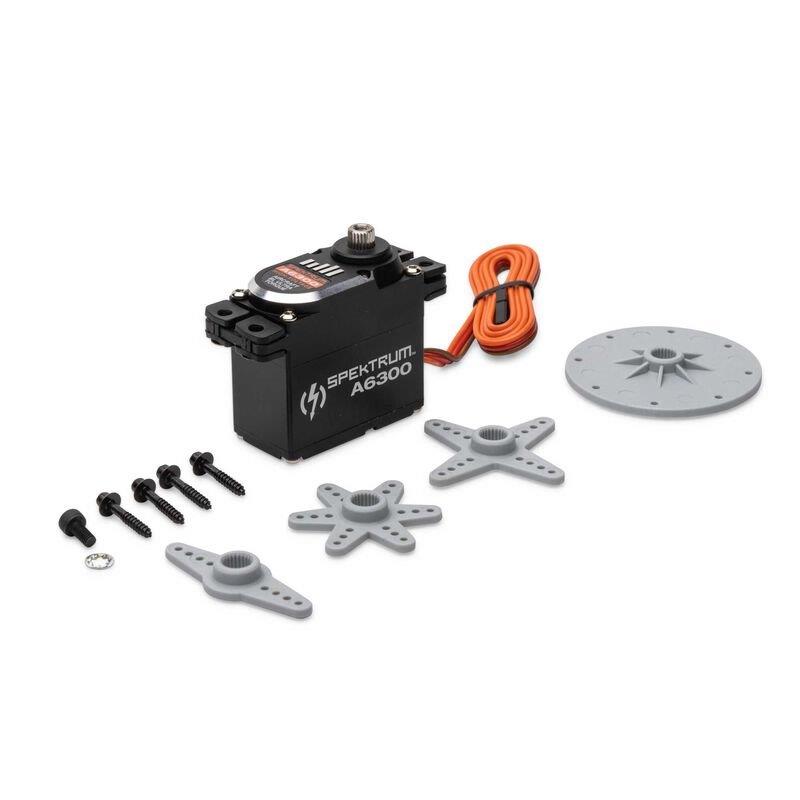

Spektrum A6300 Standard Digital HV Ultra Torque Brushless MG Aircraft Servo
2 219 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: SPMSA6300
Product Details
Key Features
High Voltage (HV) capable (6.0-8.4v input range)
Outstanding torque and speed in a standard servo size (530 oz-in and .10 sec/60° @8.4v)
Durable and long lasting brushless motor
Low wear and tightly meshed all metal gear train
Dual bearing supported drive train helps maximize smooth operation
Aluminum servo case helps keep operating temperatures low
Soft start helps prevent component and airframe damage during un-intentional initializations
Over Current and Temperature protection
Helpful initialization start tone lets pilot know when the servo is ready
Integrated servo failsafe holds last known position if signal is lost and power is maintained
Frequency : 200hz to 333hz
Overview
The A6300 is the first in an evolving line of Spektrum brushless servos that provide leading edge performance with uncompromised reliability. Boasting an extremely powerful 530 oz-in torque and a lightning fast .10 sec/60° transit time @8.4v, the A6300 will make RC enthusiasts take a second look at Spektrum Servos.
The A6300 features a top of the line brushless drive train that is recognized as being exceptionally strong and reliable. This durability is expertly matched with a low wear, all metal gear train that is virtually slop free. All housed in a heatsinking, all-aluminum case with preinstalled eyelets and grommets, which makes mounting these servos quick and easy.
The Spektrum A6300 uses these features as a foundation to produce a powerful, consistent, yet efficient servo that will prove to be in a class of its own. It is these awesome capabilities that make the A6300 a fantastic choice for giant-scale models, 3D aerobatics, jets or any application where massive amounts of torques and holding power are a must.
Product Specifications:
Application: Airplane
Bearing: Dual Ball Bearing
Bushing Or Bearing: Bearing
Connector Type: Universal
Connector Wire Length: 18" (457 mm)
Deadband: 2µs, 3µs
Gear Type: Metal
Input Voltage: 6.0-8.4V
Maximum Servo Speed: 0.14 sec/60 deg @ 6.0V; 0.11 sec/60 deg @7.4V; 0.10 sec/60 deg @ 8.4V
Maximum Servo Torque: 378.37 oz-in (27.26 kg-cm) @ 6.0V; 467.06 oz-in (33.65 kg-cm) @ 7.4V; 530.22 oz-in (38.20 kg-cm) @ 8.4V
Motor Type: Brushless
Product Application: Air
Product Height: 1.49" (38 mm)
Product Length: 1.57" (40 mm)
Product Weight: 2.81oz (79.80g)
Product Width: 0.79" (20 mm)
Programmable: No
Servo Operating Voltage: 6.0 - 8.4V (HV)
Servo Size Category: Standard
Servo Type: Digital
Spline Count: 23 - Tooth
Water-Resistant: No
Wire Gauge: 22 AWG
